2008 Jeep Grand Cherokee 4.7L PCM and ECM Replacement Guide
The Engine Control Module (ECM) and Powertrain Control Module (PCM) in the 2008 Jeep Grand Cherokee 4.7L manage fuel delivery, ignition timing, and emissions. Failure can cause stalling, poor performance, or MIL illumination. The ECM sits under the battery; the PCM is on the right inner fender.
Quick Summary
- ECM is located under the battery on the left side of the engine compartment.
- PCM is attached to the right-front inner fender in the engine compartment.
- Replacement book time is 0.4 hours for R&R plus 0.5 hours for a relearn procedure.
- A new ECM must be programmed per factory instructions after installation.
- Documented trouble codes for this vehicle include P0601 and P0606.
If you own a 2008 Jeep Grand Cherokee with the 4.7L engine, you may eventually face issues with the Engine Control Module (ECM) or Powertrain Control Module (PCM). These two electronic modules are the brains of your vehicle’s engine and transmission management. The ECM controls fuel injection, ignition timing, and emissions, while the PCM integrates transmission shift logic with engine output. When either module fails, you can experience a range of drivability problems, from a no-start condition to erratic shifting or a check engine light. This guide will help you understand where these modules are located, what symptoms to watch for, how replacement is performed, and why choosing a pre-programmed unit can save you time and money. We will also cover the factory service bulletins and trouble codes specific to your Grand Cherokee, so you can make an informed decision about repair or replacement.
What the PCM Does in a 2008 Jeep Grand Cherokee
The 2008 Jeep Grand Cherokee 4.7L uses two separate control modules: the Engine Control Module (ECM) and the Powertrain Control Module (PCM). The ECM is dedicated to engine functions such as air-fuel ratio, spark timing, and idle speed. The PCM handles broader powertrain coordination, including transmission shift points, torque converter lockup, and communication with other modules like the anti-lock brake system. In this vehicle, the ECM is located under the battery on the left side of the engine compartment, while the PCM is attached to the right-front inner fender. Both modules are critical for proper operation. If you need to replace either one, you will want a unit that is ready to install. That is where replacement engine computers for the Grand Cherokee come in. A pre-programmed module eliminates the need for a dealer visit to perform the mandatory VIN and immobilizer programming. The 4.7L engine relies on precise control from these modules; a failure can lead to poor fuel economy, misfires, or a no-start condition. Understanding what each module does helps you diagnose problems accurately and choose the right replacement.
Where the PCM Is Located and What Replacement Involves

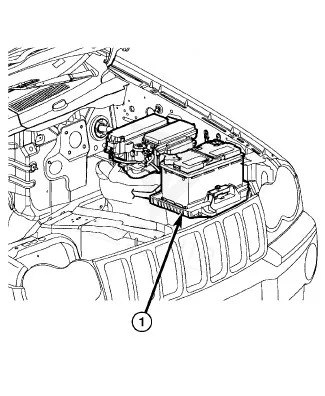

The ECM in the 2008 Jeep Grand Cherokee 4.7L is located under the battery on the left side of the engine compartment. To access it, you must first remove the battery and battery tray. The PCM is attached to the right-front inner fender, also in the engine compartment, and is more easily accessible. According to factory labor times, replacing either module takes 0.4 hours for removal and installation, plus an additional 0.5 hours for a relearn procedure. The relearn is necessary to synchronize the module with the vehicle’s security system and transmission adaptations. When replacing the ECM, be careful to disconnect the battery negative cable first and avoid damaging the connector pins. The PCM replacement is straightforward but may require removing a splash shield for access. Always use a scan tool to perform the relearn after installation.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After installing a new ECM in the 2008 Jeep Grand Cherokee 4.7L, the factory procedure requires programming the module. This involves using a scan tool to write the VIN, configure the vehicle options, and perform an immobilizer learn sequence. The service manual directs you to refer to the battery installation procedure and the standard programming steps for the ECM. This process can be time-consuming and often requires a trip to the dealership. However, when you purchase a VIN-programmed replacement unit from Flagship One, those steps are already completed. The module arrives ready to install, with the VIN and security data pre-loaded. You still need to perform the relearn procedure (0.5 hours book time) to adapt the module to your specific vehicle, but the major programming hurdle is eliminated. This saves you the cost and inconvenience of a dealer visit.
Symptoms of a Failing PCM
A failing ECM or PCM in the 2008 Jeep Grand Cherokee 4.7L can produce a variety of symptoms. The most common include a no-start condition where the engine cranks but does not fire, intermittent stalling, rough idle, or a sudden loss of power while driving. You may also notice transmission shifting problems, such as harsh shifts or failure to shift, because the PCM controls shift solenoids. The check engine light may illuminate with codes like anchor textP0601 internal control module fault, which indicates a problem within the ECM itself. Another documented code is P0606, which points to a PCM internal processor error. These codes often appear alongside other drivability issues. In some cases, a scan tool may fail to communicate with the module, confirming a hardware failure. If you experience any of these symptoms, especially if multiple codes appear, the module is likely faulty and needs replacement.
Module Trouble Codes on the 2008 Jeep Grand Cherokee
The following trouble codes are documented for the 2008 Jeep Grand Cherokee 4.7L and indicate internal module failures. These codes are stored in the ECM or PCM memory and can be retrieved with a scan tool.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Several factory service bulletins apply to the 2008 Jeep Grand Cherokee 4.7L. Bulletin #24-002-09 Rev. A addresses a condition where the temperature increase is too large when the TEMP knob is moved one or two detents from full cold. The fix involves replacing the ATC control and then performing an actuator calibration using a scan tool. Bulletin #18-003-12 covers a flash update for MIL illumination with codes P050d or P2181. Bulletin #08-013-08 Rev. A provides a flash update for premature oil change monitor alerts. While these bulletins do not directly involve ECM/PCM replacement, they highlight the importance of keeping the vehicle’s software current and addressing related control module issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-002-09 Rev. A | 24-002-09 Rev. A Flash – Too Large Of A Temperature Increase When the TEMP Knob Is Moved One or | ing > Controls > Control, A/C and Heater > replace the ATC control. After performing control replacement, initiate the Actuator Calibration function using the… |
| 18-003-12 | 18-003-12 Flash: MIL Illumination P050d or P2181 Is Set | — |
| 08-013-08 Rev. A | 08-013-08 Rev. A Flash: Oil Change Monitor Alerts Prematurely | — |
Protecting the PCM in Your 2008 Jeep Grand Cherokee
- Maintain a healthy charging system; test the battery and alternator regularly to avoid voltage spikes that can damage the ECM or PCM.
- Keep all ground connections and module connectors clean and tight; corrosion can cause intermittent faults.
- Avoid jump-starting the vehicle with a running donor car; use a battery pack or follow the manual’s jump-start procedure to prevent voltage surges.
- Address any check engine light or drivability codes promptly; ignoring them can lead to module failure.
- Inspect the connector seals on the ECM and PCM for cracks or damage; moisture intrusion is a common cause of failure.
- When working under the hood, be careful not to short-circuit terminals or apply power to the wrong pins.
Frequently Asked Questions
What are the symptoms of a failing ECM in a 2008 Jeep Grand Cherokee 4.7L?
Common symptoms include a no-start condition, stalling, rough idle, poor acceleration, and the check engine light illuminating with codes like P0601 or P0606. You may also notice transmission shifting issues because the PCM coordinates with the ECM.
Where is the PCM located on a 2008 Jeep Grand Cherokee 4.7L?
The PCM is attached to the right-front inner fender in the engine compartment. It is more accessible than the ECM, which is under the battery on the left side. Both modules are in the engine bay.
Do I need to program a new ECM for my 2008 Jeep Grand Cherokee 4.7L?
Yes, the factory requires that a new ECM be programmed with the VIN and vehicle configuration, and an immobilizer learn must be performed. This typically requires a dealer scan tool. However, a pre-programmed unit from Flagship One arrives with that programming already done.
What do trouble codes P0601 and P0606 mean for my 2008 Jeep Grand Cherokee?
P0601 indicates an internal control module fault in the ECM, often a memory or checksum error. P0606 points to a PCM internal processor fault. Both codes suggest the module is failing and may need replacement.
Are there any service bulletins for the 2008 Jeep Grand Cherokee 4.7L that relate to the ECM or PCM?
The bulletins provided cover HVAC control replacement (24-002-09 Rev. A), MIL illumination for P050d/P2181 (18-003-12), and premature oil change monitor alerts (08-013-08 Rev. A). While not directly ECM/PCM, they involve software updates that may affect module performance.
When your 2008 Jeep Grand Cherokee 4.7L needs a new ECM or PCM, you have two main options: repair the existing module or replace it with a refurbished unit. Repair is sometimes possible for minor issues, but internal failures often require a replacement. A refurbished module that is pre-programmed to your VIN saves the time and expense of a dealer visit. Flagship One offers such units, tested and ready to install, so you can get your Grand Cherokee back on the road quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Jeep Grand Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Grand Cherokee module lineup covers other engine configurations as well.
Final Thoughts
The 2008 Jeep Grand Cherokee 4.7L relies on its ECM and PCM for reliable operation. Understanding their location, symptoms of failure, and the importance of proper programming helps you make the right repair decision. Whether you choose a repair or a replacement, ensure the module is correctly configured. Flagship One provides pre-programmed units that simplify the process and get you back on the road.
