2006 Chrysler 300 PCM and ECM Overview
In the 2006 Chrysler 300 the Powertrain Control Module manages engine timing, fuel delivery and transmission shift logic. A malfunction can interrupt these commands, leading to loss of power, erratic shifting, or complete engine shutdown.
Quick Summary
- PCM controls engine and transmission functions in the 2006 Chrysler 300.
- Typical failure produces no‑start, stalling, or shift‑related codes.
- Factory service bulletins #08-030-06 Rev. A and Rc-F47-07 address PCM initialization and emissions recall.
- Replacement labor is under one hour for both removal and relearn procedures.
When a 2006 Chrysler 300 exhibits intermittent power loss or unexpected gear changes, the Powertrain Control Module often warrants attention. This guide explains what the PCM does, where it lives, and what steps are required after a replacement. By understanding the module’s role and the factory procedures, you can gauge the scope of a repair and decide whether a refurbished unit meets your needs.
What the PCM Does in a 2006 Chrysler 300
The Powertrain Control Module in the 2006 Chrysler 300 acts as the central computer for engine and transmission coordination, processing sensor data to adjust fuel, spark and gear shifts. Its reliability is essential for smooth operation, and any loss of communication can trigger drivability problems. Replacement units for this model are typically sourced as 2006 Chrysler 300 PCM that match the original specifications and software version.

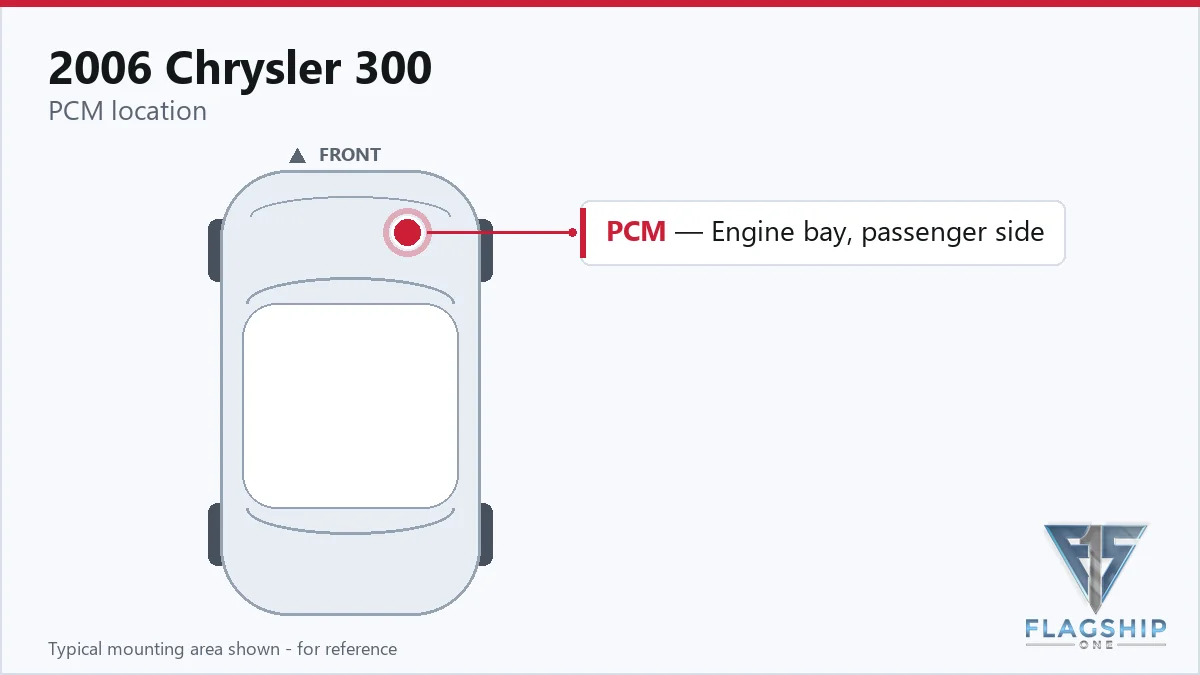

Where the PCM Is Located and What Replacement Involves
The PCM is mounted in the engine compartment, identified in the electrical section under 8e – Electronic Control Modules. Removal generally takes about 0.4 hours, while reinstall and a relearn procedure add another 0.5 hours. Access involves disconnecting the battery, unplugging the module connector, and unbolting the unit before positioning the new PCM and securing it per the same steps in reverse.
How to Reach the PCM on the 2006 Chrysler 300
- Disconnect and isolate the.
- Remove the cowl panel cover.
- Disconnect the electrical.
- Remove the two bolts that.
- Remove the ECM and bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory process requires a Powertrain Control Module Relearn that typically takes 0.5 hours, followed by a similar relearn for the Engine Control Module. Flagship One units arrive as a VIN-programmed replacement unit so those programming steps are already completed, eliminating the need for additional on‑site coding.
Symptoms of a Failing PCM
A common indication of PCM trouble in a 2006 Chrysler 300 includes a no‑start condition, rough idle, or unexpected transmission shifts. Diagnostic scans may reveal internal control processor fault or related codes, confirming that the module is not communicating properly with the vehicle’s systems.
Module Trouble Codes on the 2006 Chrysler 300
The following internal trouble codes are documented for the 2006 Chrysler 300 PCM and may appear during diagnosis.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #08-030-06 Rev. A outlines the Powertrain Control Module Initialization procedure, while Rc-F47-07 addresses an emissions recall that involves catalytic converter replacement and PCM reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | Electrical • 08-030-06 Rev. A Powertrain Control Module Initialization | — |
| — | Rc-F47-07 Emissions Recall F47 – Catalytic Converter and Reprogram PCM | — |
Protecting the PCM in Your 2006 Chrysler 300
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all PCM ground connections regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any diagnostic codes promptly to prevent further damage.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
Can a failing PCM cause my 2006 Chrysler 300 to stall while driving?
Yes, because the PCM controls fuel and ignition timing, a fault can lead to sudden stalling or loss of power.
Do I need special tools to replace the PCM on a 2006 Chrysler 300?
Standard hand tools and a scan tool for verification are sufficient; the module is bolted and connectorized.
Will a refurbished PCM affect my vehicle’s warranty?
A properly refurbished unit that meets factory specifications typically does not void the vehicle’s warranty, but you should confirm with your dealer.
When the PCM in your 2006 Chrysler 300 needs attention, you can choose a professional repair that includes removal, installation and the required relearn steps, or opt for a refurbished replacement that arrives pre‑programmed. Both paths restore the vehicle’s control functions, but a refurbished unit may reduce shop time while still meeting OEM standards.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Chrysler 300 with a lifetime warranty, free shipping and no core charge. The full Chrysler 300 module lineup covers other engine configurations as well.
Final Thoughts
Understanding the PCM’s role in your 2006 Chrysler 300 helps you make an informed decision about repair or replacement. Consider your options and ensure the module is correctly installed and calibrated for reliable performance.
