2005 Toyota 4Runner 4.0L PCM ECM Replacement and Diagnostics

When your 2005 Toyota 4Runner 4.0L begins showing signs of engine computer trouble, the situation can feel overwhelming. The powertrain control module sits at the heart of your vehicle’s fuel, ignition, and transmission management systems, and when it malfunctions, the effects often ripple through everyday drivability. You might notice rough idle, unexpected stalling, or a dashboard full of warning indicators that refuse to clear even after other repairs. Understanding what this module does, where it lives in your 4Runner, and what happens during replacement helps you make informed decisions about repair options. This guide walks through the role of the engine computer in your specific vehicle, the labor time a technician typically books for removal and relearn procedures, and the symptoms that often point to module failure rather than a simpler sensor or wiring issue. Whether you are troubleshooting a persistent check engine light or planning a module swap, having the right information about your 4Runner’s PCM and ECM helps you avoid unnecessary repairs and get back on the road with confidence.

What the PCM Does in a 2005 Toyota 4Runner

In the 2005 Toyota 4Runner 4.0L, the powertrain control module functions as the central processor that orchestrates nearly every engine and transmission function your vehicle relies on. This computer continuously reads input from sensors monitoring throttle position, coolant temperature, mass airflow, oxygen content in the exhaust stream, and crankshaft rotation speed. Using that data, it adjusts fuel injector pulse width, ignition timing advance, and idle air control positioning to keep the 4.0L V6 running efficiently across all driving conditions. The module also communicates with the transmission control system to manage shift points and torque converter lockup, ensuring smooth gear transitions under varying loads. When you choose replacement engine computers for the 4Runner, you are addressing a component that, when healthy, maintains precise control over emissions, fuel economy, and overall performance. A failing PCM may store internal memory faults, lose the ability to communicate with diagnostic scan tools, or send corrupted signals to actuators. In some cases, the module may still operate but with degraded performance, causing intermittent drivability problems that are difficult to isolate. Because this computer integrates so many subsystems, a single internal fault can produce a cascade of seemingly unrelated symptoms, making accurate diagnosis essential before replacing any parts. The 4.0L engine in your 4Runner depends on this module for proper cold-start enrichment, warm-up idle quality, and highway-speed fuel trim correction.

Where the PCM Is Located and What Replacement Involves

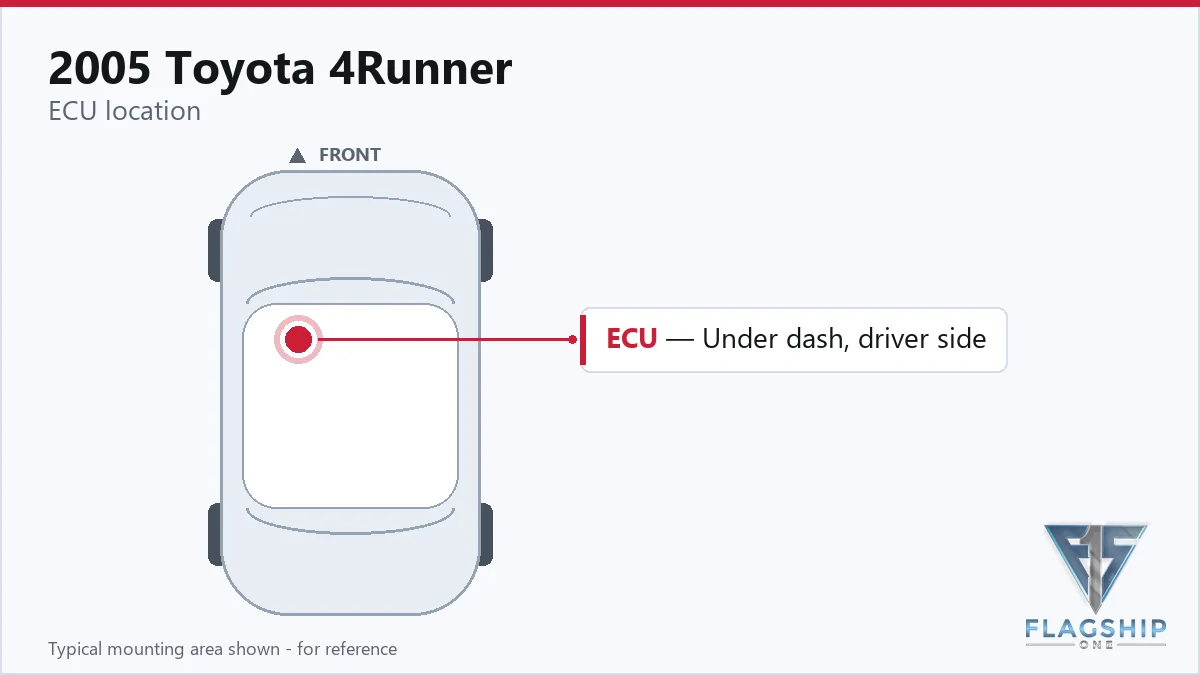

The factory wiring guide for the 2005 Toyota 4Runner places the engine ECU within the instrument panel area. Accessing the module typically requires working behind or beneath the dashboard on the driver’s side, where the computer is secured to a mounting bracket. A technician usually begins by disconnecting the battery to protect both the module and the vehicle’s electrical system from voltage spikes during the swap. The factory book time for removing and replacing the engine control module is 0.5 hours, and the same 0.5-hour figure applies to powertrain control module removal and replacement. Once the old unit is out, the new module connects to the existing wiring harness, and the mounting hardware is reinstalled. After the physical installation is complete, a relearn procedure is necessary. The book time for the engine control module relearn is 0.5 hours, and the powertrain control module relearn also carries a 0.5-hour time allocation. These relearn steps allow the replacement module to synchronize with your 4Runner’s immobilizer, idle control, and transmission adaptive parameters.

Programming Requirements After Replacement

After installing a replacement engine computer in your 2005 Toyota 4Runner, the factory procedure requires a relearn process so the new module recognizes your vehicle’s immobilizer system and adapts to the existing sensor and actuator calibrations. This relearn typically involves a diagnostic tool communicating with the module to reset learned fuel trims, idle parameters, and transmission adaptives. The book time for this procedure is 0.5 hours for both the engine control module and the powertrain control module relearn. Without completing these steps, your 4Runner may exhibit unstable idle, poor throttle response, or a no-start condition related to immobilizer mismatch. When you install a VIN-programmed replacement unit from Flagship One, the critical programming work is already completed before the part ships. Your vehicle identification number is flashed into the module so it matches your 4Runner’s specific configuration, immobilizer codes, and factory calibration. This means the relearn procedure that a dealership would otherwise perform has already been addressed, allowing for a more straightforward installation and faster return to normal drivability.

Symptoms of a Failing PCM

When the powertrain control module in your 2005 Toyota 4Runner 4.0L begins to fail, several symptoms may surface that distinguish a computer problem from a simple sensor fault. One of the most common signs is a no-start condition where the engine cranks but never fires, often because the module has lost its ability to command fuel injectors or ignition coils. Intermittent stalling is another frequent complaint, particularly at idle or during deceleration, where the module may briefly drop its processor cycle and cut engine operation without warning. You may also experience misfire codes that appear across multiple cylinders simultaneously, which is unusual for a single ignition coil or spark plug failure and often points to a broader control issue. Dead scan-tool communication is a strong indicator of module failure; if your diagnostic tool cannot establish a link to the PCM, the module may have an internal processor fault or a corrupted communication circuit. Shifting problems can also emerge, including harsh or delayed gear changes, because the PCM governs transmission solenoid activation in the 4Runner. Additional warning signs include a check engine light that illuminates and stays illuminated despite no other mechanical faults being found, unexplained drops in fuel economy, and rough idle that persists after cleaning the throttle body and replacing common wear items like spark plugs and mass airflow sensors.

Protecting the PCM in Your 2005 Toyota 4Runner

• Keep your 4Runner’s charging system healthy; a weak alternator or aging battery can send voltage spikes that damage sensitive module circuitry.
• Inspect and clean ground connections periodically, as corroded or loose grounds can cause electrical noise that disrupts module operation.
• Avoid jump-starting the vehicle with a significantly different voltage source, which may introduce voltage surges into the PCM.
• Address check engine codes promptly rather than driving with stored faults, as unresolved issues can stress the module over time.
• Keep wiring harness connectors sealed and free of moisture; degraded connector seals allow corrosion that can short module pins.
• When performing any electrical repair near the dashboard, disconnect the battery first to protect the engine computer from accidental voltage spikes.

Frequently Asked Questions

Where is the PCM located in a 2005 Toyota 4Runner?

The factory wiring guide’s component grid places the engine ECU in the instrument panel area. A technician typically accesses it by working behind the dashboard, and the book time for removal and replacement is 0.5 hours.

Does the 2005 Toyota 4Runner PCM require programming after replacement?

Yes, the factory procedure includes a relearn step with a book time of 0.5 hours. This process synchronizes the new module with your vehicle’s immobilizer and adaptive parameters. Flagship One units arrive already VIN-programmed, which addresses the core programming requirement before installation.

What are common symptoms of a failing engine computer in the 4Runner 4.0L?

Typical signs include no-start conditions, intermittent stalling, misfire codes across multiple cylinders, loss of scan-tool communication, and harsh or delayed transmission shifting. A persistent check engine light with no other found mechanical faults may also indicate module trouble.

How long does it take to replace the PCM in a 2005 Toyota 4Runner?

The factory book time for removal and replacement is 0.5 hours, and the relearn procedure adds another 0.5 hours. Total shop time may vary depending on access conditions and whether any additional diagnostic work is needed.

Can I drive my 4Runner with a faulty engine control module?

Driving with a compromised PCM is not recommended. The module controls fuel delivery, ignition timing, and transmission behavior, so a failure can cause stalling in traffic or a complete no-start condition. Have the vehicle diagnosed promptly if symptoms appear.

When your 2005 Toyota 4Runner 4.0L shows signs of engine computer failure, you have options. A dealership may offer a new module paired with full programming services, but the cost and turnaround time can be significant. A refurbished, VIN-programmed unit from Flagship One provides a practical alternative that addresses the core programming requirement before the part arrives. Your 4Runner’s specific calibration and immobilizer data are flashed into the replacement, reducing the steps needed after installation and helping you return to normal driving sooner.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Toyota 4Runner with a lifetime warranty, free shipping and no core charge. The full Toyota 4Runner module lineup covers other engine configurations as well.

Final Thoughts

The 2005 Toyota 4Runner 4.0L depends on a healthy powertrain control module for proper fuel management, ignition timing, and transmission control. Understanding the module’s location in the instrument panel, the book time for replacement, and the relearn requirements helps you approach repairs with confidence. If your 4Runner is showing persistent drivability issues, a VIN-programmed replacement from Flagship One may be the solution you need.
