2005 Mazda MPV Powertrain and Engine Control Module Overview
In the 2005 Mazda MPV, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine speed, fuel delivery, and transmission shifting. Failure of either unit can trigger loss of power, erratic shifting, or diagnostic trouble codes that prevent normal operation.
Quick Summary
- PCM and ECM replacement times range from 0.4 to 0.5 hours depending on immobilizer presence.
- Both modules require a relearn procedure of 0.5 hours after installation.
- Factory service bulletins address TCM caution and O/D indicator flashing with code P0706.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2005 Mazda MPV begins to exhibit intermittent power loss, unexpected transmission behavior, or a flashing over‑drive indicator, the underlying cause often lies in the vehicle’s control computers. Understanding how the Powertrain Control Module and Engine Control Module operate in this model helps you decide whether a repair or a replacement is warranted. This guide explains the function of each module, where they are located, the labor involved in swapping them, and what programming steps are required after installation. By the end, you will know the typical symptoms, relevant service bulletins, and practical steps to protect these components, giving you confidence in managing any related issues.
What the PCM Does in a 2005 Mazda MPV
The Powertrain Control Module in the 2005 Mazda MPV acts as the brain for both engine and transmission functions. It processes sensor inputs, controls fuel injection, ignition timing, and coordinates shift points for the automatic transmission. The Engine Control Module focuses specifically on engine management, handling air‑fuel mixture, emissions controls, and idle stability. Both modules are essential for smooth acceleration and reliable gear changes, making them critical for overall drivability. replacement control modules for the 2005 Mazda MPV ensures that the vehicle maintains factory‑specified performance and emissions compliance.
What Replacing the PCM Involves

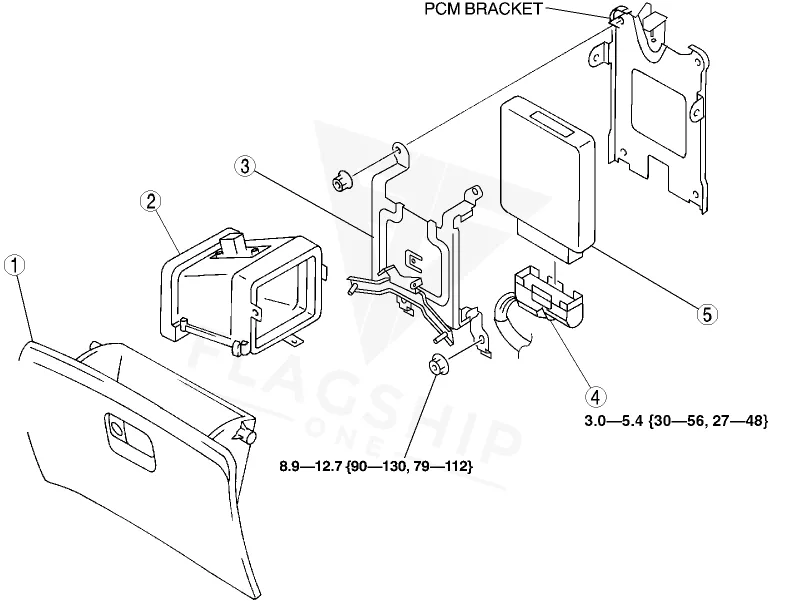

How to Reach the PCM on the 2005 Mazda MPV
- Disconnect the negative battery cable.
- Remove the TCM.
- Disconnect the front blower resistor connector.
- Remove the air duct stay fastener.
- Slide the air duct to the right.
- Remove the upper right side of the PCM panel installation nut located at the back of the blower.
- Remove four installation nuts, then pull the PCM panel down to remove from installation place.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Without Immobilize System | 0.4 hr |
| Powertrain Control Module R&R | With Immobilize System | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Without Immobilize System | 0.4 hr |
| Engine Control Module R&R | With Immobilize System | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After a PCM or ECM swap, the factory procedure calls for a relearn operation that takes about 0.5 hours. This step restores the module’s memory of idle settings, fuel trims, and transmission shift patterns. Flagship One supplies units that arrive VIN‑programmed, so the relearn process is already completed at the factory. a VIN‑programmed replacement unit eliminates the need for on‑site coding, reducing shop time and the chance of programming errors.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2005 Mazda MPV include a complete no‑start condition, rough idle, stalling during acceleration, and erratic shifting. Drivers may also notice the over‑drive indicator flashing or the malfunction indicator lamp illuminating. Diagnostic scans often reveal communication failures or specific fault codes such as over‑drive indicator fault, which point directly to the control module’s inability to manage transmission functions. These symptoms tend to appear gradually as the module’s internal circuitry degrades.
Factory Service Bulletins Worth Knowing
Service bulletin 05 004/05 alerts technicians to a caution when servicing the Transmission Control Module, while bulletin 05 001/05 documents an over‑drive indicator flash and MIL activation linked to code P0706. Both bulletins provide guidance to avoid inadvertent damage during diagnosis or repair.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 05 004/05 2005 Mpv Transmission Control Module (TCM) Service Caution | — |
| — | 05 001/05 2002 2005 Mpv O/D Off Indicator Light Flashing / MIL With DTC P0706 | — |
Protecting the PCM in Your 2005 Mazda MPV
- Maintain a healthy charging system to avoid voltage spikes that can harm the modules.
- Ensure all ground straps and connector pins are clean and securely fastened.
- Avoid jump‑starting the vehicle unless absolutely necessary to protect electronic components.
- Address any diagnostic trouble codes promptly before they lead to module failure.
- Inspect connector seals regularly to keep moisture out of the electronic housing.
- Follow recommended service intervals for battery and alternator checks.
Frequently Asked Questions
Can a 2005 Mazda MPV run without the PCM installed?
The vehicle cannot operate normally without the PCM because it controls both engine and transmission functions. A replacement or repair is required to restore power and drivability.
Is the ECM in a 2005 Mazda MPV interchangeable with other model years?
While some components may share part numbers, it is safest to use a module calibrated for the specific year, make, and model to ensure proper communication and emissions compliance.
What diagnostic tool is needed to read PCM codes on a 2005 Mazda MPV?
A scan tool that supports OBD‑II and can access manufacturer‑specific codes is required to retrieve PCM and ECM trouble codes for this vehicle.
Will a refurbished PCM require the relearn procedure?
If the refurbished unit is not VIN‑programmed, the 0.5‑hour relearn step is still necessary to synchronize idle and shift strategies with the vehicle.
How often should the transmission control module be inspected on a 2005 Mazda MPV?
Regular inspections during scheduled service, especially if the over‑drive indicator flashes, can help catch issues early and prevent transmission problems.
When the PCM or ECM in your 2005 Mazda MPV shows signs of failure, you can choose a repair that restores the original unit or opt for a refurbished replacement that meets factory specifications. Both approaches aim to return your vehicle to reliable operation, with the added benefit that Flagship One units arrive pre‑programmed to match your VIN, streamlining the installation process.

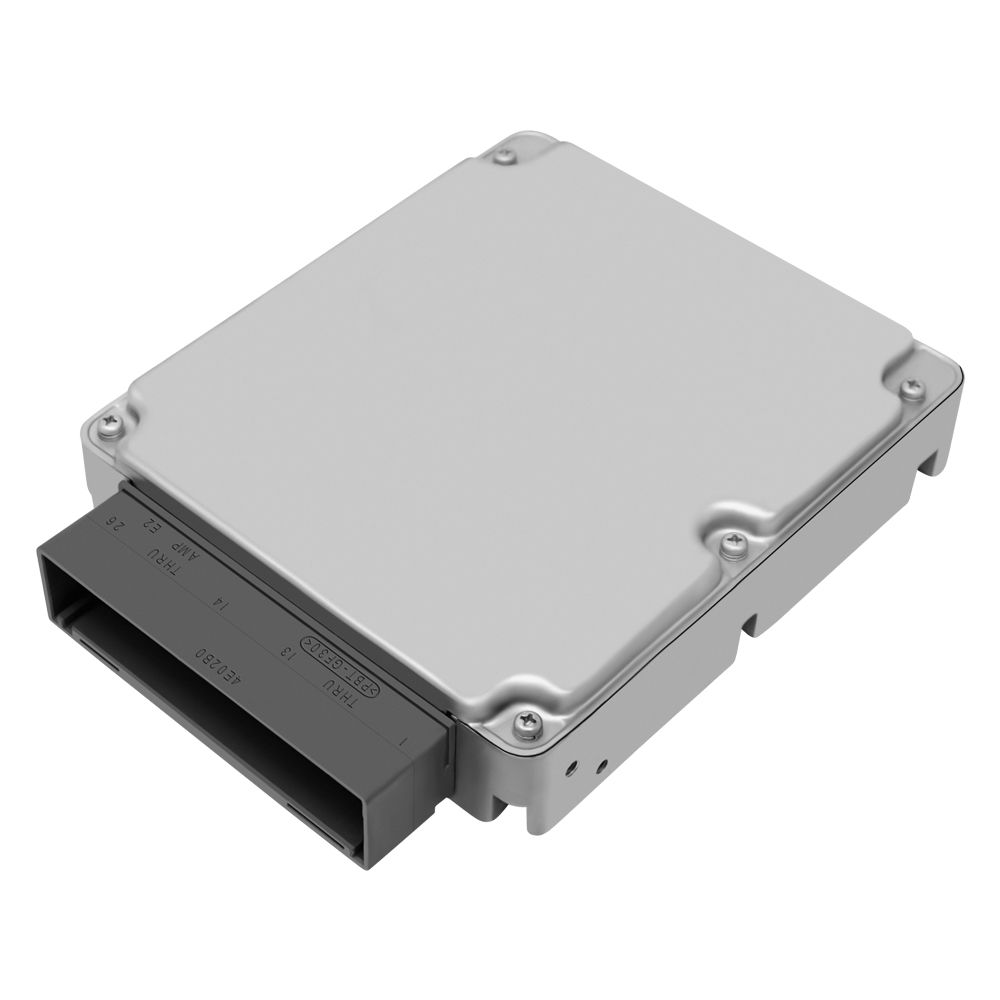

Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Mazda MPV with a lifetime warranty, free shipping and no core charge. The full Mazda MPV module lineup covers other engine configurations as well.
Final Thoughts
The 2005 Mazda MPV relies on its PCM and ECM for core engine and transmission control. Whether you repair or replace, ensuring proper installation and programming will keep the vehicle performing as designed. Consider a VIN‑programmed replacement for a hassle‑free solution.
