2004 Mazda MPV PCM & ECM Replacement: Labor, Programming, Symptoms
In the 2004 Mazda MPV, the Powertrain Control Module (PCM) and Engine Control Module (ECM) serve as the vehicle’s electronic brains, interpreting sensor data and directing fuel, spark and transmission actions. A failure in either unit can cause loss of power, erratic shifting, or a complete no‑start condition, because the engine and drivetrain no longer receive valid commands.
Quick Summary
- PCM and ECM labor times range from 0.4 to 0.5 hours depending on immobilizer presence.
- Both modules require a 0.5‑hour relearn after installation.
- Factory service bulletin 05 009/07 addresses a TCM reflash that can affect shifting.
- Flagship One units arrive VIN‑programmed, eliminating the need for manual coding.
When a 2004 Mazda MPV begins to exhibit intermittent loss of power, rough shifting, or a complete failure to start, the electronic control modules are often the first suspects. Understanding how the Powertrain Control Module and Engine Control Module function, what the factory recommends for removal and replacement, and which diagnostic codes typically appear can help you decide whether a repair or a refurbished replacement is the right path. This guide walks you through the labor expectations, the post‑install programming steps, common symptoms, and the relevant service bulletin, so you can approach the job with confidence and avoid unnecessary guesswork.
What the PCM Does in a 2004 Mazda MPV
The Powertrain Control Module in the 2004 Mazda MPV gathers data from thousands of sensors, then tells the engine how much fuel to inject, when to fire each spark plug, and how the transmission should shift. The Engine Control Module performs a similar role, focusing on engine‑specific parameters such as ignition timing and emissions control. Together they ensure the vehicle runs smoothly, meets emissions standards, and delivers the expected performance. When either unit fails, the engine may stall, refuse to start, or shift harshly, because the commands it sends are incomplete or incorrect. Proper replacement restores the closed‑loop control system, and replacement engine computers are essential for returning the vehicle to its designed operating condition.
What Replacing the PCM Involves

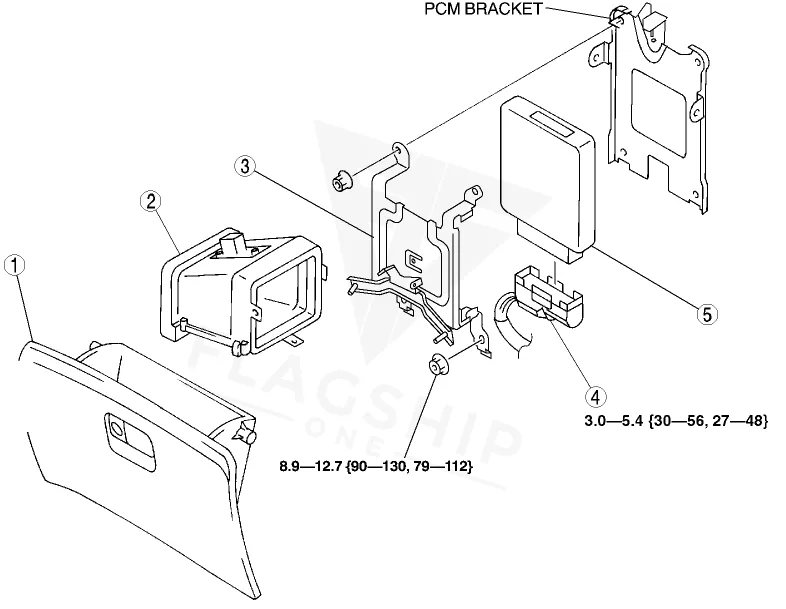

How to Reach the PCM on the 2004 Mazda MPV
- Disconnect the negative battery cable.
- Remove the TCM.
- Disconnect the front blower resistor connector.
- Remove the air duct stay fastener.
- Slide the air duct to the right.
- Remove the upper right side of the PCM panel installation nut located at the back of the blower.
- Remove four installation nuts, then pull the PCM panel down to remove from installation place.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Without Immobilize System | 0.4 hr |
| Powertrain Control Module R&R | With Immobilize System | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Without Immobilize System | 0.4 hr |
| Engine Control Module R&R | With Immobilize System | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the new PCM or ECM is physically installed, the factory procedure calls for a 0.5‑hour relearn cycle to synchronize the module with the vehicle’s existing sensors and control strategies. Flagship One supplies units that arrive already matched to the vehicle’s VIN, meaning the essential calibration data is pre‑loaded and the relearn step is the only remaining factory requirement. This eliminates the need for a separate programming session, and a VIN-programmed replacement unit ensures the module communicates correctly the first time it is powered up.
Symptoms of a Failing PCM
Typical signs that the PCM or ECM is failing in a 2004 Mazda MPV include a complete no‑start condition, intermittent stalling while cruising, rough idle, and erratic transmission shifts. You may also see diagnostic trouble codes stored in the scan tool, such as timing error which indicates a timing‑related processor fault. In addition, the vehicle might exhibit reduced fuel efficiency, unexpected loss of power during acceleration, or a sudden shutdown of the engine control system, all of which point to a loss of communication between the module and the engine sensors.
Factory Service Bulletins Worth Knowing
Factory Service Bulletin 05 009/07 for the 2003‑2004 Mazda MPV (MSP03) details a shift‑shock issue that requires a Transmission Control Module reflash. This bulletin is relevant because the PCM works closely with the TCM, and an outdated TCM map can mimic PCM‑related shifting problems.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 05 009/07 2003 2004 Mpv Mazda Special Program (Msp03) Shift Shock Transmission Control Module ( | — |
Protecting the PCM in Your 2004 Mazda MPV
- Maintain a healthy charging system to keep voltage within specifications.
- Inspect and clean all ground straps and connector pins regularly.
- Avoid jump‑starts or sudden voltage spikes that can damage electronic modules.
- Address stored diagnostic codes promptly to prevent escalation.
- Ensure connector seals remain intact to keep moisture out.
- Use proper fuses and protect against over‑current conditions.
Frequently Asked Questions
Can a faulty PCM cause my 2004 Mazda MPV to stall while driving?
Yes, the PCM controls fuel delivery and ignition timing, so a malfunction can lead to sudden stalling, especially under load.
Do I need special tools to replace the ECM in a 2004 Mazda MPV?
The replacement process uses standard hand tools; the main requirement is to disconnect the battery and follow the 0.4‑ or 0.5‑hour labor steps depending on immobilizer presence.
Is a post‑install relearn always required after installing a new PCM?
Factory guidelines specify a 0.5‑hour relearn to synchronize sensor data, but a VIN‑programmed Flagship One unit already contains the necessary calibration, so only the relearn remains.
What does Service Bulletin 05 009/07 address for my MPV?
It outlines a reflash procedure for the Transmission Control Module to correct shift‑shock issues that can affect the vehicle’s shifting behavior.
Will a jump‑start damage the PCM or ECM in my 2004 Mazda MPV?
A sudden voltage spike from a jump‑start can potentially harm electronic modules, so it’s best to use a proper charger or follow manufacturer jump‑start guidelines.
When the PCM or ECM in your 2004 Mazda MPV shows signs of failure, you can choose a repair that restores the original hardware or opt for a refurbished Flagship One replacement that arrives VIN‑programmed. Both paths address the underlying issue, but the refurbished unit saves you the extra programming step and aligns with factory specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Mazda MPV with a lifetime warranty, free shipping and no core charge. The full Mazda MPV module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2004 Mazda MPV restores reliable powertrain control and eliminates common no‑start or shifting problems. Consider a VIN‑programmed Flagship One unit for a hassle‑free install, and keep the vehicle’s electronic health in check.
