2005 Dodge Charger PCM Overview and Service Guide
In the 2005 Dodge Charger the Powertrain Control Module (PCM) governs engine timing, fuel delivery, transmission shift logic and emission controls. A malfunction can interrupt these systems, leading to loss of power, erratic shifting, or a complete no‑start condition.
Quick Summary
- PCM resides in the engine compartment and links engine and transmission functions.
- Typical labor times are 0.4 hours for removal and 0.5 hours for relearn procedures.
- Factory service bulletin #18-007-06 Rev. A outlines the official replacement process.
- Codes P0601 and P0606 often appear when the PCM fails.
When a 2005 Dodge Charger exhibits irregular idle, unexpected stalling, or transmission shift glitches, the Powertrain Control Module is a common culprit. Understanding how this computer works, where it lives, and what the repair entails can help you decide whether to pursue a repair or a replacement. This guide explains the PCM’s role, typical labor requirements, programming steps, and practical ways to keep the unit healthy.
What the PCM Does in a 2005 Dodge Charger
The Powertrain Control Module in a 2005 Dodge Charger processes inputs from sensors to manage engine combustion, fuel injection, and transmission shift timing. It also monitors emission systems and stores diagnostic trouble codes. Because it coordinates both powertrain and emissions functions, a fault can affect drivability and fuel economy. Proper operation is essential for meeting performance specifications and regulatory standards. Replacement units for the 2005 Dodge Charger are often referred to as replacement powertrain control modules for the Charger and must match the vehicle’s VIN and mileage.

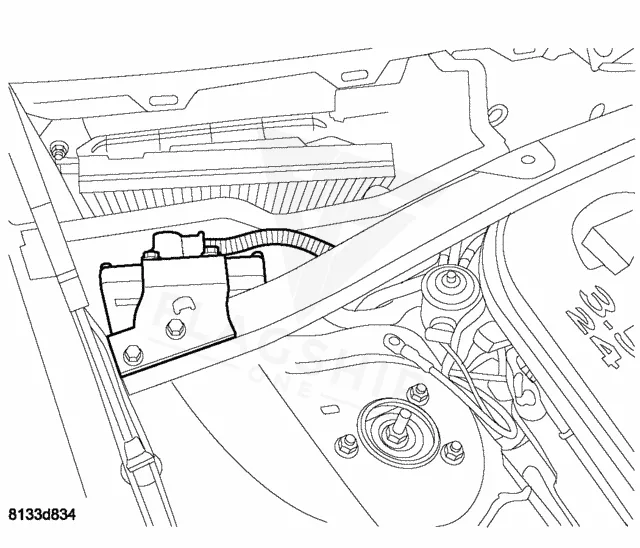

Where the PCM Is Located and What Replacement Involves
The PCM is mounted in the engine compartment of the 2005 Dodge Charger. Access typically involves disconnecting the battery, removing the cover, and unplugging the module’s connector. Labor is estimated at 0.4 hours for removal and 0.5 hours for the relearn process after installation. No additional torque specifications are provided in the source data, so standard connector tightening practices apply.
How to Reach the PCM on the 2005 Dodge Charger
- Disconnect negative battery cable.
- Remove PCM bracket-to-body mounting bolt.
- Remove assembly from vehicle.
- Unlock and disconnect the electrical connectors from PCM.
- Remove bracket from PCM.
- Remove the rubber bumper from PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After installing a new PCM in a 2005 Dodge Charger, the factory procedure requires a scan tool to program the unit with the vehicle’s original VIN and mileage. Flagship One supplies a VIN‑programmed replacement unit that arrives already configured, eliminating the need for on‑site VIN entry and reducing the overall repair time.
Symptoms of a Failing PCM
A failing PCM in a 2005 Dodge Charger may cause the engine to refuse to start, intermittent stalling, rough idle, or erratic transmission shifts. You might also see loss of communication with the scan tool and encounter diagnostic codes such as processor clock signal malfunction during troubleshooting.
Module Trouble Codes on the 2005 Dodge Charger
The following internal trouble codes are documented for the 2005 Dodge Charger PCM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #18-007-06 Rev. A provides the generic PCM replacement procedure for this model, outlining removal steps and required programming actions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-007-06 Rev. A | 18-007-06 Rev. A Generic Powertrain Control Module (PCM) Procedure | — |
Protecting the PCM in Your 2005 Dodge Charger
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground straps and connector pins regularly.
- Avoid high‑voltage spikes from improper jump‑starting.
- Address diagnostic codes promptly to prevent further damage.
- Keep connector seals intact to protect against moisture.
Frequently Asked Questions
What are common signs that the PCM has failed in a 2005 Dodge Charger?
Typical indicators include a no‑start condition, irregular shifting, rough idle, and the appearance of P0601 or P0606 codes during a scan.
Do I need a scan tool to install a new PCM in my 2005 Dodge Charger?
Yes, the factory process requires a scan tool to program the replacement with the vehicle’s VIN and mileage, unless you use a pre‑programmed unit.
How long does it usually take to replace the PCM in a 2005 Dodge Charger?
Labor estimates suggest about 0.4 hours for removal and 0.5 hours for the relearn step, not including any additional diagnostic time.
When the PCM in your 2005 Dodge Charger needs attention, you can choose a repair if the unit is still functional, or opt for a refurbished replacement that meets factory specifications. Both paths address the same core issue, but a replacement eliminates the need for on‑site programming when it arrives VIN‑programmed.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Dodge Charger with a lifetime warranty, free shipping and no core charge. The full Dodge Charger module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is critical to the operation of your 2005 Dodge Charger. Whether you repair or replace it, ensure proper installation and programming to restore reliable performance.
