2003 Ford E‑Series PCM and ECM Replacement Guide
In the 2003 Ford E‑Series, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, and emission controls. A failure in either unit can trigger the malfunction indicator lamp, store diagnostic trouble codes, and cause poor performance or loss of driveability.
Quick Summary
- PCM/ECM replacement typically requires about 0.6 hours of labor per unit.
- Factory service notes place the module beside the air cleaner assembly.
- Battery ground must be disconnected before any work on electronic controls.
- After replacement, a relearn procedure of 0.5 hours is required for the E‑150 variants.
When a 2003 Ford E‑Series begins to illuminate the MIL and store codes such as P1131 or P1151, the underlying issue often involves the vehicle’s powertrain or engine control computers. Understanding how these modules function, where they reside, and what steps follow a replacement can help you address the problem efficiently. This guide explains the role of the PCM and ECM, outlines the removal and installation process, and highlights the programming requirements so you know what to expect before starting the repair.
What the PCM Does in a 2003 Ford Van (E-Series)
The Powertrain Control Module and Engine Control Module in a 2003 Ford E‑Series act as the central processors for engine and transmission operation, interpreting sensor data to control fuel injection, ignition timing, and shift logic. Their proper function is essential for meeting emissions standards and delivering smooth performance. A fault in either computer can cause the check engine light to illuminate and store codes that indicate sensor mismatches or communication loss. Replacing these units often involves the same access path, and 2003 Ford E‑Series PCM is a common term for the replacement part.

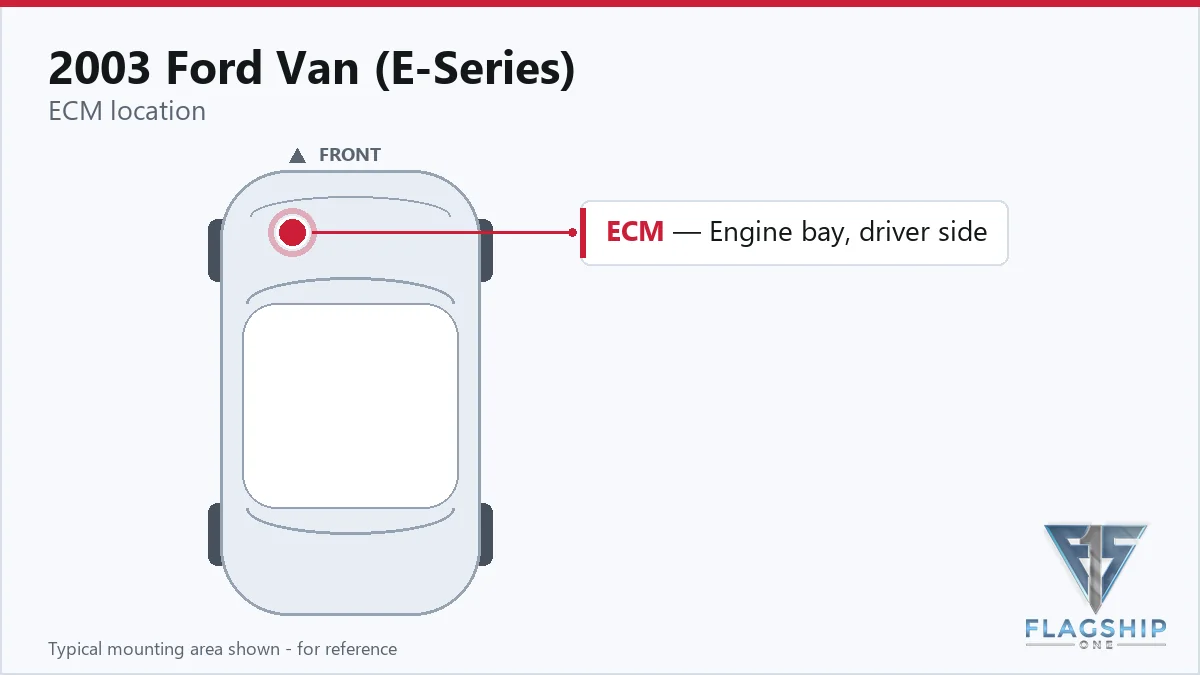

Where the PCM Is Located and What Replacement Involves
The factory removal instructions note that the control module sits next to the air cleaner assembly, providing direct access without major disassembly. Labor time for removing and reinstalling the PCM or ECM on the 4.2 L engine is listed as 0.6 hours. After the unit is secured, a relearn step is required for the E‑150 and E‑150 Club Wagon variants, which adds another 0.5 hours of work. Always start by disconnecting the battery ground cable to protect the electronic system.
How to Reach the PCM on the 2003 Ford Van (E-Series)
- Disconnect the battery ground cable.
- Remove the air cleaner assembly.
- Disconnect the powertrain control module (PCM) electrical connector.
- Remove the PCM.
- Remove the nuts.
- Remove the cover.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.2L | 0.6 hr |
| Powertrain Control Module R&R | 4.6L | 0.6 hr |
| Powertrain Control Module R&R | 5.4L | 0.6 hr |
| Powertrain Control Module Relearn | E-150 | 0.5 hr |
| Powertrain Control Module Relearn | E-150 Club Wagon | 0.5 hr |
| Engine Control Module Relearn | E-150 | 0.5 hr |
| Engine Control Module Relearn | E-150 Club Wagon | 0.5 hr |
| Engine Control Module R&R | 4.2L | 0.6 hr |
Programming Requirements After Replacement
Once the new unit is installed, the factory procedure calls for a relearn operation that takes about half an hour for the E‑150 models. Flagship One units arrive pre‑programmed to the vehicle’s VIN, so the a VIN-programmed replacement unit eliminates the need for that additional step.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2003 Ford E‑Series include a illuminated MIL, loss of power, rough idle, or an inability to start. Diagnostic scans often reveal codes such as code P1131 that point to sensor communication problems. In some cases, the vehicle may experience stalling, misfire detection, or erratic transmission behavior, all of which stem from the computer’s loss of accurate input data.
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 05‑22‑06 addresses a 4.2 L engine condition where the MIL lights with DTC P1131 and/or P1151. The bulletin outlines diagnostic steps and recommended repair actions specific to this engine size.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-22-06 | 4.2L ENGINE – MIL ON WITH DTC P1131 AND/OR P1151 | — |
Protecting the PCM in Your 2003 Ford Van (E-Series)
- Maintain a healthy charging system to avoid voltage irregularities.
- Keep ground connections clean and securely fastened.
- Prevent jump‑start voltage spikes by using proper procedures.
- Address any stored codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can I replace the PCM on my 2003 Ford E‑Series without a scan tool?
The physical replacement can be done without a scan tool, but reading and clearing codes, as well as performing the required relearn, typically need a compatible diagnostic device.
What is the labor time for swapping the ECM in a 2003 Ford E‑Series?
The factory book lists 0.6 hours for removal and installation of the ECM on the 4.2 L engine.
Do I need to disconnect the battery when working on the control modules?
Yes, the factory caution advises disconnecting the battery ground cable before any work on the electronic engine controls.
When the PCM or ECM fails in a 2003 Ford E‑Series, you can choose to have the unit repaired or install a refurbished replacement that meets factory specifications. Both options require the same removal steps, but a refurbished unit from Flagship One arrives pre‑programmed, saving the extra relearn time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Ford Van (E-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Van (E-Series) module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2003 Ford E‑Series can restore reliable engine performance and clear the MIL. Consider a VIN‑programmed replacement to simplify the post‑install process and get your van back on the road quickly.
