2003 Chevrolet S10 PCM Guide: Symptoms, Codes, and Replacement
The Powertrain Control Module (PCM) in your 2003 Chevrolet S10 4.3L manages engine and transmission functions. When it fails, you may see no-start, shifting issues, or diagnostic trouble codes like P0601.
Quick Summary
- The PCM controls fuel injection, ignition timing, and transmission shift patterns in your S10.
- Common failure symptoms include a no-start condition, the SES light on, and the gear indicator stuck on “2” or “D2”.
- Factory service bulletins document PCM reprogramming for DTC P0706 and incorrect gear range display.
- Replacement requires 1.0 to 1.8 hours labor plus a relearn procedure that Flagship One units arrive pre-programmed to skip.
- Always turn the ignition OFF before disconnecting or reconnecting PCM connectors to avoid internal damage.
If your 2003 Chevrolet S10 with the 4.3L V6 is acting up — maybe it won’t start, the check engine light is on, or the gear indicator always reads “2” regardless of the actual gear — the Powertrain Control Module (PCM) could be the culprit. This module is the brain that coordinates engine and transmission operation. Understanding what the PCM does, where it lives, and how to handle a replacement can save you time and frustration. This article covers the symptoms of a failing PCM, the internal trouble codes documented for this vehicle, relevant factory service bulletins, and what to expect during replacement. You will also learn how a VIN-programmed replacement unit from Flagship One can simplify the process by eliminating the factory relearn step.
What the PCM Does in a 2003 Chevrolet S10
The Powertrain Control Module (PCM) in your 2003 Chevrolet S10 4.3L is a single computer that manages both engine and transmission functions. It receives input from sensors like the crankshaft position sensor, throttle position sensor, and transmission range switch, then adjusts fuel delivery, ignition timing, and shift solenoids to keep the vehicle running smoothly. The PCM also monitors system health and sets diagnostic trouble codes when something goes wrong. When the PCM fails, the entire drivetrain can behave erratically or stop working entirely. For this reason, replacement PCMs for the S10 are a common repair item as the vehicle ages. Choosing a properly programmed unit is critical because the PCM must match your vehicle’s VIN and calibration to communicate with the anti-theft system and transmission.

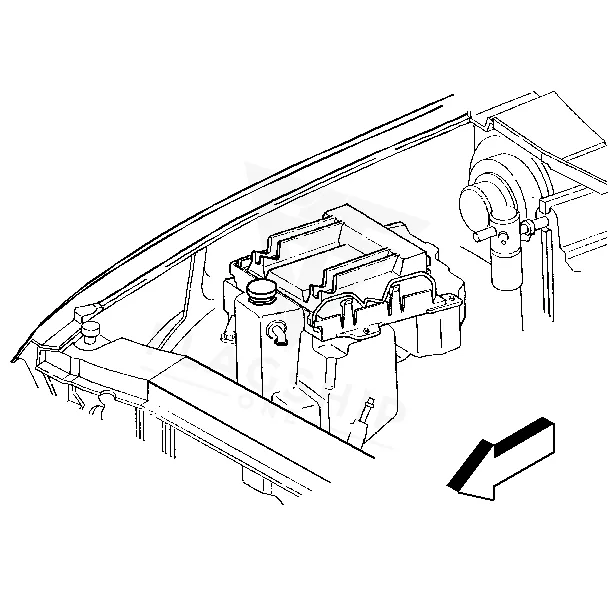

Where the PCM Is Located and What Replacement Involves
The PCM on a 2003 Chevrolet S10 4.3L can be located in one of two places depending on the build. Some trucks have the PCM under the hood, while others have it under the instrument panel. The factory labor time for replacing the PCM under the hood is 1.0 hour; for the under-dash location, the book time is 1.8 hours. In either case, the procedure requires disconnecting the battery and waiting before handling the module. The factory cautions that the ignition must be OFF when disconnecting or reconnecting any PCM connectors or power sources — including the battery cable, PCM pigtail, PCM fuse, or jumper cables — to prevent internal damage. After installation, a 0.5-hour relearn procedure is necessary to teach the PCM the vehicle’s security and idle parameters.
How to Reach the PCM on the 2003 Chevrolet S10
- Remove any debris from the PCM connector surfaces before.
- Disconnect the negative battery cable.
- Remove the PCM from the PCM mounting bracket.
- Disconnect the PCM electrical connectors.
- Remove the replacement PCM from the packaging.
- Slide the PCM retainer into the PCM bracket slots.
- Pull the PCM retention bar into position.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM in your 2003 Chevrolet S10, the factory procedure requires a 0.5-hour relearn process. This involves turning the ignition on, waiting for the security light to go out, and then performing a crank relearn and idle learn. If the PCM is not properly programmed with your vehicle’s VIN and calibration, the engine may not start or may run poorly. A VIN-programmed replacement unit from Flagship One arrives with your S10’s specific VIN and calibration already loaded, so the relearn procedure is already complete. You can install the module, reconnect the battery, and start the engine without the usual post-installation steps.
Module Trouble Codes on the 2003 Chevrolet S10
The following diagnostic trouble codes are documented for the PCM in the 2003 Chevrolet S10 4.3L. These codes indicate internal module faults rather than sensor or circuit problems:
Factory Service Bulletins Worth Knowing
Factory service bulletin #04-07-30-029 (June 30, 2004) addresses a condition where the SES light is on, DTC P0706 is set, the gear range indicator reads “2” or “D2” regardless of actual gear, and the vehicle may not start. The fix involves reprogramming the PCM. Bulletins #02-06-04-057E (March 2, 2006) and #07-00-89-043 (August 23, 2007) cover warranty administration for control module reprogramming and use of parts not issued through General Motors, respectively.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-029 | Service Engine Soon (SES) Light On, Diagnostic Trouble Code (DTC) P0706, Gear Range Indicator I | Some customers may comment that the SES light is on. Some may comment that the vehicle will not start. Others may comment that the gear range indicator always… |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2003 Chevrolet S10
- Keep the battery and charging system in good condition; low or fluctuating voltage can stress the PCM.
- Clean and tighten all ground connections and PCM connector pins to ensure reliable electrical contact.
- Avoid jump-starting the vehicle with a running donor vehicle; use a battery charger instead to prevent voltage spikes.
- Address any diagnostic trouble codes promptly before they lead to further PCM or drivetrain damage.
- Inspect the PCM connector seal and housing for corrosion or moisture intrusion, especially in humid climates.
Frequently Asked Questions
Will a PCM from a different 2003 Chevrolet S10 work in my truck?
No, the PCM must be programmed with your specific VIN and calibration. Using a module from another S10 will likely cause a no-start condition due to the vehicle anti-theft system. A VIN-programmed replacement unit from Flagship One is the correct solution.
How do I know if my 2003 S10 PCM is bad or if it’s a sensor issue?
If you have internal PCM trouble codes like P0601, P0602, or P0606, the module itself is likely faulty. Symptoms such as the gear indicator stuck on “2” or “D2” and a no-start condition with no communication from the scan tool also point to PCM failure.
Can I replace the PCM in my 2003 Chevrolet S10 myself?
Yes, if you are comfortable working under the hood or dash. The book time is 1.0 to 1.8 hours depending on location. You must turn the ignition OFF before disconnecting any connectors. After installation, a relearn is required unless you use a pre-programmed unit.
When your 2003 Chevrolet S10 4.3L needs a PCM, you have two paths: have a dealer or shop reprogram a new module, or install a refurbished unit that arrives ready to go. Flagship One offers VIN-programmed PCMs for the S10 that skip the factory relearn, saving you the 0.5-hour procedure and potential no-start headaches. This is a practical choice for a vehicle of this age.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet S10 with a lifetime warranty, free shipping and no core charge. The full Chevrolet S10 module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2003 Chevrolet S10 4.3L is a critical component that controls engine and transmission operation. Recognizing symptoms like a no-start, gear indicator errors, or internal codes such as P0601 can help you diagnose a failing module. Flagship One provides VIN-programmed replacement PCMs that eliminate the factory relearn, making the repair straightforward.
