2002 Chevrolet S10 PCM/ECM Replacement Guide & Troubleshooting

If your 2002 Chevrolet S10 4.3L is experiencing drivability issues such as intermittent stalling, hard starting, or transmission shift problems, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that manages engine timing, fuel delivery, and transmission control. This guide explains what the PCM does in your S10, where it is located, what symptoms to watch for, and what the factory replacement procedure involves. You will also learn how Flagship One’s pre-programmed units simplify the process by eliminating the need for a dealer relearn. Understanding these details helps you make an informed decision about repairing or replacing the module.

What the PCM Does in a 2002 Chevrolet S10

The Powertrain Control Module in the 2002 Chevrolet S10 4.3L is the primary electronic controller that processes sensor inputs and adjusts engine and transmission operation in real time. It monitors oxygen sensors, throttle position, crankshaft position, and many other signals to maintain proper air-fuel mixture, ignition timing, and shift patterns. When this module fails, the vehicle may not start, run poorly, or set internal diagnostic trouble codes. For owners seeking replacement PCMs for the 2002 S10, understanding the module’s role is critical because a faulty unit can mimic other component failures. The PCM also communicates with other modules via the data link, so a dead module can cause a complete loss of scan tool communication.

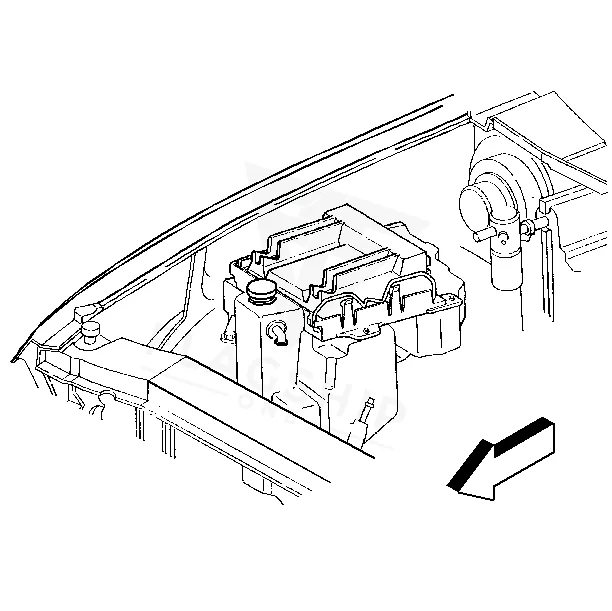

Where the PCM Is Located and What Replacement Involves

The PCM in the 2002 Chevrolet S10 4.3L can be found in one of two locations depending on the vehicle’s build. Some examples have the module mounted under the hood, typically near the firewall or on the inner fender. Others place it under the instrument panel, often behind the glove box or near the center console. Factory book time for replacement is 1.0 hours when the PCM is under the hood and 1.8 hours when it is under the instrument panel. The Engine Control Module (ECM) R&R is listed at 1.8 hours. Access may require removing trim panels or air cleaner components. Always disconnect the battery with the ignition off before unplugging the module to prevent internal damage.

Programming Requirements After Replacement

After installing a new PCM in the 2002 Chevrolet S10 4.3L, the factory procedure requires a 0.5-hour relearn to synchronize the module with the vehicle’s security system and adapt to the engine’s characteristics. This step is essential for proper operation. Flagship One supplies a VIN-programmed replacement unit that arrives with the correct calibration already loaded, so the relearn is not needed. Simply install the module, reconnect the battery with the ignition off, and the vehicle is ready to run. This saves you the time and expense of a dealer visit for programming.

Symptoms of a Failing PCM

A failing PCM in the 2002 Chevrolet S10 4.3L often produces symptoms that can be mistaken for other mechanical issues. The engine may crank but not start, or it may start and stall shortly after. You might notice intermittent misfires, rough idle, or hesitation during acceleration. Transmission shifting can become erratic or delayed. The check engine light may illuminate with codes such as internal control module memory checksum error P0601. Other common signs include a complete lack of scan tool communication, the security light staying on, or the vehicle going into a reduced-power mode. If you experience multiple electrical or drivability problems simultaneously, the PCM should be suspected.

Module Trouble Codes on the 2002 Chevrolet S10

The following diagnostic trouble codes are stored inside the PCM itself and indicate internal module faults. These codes are not related to external sensors or circuits but point to a failure within the control module’s hardware or software.

Factory Service Bulletins Worth Knowing

General Motors has issued several service bulletins relevant to the 2002 Chevrolet S10 4.3L PCM. Bulletin #02-06-04-057E (March 2006) provides labor operation assignments for all control module reprogramming. Bulletin #07-00-89-043 (August 2007) warns against using parts and components, including control module calibrations, not issued through General Motors. Bulletin #02-09-41-001 (May 2002) notes that DTCs B1001, B1271, or B1780 may set when replacing or reprogramming other modules, which can be a normal condition and not a fault of the new module.

Protecting the PCM in Your 2002 Chevrolet S10

• Maintain the charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
• Keep all ground connections and module connectors clean and tight to ensure stable voltage.
• Avoid jump-starting the vehicle with a running donor car; connect cables only with both ignitions off.
• Address any diagnostic trouble codes promptly before they lead to further module stress.
• Inspect the PCM connector seals for damage or moisture intrusion, especially in wet climates.
• Never touch the PCM connector pins or circuit board components to prevent electrostatic discharge damage.

Frequently Asked Questions

What are the symptoms of a bad PCM in a 2002 Chevrolet S10 4.3L?

Common symptoms include no-start, stalling, rough idle, misfire codes, erratic transmission shifting, and loss of scan tool communication. The check engine light may display internal PCM codes such as P0601 through P1683.

How long does it take to replace the PCM on a 2002 Chevy S10?

Factory book time is 1.0 hours if the PCM is located under the hood, or 1.8 hours if it is under the instrument panel. An additional 0.5 hours is required for the factory relearn procedure.

Do I need to program a new PCM for my 2002 S10 4.3L?

The factory procedure requires a 0.5-hour relearn after installation. However, Flagship One provides VIN-programmed units that arrive ready to install, eliminating the need for that step.

When your 2002 Chevrolet S10 4.3L PCM fails, you have two main options: repair the original module or replace it with a refurbished unit. Repair may be possible for some internal faults, but often a replacement is more reliable. Flagship One offers refurbished PCMs that are pre-programmed to your vehicle’s VIN, saving you the time and cost of a dealer relearn. Consider the labor involved and the condition of your current module when deciding.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Chevrolet S10 with a lifetime warranty, free shipping and no core charge. The full Chevrolet S10 module lineup covers other engine configurations as well.

Final Thoughts

The PCM in your 2002 Chevrolet S10 4.3L is a critical component that controls engine and transmission performance. Recognizing the symptoms of failure and understanding the replacement procedure helps you get your truck back on the road quickly. Flagship One’s pre-programmed units simplify the process by eliminating the factory relearn step. Contact us for a direct replacement that matches your S10’s specifications.
