2002 Toyota Avalon Engine Control Module Replacement And Repair Guide
The engine control module in the 2002 Toyota Avalon manages essential fuel delivery and ignition timing operations. When this computer fails, it frequently causes rough engine running, unexpected stalling, or a complete no-start condition, requiring replacement to restore proper vehicle function.
Quick Summary
- The engine control module is situated inside the instrument panel.
- Removing and replacing the powertrain control module typically requires 0.8 hours of labor.
- The relearning procedure for the engine control module generally takes 0.5 hours.
- A failing module often triggers misfire codes or unexpected stalling issues.
- Replacing the unit resolves drivability and communication faults.
When a 2002 Toyota Avalon begins to exhibit drivability issues, the engine control module often becomes a primary suspect for mechanics. This critical computer dictates how the engine operates, and when it malfunctions, the vehicle may refuse to start or run poorly. Understanding the role of this component, its location, and what replacing it entails gives you a distinct advantage when discussing repairs with your mechanic. You will learn exactly what the module does, where it is situated within the vehicle, and what steps are necessary for a successful replacement. We will also explore the typical symptoms of a failing unit, such as stalling or misfires, and explain what the relearning process involves after a new unit is installed. By grasping these concepts, you can make informed decisions about repairing your vehicle rather than relying solely on a technician’s assessment. This knowledge ensures you understand the labor times involved and the specific programming requirements needed to get your 2002 Toyota Avalon back on the road smoothly and safely.
What the PCM Does in a 2002 Toyota Avalon
The engine control module in the 2002 Toyota Avalon serves as the central processing brain for the entire powertrain. It continuously gathers data from an array of sensors distributed throughout the engine, cooling system, and exhaust system, using that real-time information to calculate the precise fuel injector pulse width and ignition timing. By regulating these critical parameters, the computer ensures the 3.0L engine runs efficiently while maintaining appropriate emissions levels. When this module operates correctly, the engine starts reliably and delivers smooth, consistent power under varying load conditions. However, internal electrical failures can disrupt these vital calculations, leading to poor performance or a complete operational shutdown. If you ever need to source replacement engine computers for the Avalon, it is crucial to understand that these units are tailored specifically to the vehicle’s factory calibration. The module also oversees the automatic transmission shifting points when operating as a powertrain control module, ensuring seamless gear transitions during acceleration. A malfunctioning unit may send incorrect signals to the fuel system, causing lean or rich running conditions that can eventually damage catalytic converters and other expensive engine components over time. Proper functioning of this computer is absolutely vital for preserving the overall longevity and daily drivability of your vehicle, making a swift and accurate diagnosis essential whenever drivability symptoms begin to surface unexpectedly on your daily commute.
Where the PCM Is Located and What Replacement Involves

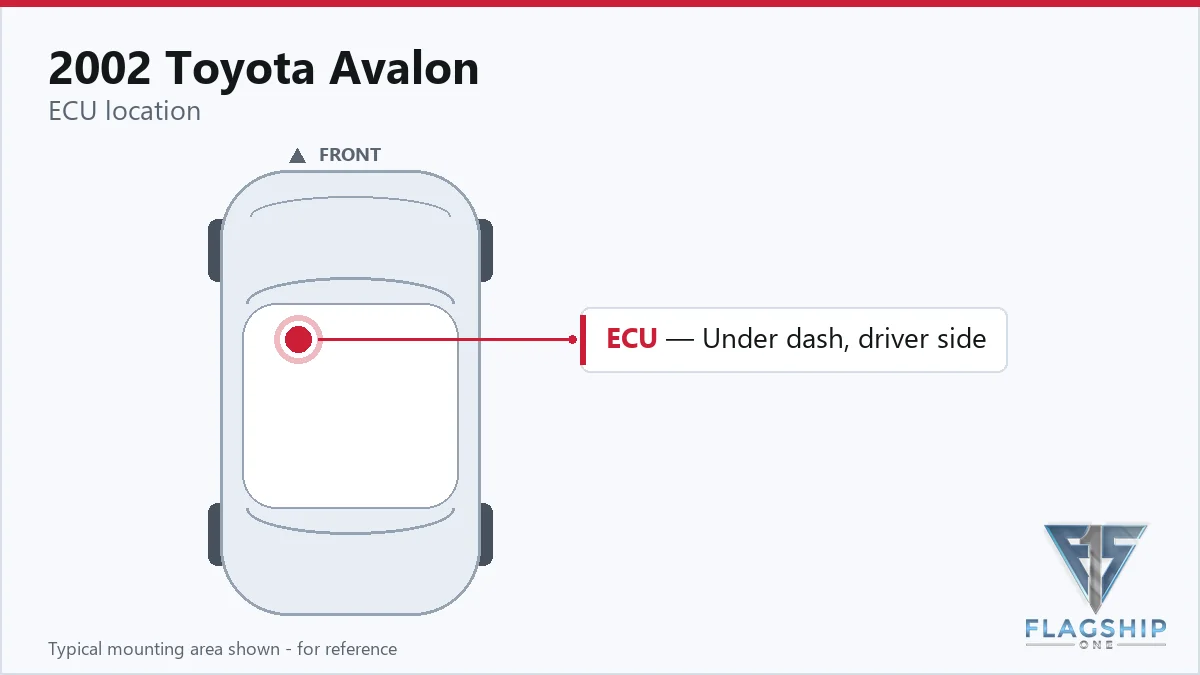

Locating the engine control module in the 2002 Toyota Avalon requires looking inside the passenger compartment. According to the factory wiring guide component grid, the engine ECU is situated inside the instrument panel. Accessing this area typically involves removing plastic trim panels around the dashboard to expose the unit for service. Once the old computer is detached and the replacement is secured, the physical swap is relatively straightforward for an experienced technician. The book time for removing and replacing the powertrain control module is 0.8 hours, while the engine control module R&R also requires 0.8 hours. After the physical installation is complete, the vehicle requires a relearn procedure to calibrate the new hardware with the existing sensors. The factory book time for the engine control module relearn is 0.5 hours, and the powertrain control module relearn similarly takes 0.5 hours. These labor times account for the technician connecting the diagnostic tool and following the specific prompts to complete the idle and fuel adaptations.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Installing a new engine control module in the 2002 Toyota Avalon requires specific programming steps to ensure the vehicle runs correctly. The factory procedure dictates that the replacement unit must be introduced to the vehicle using a professional scan tool. This process typically involves flashing the calibration into the module and performing a relearn procedure so the computer recognizes the throttle position and idle characteristics. Without these steps, the engine may idle roughly or fail to start entirely. Choosing a VIN-programmed replacement unit eliminates the need for this extensive dealership visit, as the necessary calibration and vehicle identification number programming are already completed before shipment. You simply install the computer, and the 0.5 hours of relearn time is often minimized because the module already contains the correct operating software for your specific vehicle configuration. This ensures a quicker turnaround and gets your vehicle back on the road with confidence.
Symptoms of a Failing PCM
When the engine control module begins to fail in the 2002 Toyota Avalon, several noticeable drivability issues often arise. A common symptom is a no-start condition where the engine cranks vigorously but refuses to fire, or the vehicle occasionally fails to crank at all. You may also experience unexpected stalling while idling at a traffic light or driving at steady highway speeds, which creates a significant safety concern for the driver. Misfire codes frequently appear on a diagnostic scanner, indicating that the computer is failing to regulate the ignition coils or fuel injectors properly across the 3.0L engine. Another prevalent indicator is dead scan-tool communication, meaning your mechanic cannot retrieve any data from the vehicle’s diagnostic port to troubleshoot the problem. Since the powertrain control module also governs the automatic transmission, shifting issues such as harsh or delayed gear engagements may occur simultaneously. These symptoms often appear intermittently at first before becoming more consistent and disruptive over time. Internal memory failures within the module can trigger specific diagnostic trouble codes, but without proper communication, diagnosing the exact fault becomes increasingly challenging. Addressing these symptoms promptly prevents further damage to related engine components, avoids catalytic converter deterioration from unburned fuel, and restores reliable vehicle operation for your daily commuting needs. Ignoring these warnings may eventually lead to complete vehicle immobilization.
Protecting the PCM in Your 2002 Toyota Avalon
- Maintain the health of your charging system, as an overcharging alternator can send voltage spikes through the computer.
- Keep electrical grounds and wiring connectors clean and free of corrosion to ensure stable voltage references.
- Avoid using improper jump-starting methods that can introduce damaging voltage spikes to sensitive electronics.
- Address any illuminated dashboard warning codes promptly before minor issues cascade into major computer failures.
- Inspect and maintain the integrity of connector seals to prevent moisture intrusion into the module wiring.
- Ensure the battery is securely fastened, as loose terminals can cause intermittent power disruptions to the module.
Frequently Asked Questions
Where is the engine control module located in the 2002 Toyota Avalon?
The factory wiring guide indicates that the engine ECU is situated inside the instrument panel. This means a technician must access the module by removing dashboard trim panels rather than working under the hood.
How long does it take to replace the powertrain control module on a 2002 Toyota Avalon?
The standard book time for removing and replacing the powertrain control module is 0.8 hours. An additional 0.5 hours is typically required to perform the necessary relearn procedure once the new unit is installed.
What does the engine control module relearn procedure involve for the 2002 Toyota Avalon?
The relearn process calibrates the newly installed computer with the vehicle’s existing throttle position and idle parameters. This step ensures the engine runs smoothly and adapts to the specific sensor inputs of your vehicle.
Can a failing engine control module cause transmission shifting issues in the 2002 Toyota Avalon?
Yes, because the unit functions as a powertrain control module, it actively manages automatic transmission shifting. If the computer malfunctions, it may command harsh or delayed gear changes.
Will a replacement module require programming before starting the 2002 Toyota Avalon?
Yes, a standard replacement unit requires programming and a relearn procedure using a professional scan tool. However, a pre-programmed unit from Flagship One arrives ready for installation, eliminating the need for dealership programming.
Deciding between repairing or replacing the engine computer in your 2002 Toyota Avalon depends heavily on the specific nature of the internal failure. While some localized circuit board damage may be repairable, a refurbished replacement often provides a more reliable and predictable long-term solution. Choosing a pre-programmed unit specifically calibrated for your vehicle simplifies the installation process, avoids the 0.5 hours of relearn time, and eliminates the need for additional dealership visits to flash the software.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Toyota Avalon with a lifetime warranty, free shipping and no core charge. The full Toyota Avalon module lineup covers other engine configurations as well.
Final Thoughts
Addressing engine computer issues in your 2002 Toyota Avalon promptly ensures reliable performance and prevents further drivability complications down the road. Understanding the module location, labor times, and relearn procedures empowers you to make informed repair decisions with confidence. If you suspect a failing engine control module, explore our comprehensive selection of ready-to-install units designed specifically for your vehicle to restore full functionality.
