2002 Chevrolet Prizm Engine Control Module Replacement Guide
The powertrain control module in your 2002 Chevrolet Prizm serves as the central computer for the 1.8L engine, managing fuel delivery, ignition timing, and emissions systems. Module-internal fault codes like P0601 typically indicate the computer itself has failed, not an external sensor or wiring problem. When this unit fails, the engine may not start, run poorly, stall, or fail to communicate with diagnostic tools.
Quick Summary
- The 2002 Prizm’s PCM is located inside the center console beneath the audio system, requiring trim removal for access.
- Book time for ECM replacement is 1.4 hours on this model.
- Module-internal codes including P0601 through P1683 often indicate internal electronic failure rather than external sensor issues.
- Factory procedure requires ignition-off handling and electrostatic discharge precautions throughout the repair.
- Units from Flagship One arrive VIN-programmed, eliminating post-installation module programming steps.
Facing a no-start condition or strange running behavior on your 2002 Chevrolet Prizm can be frustrating, especially when diagnostic scans reveal module-internal fault codes. These P0600-series codes often point to a failing Engine Control Module, the central computer responsible for managing your 1.8L engine’s operation. Understanding what this component does, where it lives in your vehicle, and what replacement involves helps you make informed decisions about repair options. The 2002 Prizm shares its PCM location with many GM products of this era, but each vehicle has specific service procedures and precautions that matter for a successful repair. This guide walks you through the module’s function, symptoms of failure, factory-recommended handling procedures, and what to expect from replacement through programming. Whether you are diagnosing a check engine light or already know the module needs replacement, the information here gives you a clear picture of the process ahead.
What the ECM Does in a 2002 Chevrolet Prizm
The Engine Control Module in your 2002 Chevrolet Prizm acts as the primary computer governing all aspects of the 1.8L engine’s operation. This module continuously processes data from numerous sensors positioned throughout the engine and exhaust systems to calculate ideal fuel injector pulse width, spark advance, and emissions control device activation. Beyond basic engine management, the module monitors transmission shifting behavior and communicates with other vehicle control systems. When this computer experiences internal electronic failure, it may generate fault codes that reference internal memory or processor problems rather than conventional sensor failures. The module operates using very low voltage signals, making its internal circuits sensitive to electrical disturbances. Because the unit stores vehicle-specific calibration data tied to your Prizm’s identification number, any replacement must either be programmed to match or arrive pre-configured for your application. If you need replacement engine computers for the Prizm, sourcing a unit pre-matched to your vehicle simplifies the installation considerably. The module’s failure mode often prevents proper communication with scan tools, complicating diagnosis when traditional diagnostic paths are unavailable.
Flagship One keeps Chevrolet Prizm replacement engine computers in stock for exactly this failure pattern.
Where the ECM Is Located and What Replacement Involves

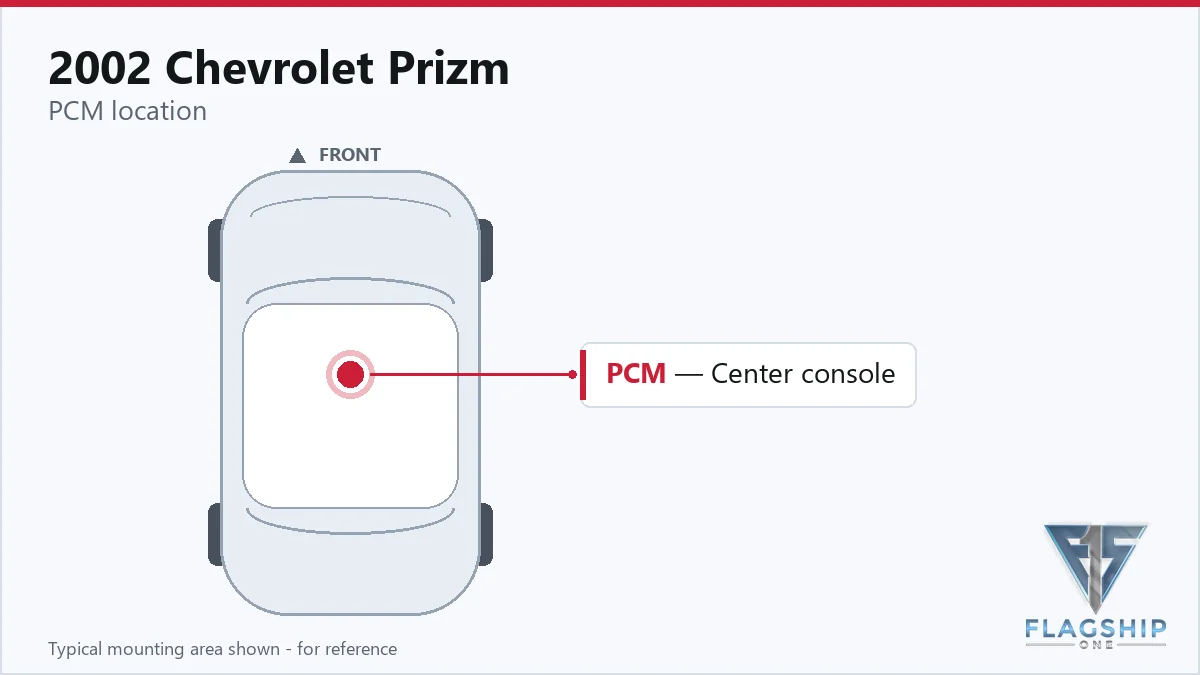

The powertrain control module on the 2002 Prizm sits inside the center console, specifically positioned below the entertainment center where the radio, cassette player, or CD player would be located. This placement means accessing the unit requires removing interior trim panels and the audio equipment to reach the module beneath. The labor standard for ECM removal and installation on this vehicle is 1.4 hours according to published book times. During the repair, technicians must observe strict handling precautions because the module’s circuit board contains sensitive electronic components designed to operate at very low voltages. Touching the connector pins or soldered connections risks electrostatic discharge damage that could immediately fail a new replacement unit. All electrical connections must be fully seated and secured before restoring power to the vehicle. The replacement process involves disconnecting the original module, transferring any necessary hardware, installing the new unit in the same location, and reconnecting all wiring harnesses in their original routing.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After installing a replacement PCM on your 2002 Chevrolet Prizm, the standard factory procedure requires performing a key-on/engine-off verification to confirm the module has been recognized by the vehicle’s electrical system. This step validates that the new computer has properly assumed control of engine and transmission functions. The original module would need to be programmed or configured to your vehicle’s specific identification number before this verification could complete. However, units sourced from Flagship One arrive pre-configured with the correct VIN and emission calibration data already loaded, which means the post-installation programming step has been completed before the part reaches your installer. Your technician can proceed directly to the verification phase without additional module configuration. Always ensure the ignition remains off when connecting or disconnecting any electrical components related to the module, including battery cables, harness connectors, and fuse holders. This prevents voltage spikes that could damage sensitive control circuits during the reconnection process.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing ECM
When the Engine Control Module fails on your 2002 Chevrolet Prizm, the engine may refuse to start entirely or begin running roughly immediately after starting. Many owners report a no-start condition where the engine cranks normally but receives no fuel or spark due to the controlling computer not sending appropriate signals. Misfire fault codes commonly appear across multiple cylinders because the module can no longer properly sequence injection and ignition events. Transmission shifting may become erratic or fail to shift entirely when the integrated transmission control functions of the module are affected. A failed module often stops communicating with scan tools, leaving technicians unable to retrieve diagnostic information through the data link connector. Multiple warning lights may illuminate simultaneously as various control systems lose communication with the central computer. The P0601 code specifically indicates internal memory checksum failure, suggesting the module’s permanent storage has become corrupted and the unit requires replacement rather than repair. These symptoms typically appear suddenly rather than gradually, as the internal electronic failure is often complete rather than progressive.
Module Trouble Codes on the 2002 Chevrolet Prizm
Your 2002 Chevrolet Prizm may have logged any of the following module-internal trouble codes, which indicate various internal faults within the Engine Control Module itself rather than external sensor or wiring problems. These codes often appear together or in various combinations depending on which internal circuits have been affected by the module’s failure. Diagnostic approach differs from conventional sensor codes because the module is typically the source of the fault rather than a downstream component.
Protecting the ECM in Your 2002 Chevrolet Prizm
- Maintain healthy charging system voltage with properly functioning alternator and well-maintained battery to prevent electrical stress on the module.
- Keep battery terminals and ground connections clean and corrosion-free to ensure stable voltage delivery to all electronic modules.
- Avoid jump-starting the vehicle whenever possible, as voltage spikes during jump starts can damage sensitive control module circuits.
- Address any check engine lights or diagnostic trouble codes promptly before underlying electrical issues worsen.
- Ensure all wiring harness connectors remain properly sealed and free of moisture intrusion that could compromise electrical signals.
- Disconnect module electrical connections only when the ignition is fully off to prevent transient voltage damage.
Frequently Asked Questions
How long does it take to replace the PCM on a 2002 Chevrolet Prizm?
Book time for ECM removal and installation on this vehicle is 1.4 hours. Actual shop time may vary depending on technician experience and the condition of the trim panels being removed, but this figure represents the standard labor allocation for this operation.
Will I need to program the replacement ECM for my 2002 Prizm?
Typically yes under normal circumstances. The factory procedure requires post-installation programming to associate the module with your vehicle’s identification number. However, units ordered from Flagship One arrive pre-programmed with your specific VIN and calibration data, eliminating this step for your installer.
What does it mean when my Prizm shows module-internal codes like P0601?
Module-internal codes indicate the Engine Control Module has detected an internal fault rather than a problem with external sensors or wiring. These codes often mean the computer itself has failed and requires replacement rather than repair. Common causes include internal memory corruption, processor failure, or electronic component degradation within the module.
Can I replace the 2002 Prizm’s ECM myself, or do I need a professional mechanic?
While the mechanical removal and installation falls within typical DIY capability for experienced home mechanics, the electrical handling precautions and potential post-installation verification steps benefit from professional diagnostic equipment and experience. The module’s sensitivity to electrostatic discharge and proper connection procedures make professional installation a sensible choice for most owners.
Where exactly is the Engine Control Module located on this vehicle?
The module is mounted inside the center console of your 2002 Chevrolet Prizm, specifically below the entertainment center area where the radio or CD player would be installed. This location requires careful trim removal to access the unit, which is a common configuration for GM vehicles of this era.
Repair versus replacement represents a practical decision point for your 2002 Chevrolet Prizm’s failed Engine Control Module. Rebuilding a damaged module may address certain failures but carries uncertainty about long-term reliability. A replacement unit sourced from a reputable supplier provides known-good electronics and, when pre-programmed with your vehicle’s identification number, eliminates complex post-installation configuration steps. Weigh the module’s cost against your vehicle’s remaining service life and reliability expectations when making this choice.
Flagship One stocks a refurbished, VIN-programmed ECM for the 2002 Chevrolet Prizm with a lifetime warranty, free shipping and no core charge. The full Chevrolet Prizm module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module on your 2002 Chevrolet Prizm serves as the brain of your 1.8L engine’s management system, and its failure manifests through various drivability symptoms and module-internal fault codes. Understanding its location in the center console, the 1.4-hour labor allocation, and the handling precautions helps set realistic expectations for the repair process. A pre-programmed replacement unit eliminates the factory programming requirement, streamlining your path back to a running vehicle.
