2000 Chevrolet Prizm PCM Replacement: What Owners Should Know
The powertrain control module (PCM) in the 2000 Chevrolet Prizm manages engine and transmission functions. Failures may cause no-start conditions, erratic shifting, or internal memory faults that trigger diagnostic trouble codes.
Quick Summary
- The PCM in the 2000 Chevrolet Prizm is a sealed unit with no internal serviceable parts.
- Replacement typically requires 1.4 hours of labor according to factory estimates.
- The module is accessed beneath the center console’s entertainment system.
- Ignition must be off during PCM connector removal to prevent damage.
- Factory procedure mandates reprogramming after installation.
If your 2000 Chevrolet Prizm suddenly refuses to start, stalls unpredictably, or logs cryptic engine codes, the powertrain control module (PCM) may be at fault. This small but critical computer oversees fuel delivery, ignition timing, and transmission behavior. Replacing it isn’t overly complex, but its location and the need for precise handling require some preparation. Understanding the steps, labor time, and post-install requirements helps you decide whether to tackle the job yourself or leave it to a shop. Either way, you’ll avoid common pitfalls like electrostatic damage or voltage spikes that can harm the new unit.
What the ECM Does in a 2000 Chevrolet Prizm
In the 2000 Chevrolet Prizm, the PCM acts as the brain for the engine and automatic transmission. It processes sensor data to adjust fuel injection, spark timing, and shift points, ensuring smooth operation and emissions compliance. A failing module may disrupt these functions, leading to poor performance or even a no-start condition. Since the PCM is non-serviceable internally, replacement is the only repair option when faults occur. For this vehicle, replacement engine computers for the Prizm are pre-configured to match its 1.8L engine, eliminating the need for manual programming in most cases.
Where the ECM Is Located and What Replacement Involves

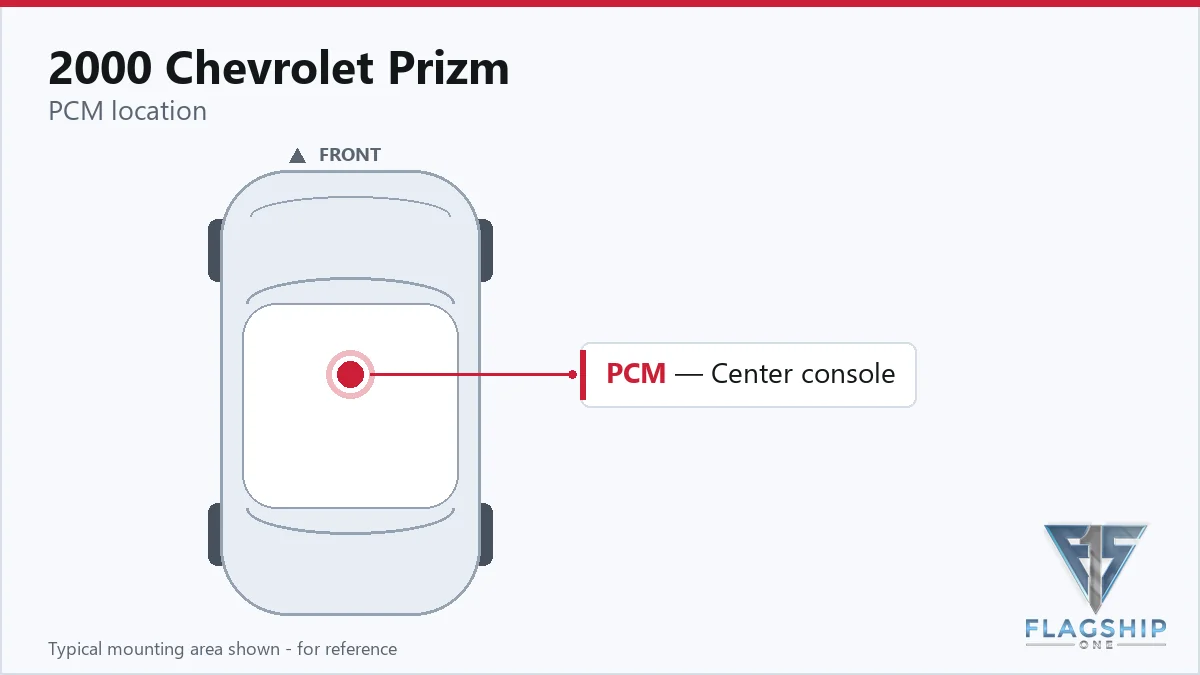

The PCM in the 2000 Chevrolet Prizm is mounted inside the center console, directly beneath the radio or cassette player. To access it, you’ll need to remove the entertainment system and possibly the console trim panels. Factory labor estimates allocate 1.4 hours for the entire replacement process, which includes disconnecting the battery, removing connectors, and securing the new module. Always turn the ignition off before handling the PCM to prevent voltage spikes. Avoid touching the connector pins or circuit board to reduce the risk of electrostatic damage.
How to Reach the ECM on the 2000 Chevrolet Prizm
- Disconnect the negative battery cable.
- Remove the glove box.
- Remove the console support bracket.
- Remove the left knee bolster trim.
- Remove the left knee bolster.
- Remove the center trim panel.
- Remove the radio, if equipped.
- Remove the shifter trim plate from the front.
- Remove the manual shifter knob and the shifter.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After installing a new PCM in the 2000 Chevrolet Prizm, the factory procedure requires reprogramming to sync the module with the vehicle’s VIN and immobilizer system. This step ensures proper communication with the engine and transmission. However, a VIN-programmed replacement unit arrives ready to install, bypassing the need for dealer reprogramming. Simply bolt it in, reconnect the battery, and start the engine—no additional software updates are typically required.
Symptoms of a Failing ECM
A failing PCM in the 2000 Chevrolet Prizm may cause a range of issues, from intermittent stalling to a complete no-start condition. Drivers might notice erratic shifting, poor fuel economy, or the check engine light illuminating with internal memory faults like control module read-only memory error. In some cases, the vehicle may crank but refuse to start, or the scan tool may fail to communicate with the PCM. These symptoms often worsen over time, so prompt diagnosis is key to avoiding a breakdown.
Module Trouble Codes on the 2000 Chevrolet Prizm
The 2000 Chevrolet Prizm’s PCM can log several internal trouble codes when faults occur. These codes typically indicate memory corruption, communication failures, or processor errors. Addressing them usually requires module replacement rather than repairs.
Factory Service Bulletins Worth Knowing
Factory service bulletin #99-06-04-053, issued in October 1999, addresses PCM reprogramming for the 2000 Chevrolet Prizm. The bulletin outlines procedures for updating the module’s software to resolve potential drivability issues or code-related faults. While reprogramming is rarely needed for a new replacement unit, it may be required if the original PCM exhibits intermittent faults or fails to communicate with diagnostic tools.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the ECM in Your 2000 Chevrolet Prizm
- Keep the battery terminals clean and properly tightened to prevent voltage irregularities.
- Avoid jump-starting the vehicle with improper voltage or polarity to protect the PCM.
- Inspect wiring harnesses and connectors for corrosion or damage, especially near the PCM.
- Address check engine lights promptly to prevent minor faults from escalating.
- Ensure the PCM connector seals are intact to prevent moisture intrusion.
- Use a memory saver when disconnecting the battery to preserve radio presets and PCM adaptations.
Frequently Asked Questions
Can I drive my 2000 Chevrolet Prizm with a P0601 code?
Driving with a P0601 code may be possible temporarily, but the vehicle could stall or run poorly. This code indicates an internal PCM fault, so replacement is often necessary to restore reliable operation.
Why does the 2000 Chevrolet Prizm PCM need to be reprogrammed after replacement?
The PCM must be programmed with the vehicle’s VIN and immobilizer data to function correctly. Factory procedure requires this step, though pre-programmed units eliminate the need for dealer visits.
How do I know if my 2000 Chevrolet Prizm PCM is bad?
Common signs include no-start conditions, stalling, or internal memory codes like P0601 or P0603. A scan tool can confirm PCM-related faults, but these symptoms often point to module failure.
When the PCM in your 2000 Chevrolet Prizm fails, you have two main options: source a used unit from a salvage yard or opt for a new or remanufactured replacement. Used modules carry risks of hidden faults or mismatched software, while a new unit ensures reliability and compatibility. Given the labor involved, investing in a quality replacement can save time and prevent repeat issues down the road.
Flagship One stocks a refurbished, VIN-programmed ECM for the 2000 Chevrolet Prizm with a lifetime warranty, free shipping and no core charge. The full Chevrolet Prizm module lineup covers other engine configurations as well.
Final Thoughts
The 2000 Chevrolet Prizm relies on its PCM to keep the engine and transmission running smoothly. If yours fails, knowing the location, labor time, and replacement steps helps you make an informed decision. Whether you tackle the job yourself or leave it to a shop, using a pre-programmed unit simplifies the process and gets you back on the road faster.
