2002 Cadillac Seville PCM Replacement Guide
In the 2002 Cadillac Seville, the Powertrain Control Module coordinates engine and transmission functions. A malfunction can disrupt fuel mapping, ignition timing, or shift logic, leading to performance loss or engine shutdown.
Quick Summary
- PCM replacement requires 2.1 hours of labor.
- Relearn procedure takes an additional 0.5 hours.
- The module sits beside the air cleaner assembly.
- Battery must be disconnected before removal.
- Fluid life data must be recorded to avoid defaults.
When the 2002 Cadillac Seville shows symptoms like stalling, erratic idling, or loss of power, the Powertrain Control Module (PCM) is often the culprit. Understanding where the PCM is located, how long the job takes, and what steps are needed afterward helps you plan an efficient repair. This guide gives you the facts you need to decide whether to replace the module yourself or bring it to a professional.
What the PCM Does in a 2002 Cadillac Seville
The PCM in the 2002 Cadillac Seville manages engine timing, fuel delivery, and transmission shift logic. It interprets sensor data and sends commands to actuators, ensuring smooth acceleration and fuel efficiency. 2002 Cadillac Seville PCM is essential for maintaining the vehicle’s performance and emissions compliance. Any fault in this module can lead to decreased power, higher fuel consumption, or failed emissions tests.
Where the PCM Is Located and What Replacement Involves
The PCM is positioned adjacent to the air cleaner assembly. To replace it, remove the air cleaner cover, locate the module, and carefully disconnect the wiring harness. The labor estimate for removal and installation is 2.1 hours, and a relearn procedure adds 0.5 hours. Follow the factory removal steps precisely to avoid damaging surrounding components.
How to Reach the PCM on the 2002 Cadillac Seville
- Disconnect the negative battery cable.
- Remove the screw retaining the intake air duct/resonator.
- Unsnap the air filter housing clamps on top of the air.
- Pull the intake air duct/resonator assembly up enough to.
- Remove the air cleaner cover and the PCM.
- Slide the air cleaner element assembly toward the fender to.
- Loosen the PCM connector attaching bolts.
- Disconnect both PCM connectors.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 2.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 2.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires you to record the remaining engine oil life and automatic transmission fluid life, then reconnect the battery. Because Flagship One units arrive VIN‑programmed, the PCM is already configured with your vehicle’s data, so you can skip the manual programming steps. VIN‑programmed replacement PCM is ready for immediate use.
Symptoms of a Failing PCM
Common indicators of a failing PCM in the 2002 Cadillac Seville include a rough idle, stalling under load, or sudden loss of power. The engine may also trigger generic trouble codes such as PCM Communication Failure or exhibit poor shift quality. If the PCM cannot communicate correctly, diagnostic tools may show no response or incomplete data.
Module Trouble Codes on the 2002 Cadillac Seville
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
Factory Service Bulletins Worth Knowing
The factory bulletin #04-06-04-022 advises that some vehicles may not properly report oxygen sensor test results when using non‑TECH2 equipment. Reprogramming the PCM resolves this communication problem.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-022 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Oxygen Sensor | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
Protecting the PCM in Your 2002 Cadillac Seville
- Keep the battery charging system in good condition to avoid voltage spikes.
- Inspect and clean all PCM connectors and grounds periodically.
- Use proper jump‑start techniques to protect the PCM from voltage surges.
- Address any error codes promptly to prevent further damage.
- Ensure connector seals remain intact to prevent moisture intrusion.
Frequently Asked Questions
Can I replace the PCM in my 2002 Cadillac Seville myself?
Replacing the PCM requires specific removal steps and a relearn procedure. While the labor time is moderate, you must have the right tools and knowledge to avoid damaging the module or surrounding components.
What happens if I forget to record the fluid life before installing a new PCM?
If the remaining engine oil life or automatic transmission fluid life is not recorded, the PCM defaults those values to 100%, which may lead to inaccurate service intervals.
Will a VIN‑programmed PCM from Flagship One work with my vehicle’s existing software?
Yes, the VIN‑programmed PCM is pre‑configured for the 2002 Cadillac Seville, eliminating the need for additional programming steps after installation.
When the PCM fails, you can choose between a full repair or a refurbished replacement. A refurbished PCM from Flagship One is already programmed for your vehicle, saving time and ensuring compatibility. Consider your budget and the vehicle’s mileage when deciding which option suits you best.

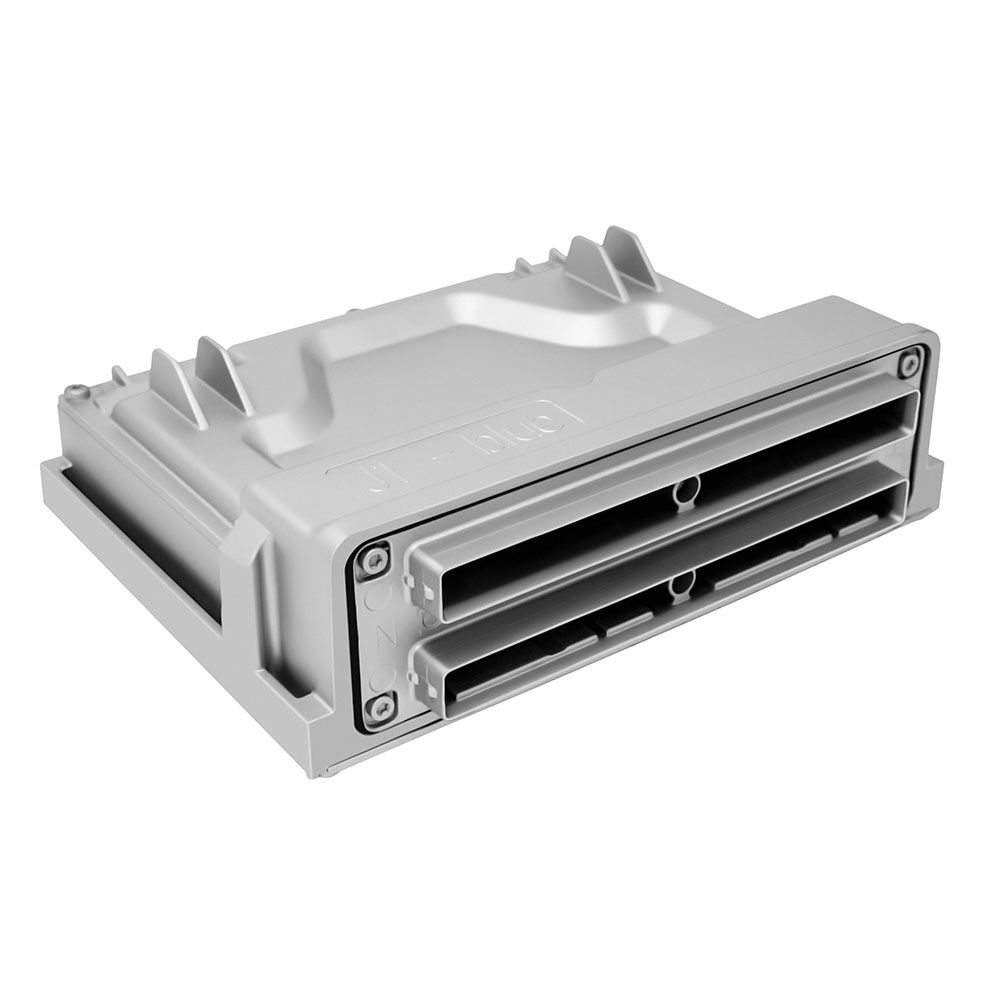

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Cadillac Seville with a lifetime warranty, free shipping and no core charge. The full Cadillac Seville module lineup covers other engine configurations as well.
Final Thoughts
The 2002 Cadillac Seville depends on its PCM for reliable engine and transmission performance. If you notice symptoms of PCM failure, act quickly to restore full functionality. Contact a trusted service center or explore our refurbished PCM options for a cost‑effective solution.
