2000 Cadillac Seville PCM and ECM Replacement Guide
In the 2000 Cadillac Seville, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shift strategy. Failure of either computer can cause loss of sensor data, erratic shifting, or a no‑start condition, often flagged by internal codes such as P0601 or P0602.
Quick Summary
- PCM and ECM each require roughly 2.1 hours for removal and replacement.
- Both modules need a 0.5‑hour relearn cycle after installation.
- Factory removal accesses the module beside the air‑cleaner assembly.
- Programming must use the latest Techline tools; Flagship One units arrive pre‑programmed.
When a 2000 Cadillac Seville experiences erratic engine behavior or diagnostic communication problems, the powertrain and engine control modules are common culprits. This guide explains where the modules reside, how long factory labor estimates assign to their removal and replacement, and what post‑install programming steps are required. By the end, you will understand the service process and how a pre‑programmed Flagship One replacement can streamline the job.
What the PCM Does in a 2000 Cadillac Seville
The PCM in a 2000 Cadillac Seville directs fuel injection, ignition timing, and transmission shift logic while the ECM focuses on engine sensor integration and emissions control. Their coordination ensures smooth acceleration and proper emissions reporting, making them essential for reliable operation. If either computer fails, the vehicle may lose sensor feedback or refuse to start. Properly functioning modules also store remaining oil and transmission fluid life data. replacement PCM for Seville helps keep these parameters accurate after a swap.
Where the PCM Is Located and What Replacement Involves

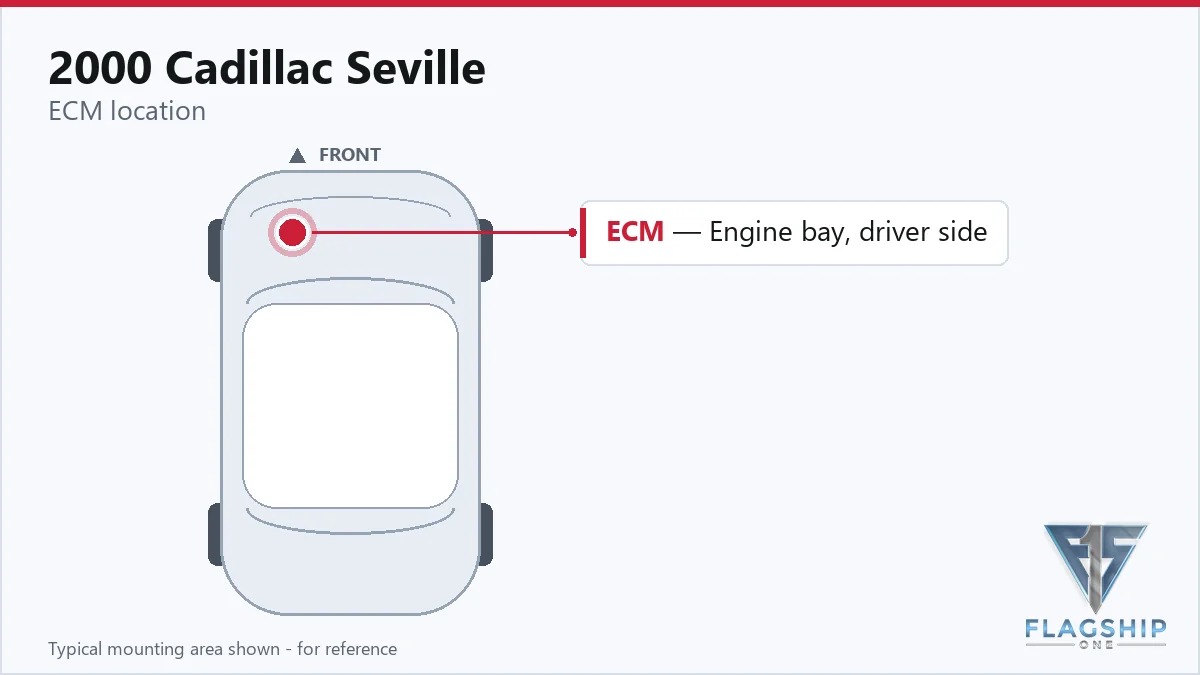

Factory documentation shows the control module sits next to the air‑cleaner assembly, allowing access without major disassembly. Removing the PCM or ECM is estimated at 2.1 hours of labor, followed by a 0.5‑hour relearn procedure to sync the new unit with the vehicle’s existing parameters. The same timeframes apply to the ECM. Technicians must first disconnect the negative battery cable as part of the battery‑disconnect caution before beginning work.
How to Reach the PCM on the 2000 Cadillac Seville
- Disconnect the negative battery cable.
- Remove the screw retaining the intake air duct/resonator.
- Unsnap the air filter housing clamps on top of the air.
- Pull the intake air duct/resonator assembly up enough to.
- Remove the air cleaner cover and the PCM.
- Slide the air cleaner element assembly toward the fender to.
- Loosen the PCM connector attaching bolts.
- Disconnect both PCM connectors.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 2.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 2.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory requires a flash using the latest Techline equipment to load the vehicle’s specific calibration data. This step also restores the recorded engine oil and transmission fluid life values. Flagship One units arrive already loaded, so the required flash is effectively completed before the technician begins. a VIN-programmed unit eliminates the need for an on‑site programming session.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2000 Cadillac Seville include a no‑start condition, rough idle, unexpected stalling, or loss of diagnostic communication during scans. You may also notice shift timing irregularities or persistent error codes. One frequently reported fault is P0601 clock timing fault, which indicates internal timing circuit problems within the module.
Module Trouble Codes on the 2000 Cadillac Seville
The following internal trouble codes are documented for the 2000 Cadillac Seville’s control modules:
Factory Service Bulletins Worth Knowing
Bulletin #04-06-04-022 (April 7 2004) notes that the PCM may not correctly share oxygen sensor test data with generic diagnostic tools, requiring a reprogram. Bulletin #99-06-04-053 (Oct 26 1999) provides general PCM reprogramming guidance. Bulletin #02-06-04-057E (Mar 2 2006) outlines labor assignments for all control‑module reprogramming tasks.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-022 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Oxygen Sensor | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
Protecting the PCM in Your 2000 Cadillac Seville
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground straps and connector pins regularly.
- Use proper jump‑start techniques to protect electronic modules.
- Address any stored diagnostic codes promptly.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What should I check before replacing the PCM on my 2000 Cadillac Seville?
Verify the battery is disconnected, record the remaining engine oil and transmission fluid life, and confirm you have the correct removal tools. This preparation helps avoid defaulting those life values after installation.
Can a generic scan tool read the PCM after the replacement?
Factory notes indicate that some generic tools may not receive oxygen sensor test data from the new PCM. Using a Tech2‑compatible device or a pre‑programmed Flagship One unit resolves this limitation.
How long does the relearn process take for the ECM on this vehicle?
The labor guide assigns 0.5 hours for the ECM relearn, which synchronizes the new module with the vehicle’s existing sensor inputs and calibration data.
When the PCM or ECM in your 2000 Cadillac Seville needs service, you can choose a brand‑new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options require the same removal steps, but a pre‑programmed Flagship One part removes the need for an on‑site flash, saving time in the shop.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2000 Cadillac Seville with a lifetime warranty, free shipping and no core charge. The full Cadillac Seville module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2000 Cadillac Seville follows a clear procedure and benefits from a pre‑programmed replacement that eliminates extra programming steps. Consider the options and choose the path that best fits your service schedule.
