2001 Chevrolet Corvette PCM Replacement Guide
In a 2001 Chevrolet Corvette, the PCM controls engine timing, fuel delivery, and transmission shifts. Failure can cause stalling, erratic acceleration, or loss of communication with the scan tool.
Quick Summary
- PCM replacement takes 0.8 hours; relearn takes 0.5 hours.
- Replacement must be programmed to function.
- Oil life must be recorded before removal.
- Add‑on equipment can still disrupt the powertrain system.
- Electrostatic discharge precautions are essential.
You might be wondering why your 2001 Chevrolet Corvette is misfiring or refusing to shift smoothly. The culprit could be the Powertrain Control Module (PCM) that governs everything from fuel injection to transmission decisions. By replacing or reprogramming the PCM, you can restore reliable performance and avoid costly diagnostic time. This guide walks you through the steps a seasoned mechanic would follow, from removal to final programming, and highlights what you should watch for during and after the process. Whether you’re a DIY enthusiast or a shop technician, understanding the PCM’s role helps you keep your Corvette running like new.
What the PCM Does in a 2001 Chevrolet Corvette
The PCM in the 2001 Chevrolet Corvette is the brain that coordinates engine and transmission functions. It receives input from sensors such as throttle position, engine temperature, and speed, then sends commands to actuators that control fuel injectors, ignition timing, and shift points. replacement 2001 Corvette PCM When the PCM’s software or hardware fails, the vehicle may stall, misfire, or lose shift quality. These symptoms arise because the module no longer processes sensor data correctly or cannot communicate with other control units. Consequently, the engine may run rough, the transmission may shift too early or too late, or the vehicle may fail to start. Repairing or swapping the PCM restores the logic that keeps the powertrain balanced and responsive.

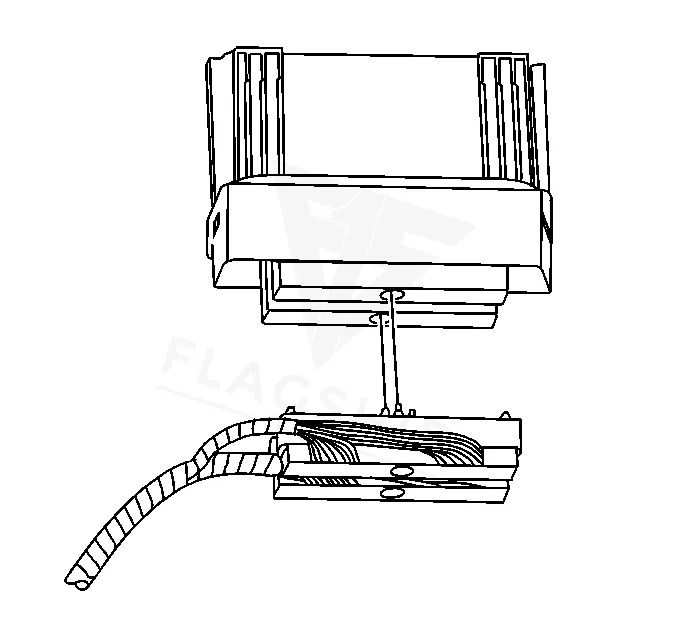

Where the PCM Is Located and What Replacement Involves
The PCM sits in the engine bay near the firewall, behind the intake manifold. Removing it requires disconnecting the battery, unplugging the wiring harness, and loosening the mounting bolts. The book time for a full removal is 0.8 hours, and relearning the module takes an additional 0.5 hours. No special torque specifications are listed, but the procedure typically involves carefully sliding the unit out, taking note of the connector orientation, and storing the old PCM for potential comparison.
How to Reach the PCM on the 2001 Chevrolet Corvette
- Remove the wheelhouse filler panel.
- Remove the TAC module.
- Disconnect the PCM electrical harness connectors.
- Loosen but do not remove the PCM rear retaining fastener.
- Remove the front retaining fastener from the PCM.
- Remove the PCM from the bracket and the vehicle.
- Position the PCM front bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory procedure mandates that the unit be programmed while the vehicle is present. The process involves selecting Tech 2, choosing Reprogram ECU, and using the Off‑Board Programming Adapter at the ECU location. Flagship One units come VIN‑programmed, so those steps are already completed. VIN‑programmed replacement unit This eliminates the need to perform a fresh programming session at the shop, saving time and reducing the risk of misconfiguration.
Symptoms of a Failing PCM
A failing PCM in a 2001 Chevrolet Corvette often shows up as a rough idle, frequent stalling, or intermittent misfires. The engine may hesitate during acceleration, or the transmission may shift abruptly or not at all. Scan tools may return codes such as powertrain control module failure or other P‑codes related to the PCM. If the PCM loses communication, the vehicle may display a check engine light without a clear diagnostic code, and it may even refuse to start. These symptoms are typical of a module that cannot process sensor data or send proper commands.
Module Trouble Codes on the 2001 Chevrolet Corvette
The following list details the internal trouble codes that can be logged by the PCM in a 2001 Chevrolet Corvette. Each code indicates a specific fault or malfunction within the control module.
Protecting the PCM in Your 2001 Chevrolet Corvette
- Keep the battery’s charging system clean and in good condition.
- Ensure all connector pins are free from corrosion and securely seated.
- Avoid high‑voltage spikes when jump‑starting the vehicle.
- Address any check‑engine‑light codes promptly.
- Maintain proper oil life and change oil as scheduled.
- Protect the PCM connectors from moisture and debris.
When the PCM replacement feels daunting, consider the refurbished option that offers the same performance with a lower price tag. For a 2001 Chevrolet Corvette, a quality PCM replacement can restore reliability without the need for a full engine rebuild. Explore the options that best fit your budget and maintenance goals.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chevrolet Corvette with a lifetime warranty, free shipping and no core charge. The full Chevrolet Corvette module lineup covers other engine configurations as well.
Final Thoughts
A 2001 Chevrolet Corvette’s PCM plays a critical role in engine and transmission management. Replacing or reprogramming the module can resolve misfires, stalling, and shifting issues. If you suspect your PCM is failing, contact a trusted mechanic to discuss the most efficient solution.
