1998 Chevrolet Corvette PCM Replacement & Common Failure Signs
The Powertrain Control Module (PCM) in the 1998 Chevrolet Corvette manages engine and transmission functions. Failures may cause drivability issues, poor performance, or stored trouble codes related to internal memory or communication errors.
Quick Summary
- The PCM controls engine and transmission operations in the 1998 Corvette.
- Replacement typically requires 0.8 hours of labor, plus a 0.5-hour relearn procedure.
- Factory cautions include avoiding electrostatic discharge and proper electrical connections.
- Internal trouble codes like P0601 may indicate PCM failure.
- Flagship One units arrive VIN-programmed, eliminating additional programming steps.
If your 1998 Chevrolet Corvette is experiencing unexplained stalling, rough idling, or transmission shifting problems, the Powertrain Control Module (PCM) may be at fault. This critical component oversees engine performance and transmission behavior, and its failure can lead to a range of drivability issues. Replacing the PCM involves specific steps to avoid damage and ensure proper function. Understanding the process, labor requirements, and factory recommendations helps you make informed decisions about repairs or replacements, restoring your vehicle’s reliability without unnecessary complications.
What the PCM Does in a 1998 Chevrolet Corvette
In the 1998 Chevrolet Corvette, the Powertrain Control Module (PCM) acts as the brain for both the engine and transmission, coordinating fuel delivery, ignition timing, and shift points. It relies on input from various sensors to optimize performance and efficiency. A malfunctioning PCM may disrupt these functions, leading to poor drivability or even a no-start condition. When replacement becomes necessary, choosing replacement engine computers for the Corvette ensures compatibility and avoids the need for additional programming steps, as long as the unit is properly matched to your vehicle’s VIN.
Where the PCM Is Located and What Replacement Involves
The PCM in the 1998 Chevrolet Corvette is located inside the vehicle, typically mounted near the passenger-side footwell or under the dashboard. Replacing it involves disconnecting the battery, removing the module’s electrical connector, and unfastening the mounting hardware. Labor time for removal and reinstallation is typically 0.8 hours. After installation, a relearn procedure is required, which adds another 0.5 hours of labor. Care must be taken to avoid touching the connector pins or circuit board to prevent electrostatic discharge damage.

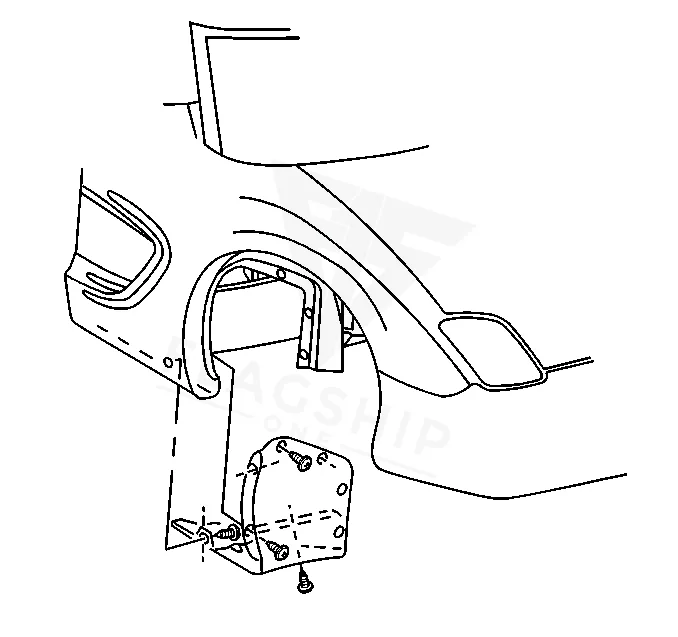

How to Reach the PCM on the 1998 Chevrolet Corvette
- Remove any debris from the PCM connector surfaces before.
- Raise the vehicle.
- Remove the right front tire and wheel assembly.
- Remove the wheelhouse filler panel.
- Remove the fasteners retaining the Throttle Actuator Control.
- Remove the electrical connectors from the TAC module.
- Remove the TAC module from the vehicle.
- Disconnect the PCM electrical harness connectors.
- Loosen but do not remove the PCM rear retaining fastener.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in a 1998 Chevrolet Corvette, the factory requires programming the EEPROM and performing an Idle Learn Procedure. These steps ensure the module communicates correctly with the engine and transmission. However, if you install a VIN-programmed replacement unit, these procedures are already completed, saving time and reducing the risk of errors during the relearn process. Always follow factory guidelines to avoid drivability issues after installation.
Symptoms of a Failing PCM
A failing PCM in the 1998 Chevrolet Corvette may cause symptoms like intermittent stalling, rough idling, or a no-start condition. You might also notice transmission shifting problems or the check engine light illuminating with codes related to internal module faults. Common trouble codes include internal control module memory checksum error, which often indicates a hardware or software issue within the PCM. Dead scan-tool communication or erratic sensor readings may also point to module failure.
Module Trouble Codes on the 1998 Chevrolet Corvette
The 1998 Chevrolet Corvette’s PCM may store specific trouble codes when internal faults occur. These codes help diagnose issues related to memory, communication, or control functions within the module itself.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0608 | Module-internal fault | Full P0608 guide → |
| P0650 | Module-internal fault | Full P0650 guide → |
| P0654 | Module-internal fault | Full P0654 guide → |
| P1624 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1630 | Module-internal fault | — |
| P1631 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 1998 Chevrolet Corvette address PCM reprogramming procedures. Bulletin #99-06-04-053 (October 26, 1999) provides information on updating the PCM software. A later bulletin, #02-06-04-022A (October 13, 2003), outlines reprogramming and data line diagnosis using specialized tools. These bulletins highlight the importance of keeping the PCM software current to avoid drivability issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 02-06-04-022 | Info – PCM Reprogramming and Data Line Diagnosis Using J 42236-A – (Oct 13, 2003) | — |
Protecting the PCM in Your 1998 Chevrolet Corvette
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Keep electrical connections clean and secure to avoid intermittent communication issues.
- Avoid jump-starting the vehicle with improper voltage to prevent module damage.
- Address stored trouble codes promptly to prevent further drivability problems.
- Ensure the PCM connector seals remain intact to protect against moisture and corrosion.
- Use a battery maintainer during long periods of inactivity to avoid low-voltage conditions.
Frequently Asked Questions
How do I know if my 1998 Corvette’s PCM is failing?
Common signs include stalling, rough idling, or a no-start condition. The check engine light may illuminate with codes like P0601 or P0606. If scan-tool communication fails or the vehicle exhibits erratic behavior, the PCM may be at fault.
Can I replace the PCM in my 1998 Corvette myself?
Replacement is possible if you’re comfortable working with vehicle electronics. However, the factory requires programming and an Idle Learn Procedure afterward. A VIN-programmed unit simplifies the process by eliminating these steps.
What happens if I don’t perform the Idle Learn Procedure after replacing the PCM?
Skipping the Idle Learn Procedure may result in poor idle quality, stalling, or drivability issues. The PCM needs this step to calibrate throttle and idle settings for smooth operation.
If your 1998 Chevrolet Corvette is showing signs of PCM failure, you have options for repair or replacement. A refurbished or new module can restore reliability, especially if it arrives VIN-programmed to match your vehicle. Labor times are relatively short, but factory requirements like programming and relearn procedures must be followed to ensure proper function.

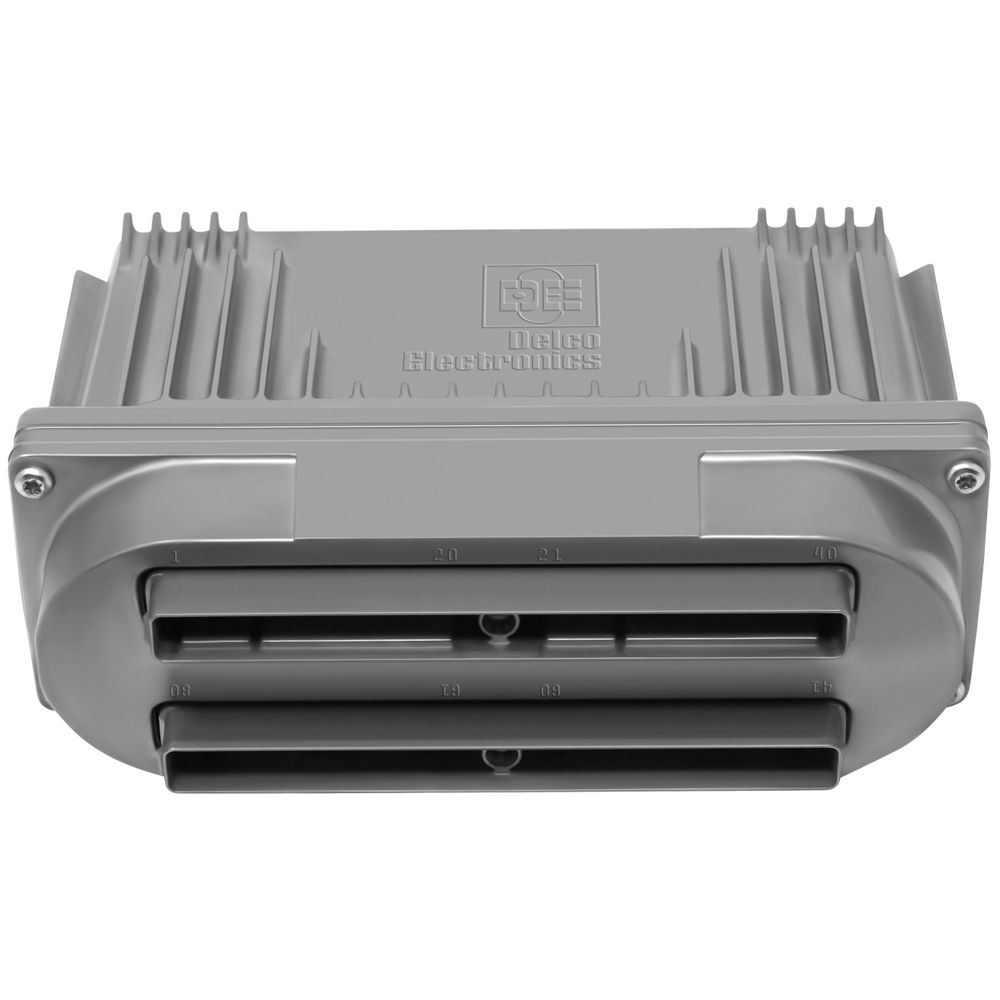

Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Chevrolet Corvette with a lifetime warranty, free shipping and no core charge. The full Chevrolet Corvette module lineup covers other engine configurations as well.
Final Thoughts
The 1998 Chevrolet Corvette relies on its PCM for smooth engine and transmission performance. If you’re experiencing drivability issues, a replacement module may be the solution. Choosing a VIN-programmed unit simplifies the process, ensuring your Corvette runs as intended without additional programming steps.
