2003 Chevrolet Corvette PCM Replacement and Reprogramming Guide
The Powertrain Control Module (PCM) in your 2003 Chevrolet Corvette manages engine and transmission functions. Failure may lead to erratic performance, stored trouble codes, or complete vehicle inoperability due to internal faults or corrupted calibration.
Quick Summary
- The PCM controls engine and transmission operations in the 2003 Corvette.
- Replacement typically requires 0.8 hours of labor, plus 0.5 hours for relearn procedures.
- Factory cautions emphasize recording oil life and avoiding electrostatic damage during handling.
- A new or replacement PCM must be programmed to the vehicle’s VIN to function correctly.
- Internal trouble codes like P0601 may indicate PCM failure.
If your 2003 Chevrolet Corvette is experiencing unexplained stalling, a no-start condition, or erratic shifting, the Powertrain Control Module (PCM) may be at fault. This critical component integrates engine and transmission control, and its failure can disrupt multiple systems. Replacing or servicing the PCM involves specific steps, including programming and relearn procedures, to ensure proper operation. Understanding these requirements helps you avoid unnecessary delays and ensures your Corvette runs as intended. This guide covers what the PCM does, where it’s located, and what to expect during replacement and programming.
What the PCM Does in a 2003 Chevrolet Corvette
In your 2003 Chevrolet Corvette, the Powertrain Control Module (PCM) acts as the brain for both engine and transmission functions. It processes inputs from sensors to optimize fuel delivery, ignition timing, and shift points, directly influencing performance and drivability. A malfunctioning PCM may cause poor throttle response, fuel economy issues, or even prevent the vehicle from starting. Because the PCM is calibrated specifically for the Corvette’s 5.7L engine, using a non-programmed unit will result in failure to operate. When replacement is necessary, selecting replacement engine computers for the Corvette ensures compatibility and avoids calibration mismatches that could lead to further issues.
Where the PCM Is Located and What Replacement Involves
The PCM in your 2003 Chevrolet Corvette is located in the engine compartment, typically mounted near the firewall or on the driver’s side inner fender. Accessing it involves disconnecting the negative battery cable, removing the connector, and unbolting the module from its mount. The factory labor time for removal and reinstallation (R&R) is 0.8 hours. After installation, a relearn procedure is required, adding another 0.5 hours of labor. During handling, avoid touching the connector pins or circuit board components to prevent electrostatic discharge, which could damage the new module.

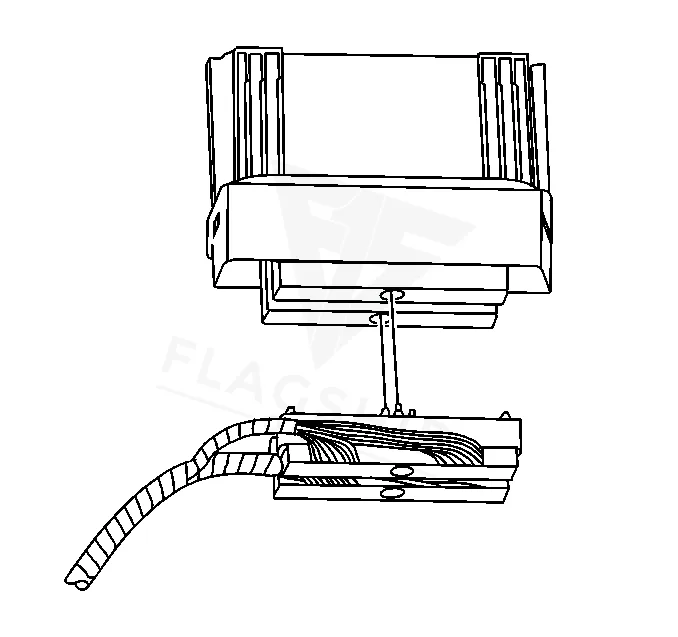

How to Reach the PCM on the 2003 Chevrolet Corvette
- Remove the wheelhouse filler panel.
- Remove the throttle actuator control (TAC) module.
- Disconnect the powertrain control module (PCM) electrical.
- Loosen but do not remove the PCM rear retaining fastener.
- Remove the front retaining fastener from the PCM.
- Remove the PCM from the bracket and the vehicle.
- Position the PCM front bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2003 Chevrolet Corvette, the factory requires programming the module to the vehicle’s VIN. This step ensures the module communicates correctly with the engine and transmission systems. The process typically takes 0.5 hours of labor. However, if you install a VIN-programmed replacement unit, this step is already completed, saving time and reducing the risk of programming errors. Always follow the manufacturer’s caution to record the remaining engine oil life before removal, as this data may be lost during the replacement process.
Symptoms of a Failing PCM
A failing PCM in your 2003 Chevrolet Corvette may cause a range of symptoms, including intermittent stalling, a no-start condition, or erratic shifting. You might also notice poor fuel economy, rough idle, or the check engine light illuminating with module-specific codes. Common trouble codes associated with PCM failure include internal control module memory checksum error, which indicates a fault within the module’s memory. If your scan tool fails to communicate with the PCM, that may also signal a module issue. Addressing these symptoms promptly can prevent further drivability problems.
Module Trouble Codes on the 2003 Chevrolet Corvette
The 2003 Chevrolet Corvette’s PCM may store specific trouble codes when internal faults occur. These codes help diagnose issues related to the module’s memory, processing, or communication functions. Below are the documented module-internal trouble codes for this vehicle.
Factory Service Bulletins Worth Knowing
General Motors has issued several service bulletins related to PCM reprogramming and module replacement for the 2003 Chevrolet Corvette. Bulletin #02-06-04-022 and its update #02-06-04-022A provide guidance on PCM reprogramming and data line diagnosis using tool J 42236-A. Bulletin #02-06-04-057 and its revisions outline labor operation assignments for control module reprogramming. Additionally, #07-00-89-043 addresses the use of parts and components, including control module calibrations, not issued through General Motors, emphasizing the importance of using approved modules to avoid warranty or functionality issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 02-06-04-022 | Info – PCM Reprogramming and Data Line Diagnosis Using J 42236-A – (Oct 13, 2003) | — |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2003 Chevrolet Corvette
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Ensure all electrical grounds and connectors are clean and securely fastened.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive electronics.
- Address any stored trouble codes promptly to prevent cascading failures.
- Keep the PCM connector seals intact to prevent moisture intrusion.
- Disconnect the battery before performing any electrical work to avoid short circuits.
Frequently Asked Questions
Why does my 2003 Corvette need a PCM relearn after replacement?
The relearn procedure synchronizes the new PCM with the vehicle’s sensors and systems. Without it, the engine may run poorly or fail to start. The process typically takes 0.5 hours and ensures proper communication between the module and the rest of the powertrain.
Can I install a used PCM from another 2003 Corvette?
A used PCM may work if it is programmed to your vehicle’s VIN. However, internal faults or mismatched calibrations could cause drivability issues. Always verify compatibility and consider a VIN-programmed replacement to avoid problems.
What happens if I don’t record the remaining engine oil life before PCM replacement?
The oil life monitor may reset to a default value, potentially leading to premature or delayed oil change reminders. While not critical, recording this data ensures the maintenance schedule remains accurate.
If your 2003 Chevrolet Corvette is experiencing PCM-related issues, you have options for repair or replacement. A refurbished or new module can restore proper function, but programming is essential for compatibility. Given the labor times and factory requirements, selecting a pre-programmed unit may simplify the process and reduce downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet Corvette with a lifetime warranty, free shipping and no core charge. The full Chevrolet Corvette module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module in your 2003 Chevrolet Corvette plays a vital role in engine and transmission performance. If you suspect a failure, addressing it promptly with the correct replacement and programming ensures your vehicle operates reliably. Whether you choose a new or refurbished module, proper installation and calibration are key to avoiding further issues.
