2001 Audi allroad ECM Replacement Guide: Everything You Need to Know
The Engine Control Module (ECM) in your 2001 Audi allroad is the central computer that manages the 2.7L V6 biturbo engine’s critical functions. It processes sensor data to control fuel injection, ignition timing, and emissions systems. When the ECM fails, the engine may not run properly or the vehicle may not start at all.
Quick Summary
- The ECM controls fuel delivery, ignition timing, and emissions for the 2.7L V6 biturbo engine
- ECM replacement requires 1.1 hours of labor for the allroad Quattro variant
- After replacement, an ECM relearn procedure of 0.5 hours is required to calibrate the new module
- A faulty Motronic ECM power supply relay (J271) can mimic ECM failure symptoms
- Flagship One replacement units arrive VIN-programmed, eliminating dealer programming steps
If your 2001 Audi allroad is experiencing starting problems, stalling, or unusual engine behavior, the Engine Control Module may be the culprit. The ECM serves as the brain of your vehicle’s powertrain, continuously monitoring and adjusting engine operations to ensure optimal performance and emissions compliance. This comprehensive guide explains what the ECM does, common failure symptoms, replacement procedures, and your repair options. Whether you are diagnosing a no-start condition or planning a preventive replacement, understanding the ECM’s role will help you make informed decisions about your vehicle’s repair. The information here applies specifically to the 2001 allroad equipped with the 2.7L V6 biturbo engine, which uses a Motronic engine management system.
What the PCM Does in a 2001 Audi allroad
The Engine Control Module in your 2001 Audi allroad is the primary computer responsible for managing the 2.7L V6 biturbo engine’s operational parameters. This replacement engine computers for the allroad processes input from numerous sensors throughout the engine bay, including the mass airflow sensor, coolant temperature sensor, throttle position sensor, and oxygen sensors. Using this data, the ECM calculates the ideal fuel injection timing and duration, ignition spark advance, and turbo boost pressure to maintain smooth operation while meeting emissions standards. The module also controls the variable valve timing system and manages the engine’s idle speed through the idle air control valve. Because the ECM communicates with virtually every major engine component, a failure or malfunction can affect multiple vehicle systems. When the ECM encounters an internal fault or loses proper voltage supply, it may store diagnostic trouble codes and enter fail-safe mode, limiting engine performance to prevent potential damage. The ECM communicates with the transmission control module to coordinate shifting, meaning ECM problems can also manifest as shifting irregularities or engagement delays.
Where the PCM Is Located and What Replacement Involves

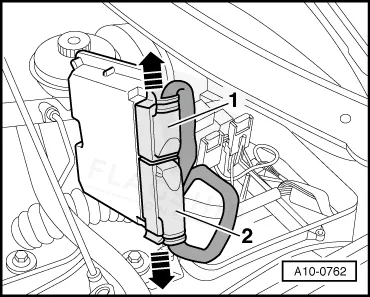

The Engine Control Module on the 2001 Audi allroad is typically located in the engine compartment, though the exact position requires consultation of the vehicle’s wiring diagrams and component location guides. Accessing the ECM involves removing surrounding components to reach the unit, which is mounted in a protected but accessible location. The replacement procedure for the allroad Quattro model requires approximately 1.1 hours of labor according to published book times. This includes the time needed to disconnect the battery, remove the faulty ECM, install the replacement unit, and reconnect all electrical connectors. Proper torque specifications must be followed when securing the new module to ensure adequate grounding and vibration resistance. After installation, all connector seals should be inspected and reconnected properly to prevent moisture intrusion, which is a common cause of ECM failures in this generation of Audi vehicles. The ECM relay and power supply circuits should be verified during installation to ensure the new module receives stable voltage.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | A6 | 0.3 hr |
| Engine Control Module Reset | A6 Quattro | 0.3 hr |
| Engine Control Module R&R | A6 | 1.2 hr |
| Engine Control Module R&R | A6 Quattro | 1.2 hr |
| Engine Control Module R&R | Allroad Quattro | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | A6 | 1.2 hr |
| Powertrain Control Module R&R | A6 Quattro | 1.2 hr |
Programming Requirements After Replacement
After replacing the ECM on your 2001 Audi allroad, the factory service procedure requires a relearn process to calibrate the new module to your vehicle’s specific engine characteristics. This relearn procedure takes approximately 0.5 hours and involves the scan tool initiating a baseline calibration where the new ECM learns the idle characteristics, throttle response, and fuel trim values specific to your engine. The vehicle must be driven through various operating conditions so the ECM can adjust its internal tables for optimal performance. a VIN-programmed replacement unit from Flagship One arrives pre-programmed with your vehicle’s specific VIN and configuration, which means the dealer programming steps that would normally add time and expense to the repair have already been completed. This allows you to install the unit and proceed directly to the relearn procedure, saving both time and money compared to purchasing a virgin module that requires dealer-side programming. The relearn process is essential for achieving proper cold starts, smooth idle, and correct fuel economy.
Symptoms of a Failing PCM
When the Engine Control Module on your 2001 Audi allroad begins to fail or malfunction, several distinct symptoms typically emerge. The most common indication is a no-start condition where the engine cranks normally but will not fire, often accompanied by a check-engine light that may be steady or flashing. Stalling is another frequent symptom, where the engine unexpectedly cuts out while driving and may restart after a brief period, only to stall again. Misfire codes such as P0300 (random/multiple cylinder misfire) or specific cylinder misfires often appear when the ECM cannot properly control fuel delivery or ignition timing. In some cases, the scan tool may not communicate with the ECM at all, indicating a failed module or a power supply issue. Shifting problems can also occur because the ECM coordinates with the transmission control module; you may experience harsh shifts, delayed engagement, or the transmission staying in a single gear. A failed ECM can also cause the engine to run rich or lean, leading to poor fuel economy, black smoke from the exhaust, or rough idle. If trouble code P0601 appears, indicating internal memory checksum failure, the ECM definitely requires replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2001 Audi allroad address issues related to the Motronic ECM power supply system. If diagnostic testing of the engine control system yields no fault codes in the sensors or actuators, the recommended repair is to replace the Motronic ECM power supply relay, designated as J271 in the factory documentation. This relay is responsible for providing stable voltage to the ECM, and failure of this component can produce symptoms identical to ECM failure, including no-start conditions and intermittent stalling. Before replacing the ECM itself, technicians are advised to verify proper relay function and power supply circuit integrity to avoid unnecessary module replacement. This bulletin applies to all 2001 Audi vehicles equipped with the Motronic engine management system.
Protecting the PCM in Your 2001 Audi allroad
- Maintain the charging system by keeping the battery terminals clean and the alternator producing correct voltage to prevent ECM power supply issues
- Inspect and clean ECM ground connections regularly, as poor grounding can cause intermittent malfunctions
- Avoid jump-starting the vehicle improperly, as voltage spikes can damage the ECM internal circuits
- Address check-engine lights promptly rather than ignoring them, as underlying issues can progress to ECM damage
- Keep engine compartment connector seals intact and free from debris to prevent moisture intrusion into the ECM and its connectors
- Use high-quality fuel and replace the fuel filter at recommended intervals to reduce ECM workload and potential carbon buildup
Frequently Asked Questions
Will a used ECM from a salvage yard work in my 2001 Audi allroad?
A used ECM from a salvage yard typically requires dealer programming to match your specific vehicle’s VIN and configuration. This programming service can be expensive and time-consuming. Additionally, used units may have unknown internal damage or mileage that affects reliability. A professionally remanufactured unit with a warranty is often a better choice.
Can I replace the ECM myself on my 2001 Audi allroad, or do I need a professional?
While mechanically skilled DIYers can perform the physical replacement, the subsequent relearn procedure typically requires a scan tool capable of bidirectional communication with the ECM. Without proper relearn, the engine may run poorly or fail to start. Professional installation ensures correctTorque, connector seating, and programming verification.
How do I know if my ECM is failing versus the power supply relay?
If your 2001 Audi allroad exhibits no-start or stalling symptoms, the ECM power supply relay (J271) should be tested before assuming ECM failure. A scan tool communication failure does not necessarily indicate ECM failure; it can also result from a failed relay or wiring issue. Following factory diagnostics helps avoid unnecessary ECM replacement.
What happens if I don’t replace a failing ECM in my 2001 Audi allroad?
A failing ECM can leave you stranded with a no-start vehicle, cause poor fuel economy from incorrect fuel delivery, or trigger emissions test failures. In some cases, the vehicle may enter limp-home mode, severely limiting power and making highway driving dangerous. Addressing ECM issues promptly prevents further damage and inconvenience.
Does the allroad’s Quattro all-wheel drive system share the ECM with other functions?
The 2001 Audi allroad uses a separate transmission control module for the Quattro all-wheel drive system. The Engine Control Module communicates with this unit for shifting coordination, but the Quattro system has its own control unit. This means the ECM focuses on engine management while the Quattro module handles torque distribution to the wheels.
When your 2001 Audi allroad requires ECM replacement, you have two primary options: repair the existing module if damage is minor and repairable, or install a replacement engine computer. Given the age of this vehicle, many owners opt for a professionally remanufactured unit that includes updated internal components to address common failure modes. Flagship One offers replacement ECMs pre-programmed with your vehicle’s VIN, eliminating dealer programming delays and costs. Consider your budget, timeline, and long-term reliability goals when deciding between repair and replacement options.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Audi allroad with a lifetime warranty, free shipping and no core charge. The full Audi allroad module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is essential to your 2001 Audi allroad’s operation, managing the complex 2.7L biturbo engine’s fuel and ignition systems. If diagnostic testing confirms ECM failure or if you are experiencing the symptoms described, addressing the issue promptly will restore reliable operation. Whether you choose remanufactured replacement or repair, understanding the process helps you make informed decisions about your vehicle’s repair.
