1999 GMC Sierra PCM Replacement Guide
The Powertrain Control Module in the 1999 GMC Sierra manages engine timing, fuel delivery and emission controls. Failure can cause loss of power, erratic idle, or complete no‑start conditions, often accompanied by diagnostic trouble codes.
Quick Summary
- Replacing the PCM typically requires about 1.4 labor hours for Sierra models.
- After removal, a relearn procedure of roughly 0.5 hours is needed.
- Factory cautions stress the need to protect the PCM from static and improper wiring.
- Programming of the EEPROM and password learning must be performed after install.
When a 1999 GMC Sierra experiences powertrain glitches, the PCM is a common culprit. This guide explains what the module does, how to locate and replace it, and what factory steps are required afterward. By following these points you can understand the labor involved, avoid common pitfalls, and know why a VIN‑programmed replacement from Flagship One often simplifies the process.
What the PCM Does in a 1999 GMC Sierra
In the 1999 GMC Sierra the Powertrain Control Module acts as the brain for the engine and transmission, interpreting sensor data to control fuel injection, ignition timing and emission functions. Its role is critical because any miscommunication can lead to drivability problems or emissions failures. Proper operation ensures the vehicle runs smoothly and meets regulatory standards. The module works alongside other control units, and replacement engine computers for the Sierra provide a direct path for aftermarket solutions.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the vehicle’s engine compartment, accessible for removal with standard tools. Labor estimates show a removal and reinstall time of 1.4 hours for both the 1500 and 2500 versions of the 1999 Sierra. After the unit is taken out, a relearn step is typically required, adding another 0.5 hours of labor. No torque specifications were supplied, so follow the vehicle’s service manual for fastener values.

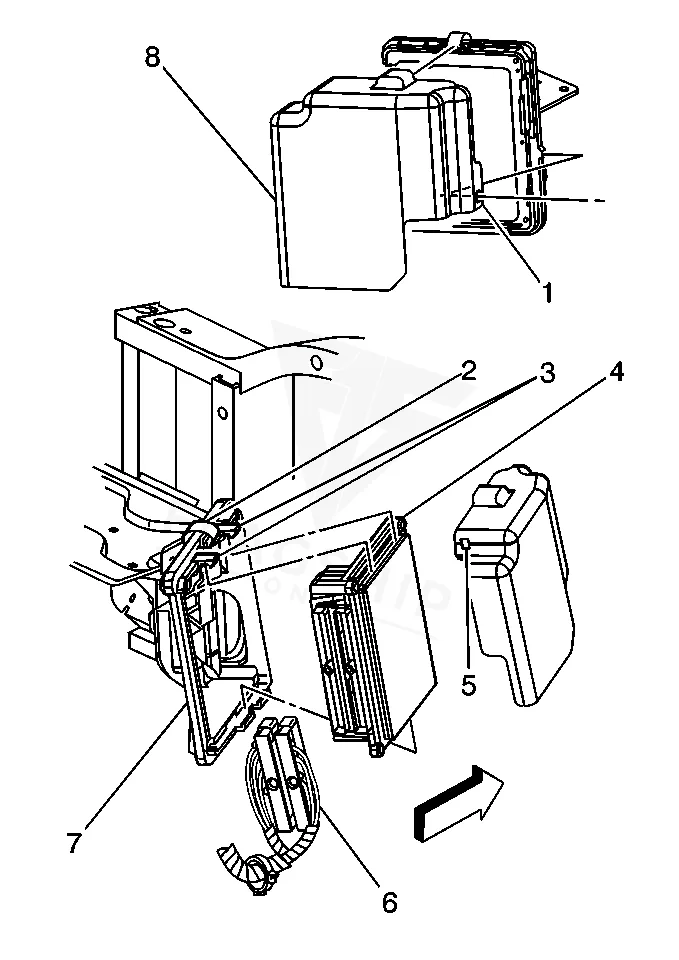

How to Reach the PCM on the 1999 GMC Sierra
- Remove any debris from the PCM connector surfaces before.
- Release the PCM cover mounting holes (1, 5) away from the.
- Release the PCM cover from the mounting bracket.
- Remove the PCM cover.
- Disconnect the PCM harness connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
- Remove the PCM from the engine compartment.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | GAS | 0.8 hr |
| Powertrain Control Module R&R | DIESEL | 1.4 hr |
| Powertrain Control Module R&R | Sierra 1500 | 1.4 hr |
| Powertrain Control Module R&R | Sierra 2500 | 1.4 hr |
| Powertrain Control Module Relearn | C1500 | 0.5 hr |
| Powertrain Control Module Relearn | C1500 Suburban | 0.5 hr |
| Powertrain Control Module Relearn | C2500 | 0.5 hr |
| Powertrain Control Module Relearn | C2500 Suburban | 0.5 hr |
Programming Requirements After Replacement
Factory service information requires programming the EEPROM and completing the PCM password learn procedure after any replacement. Flagship One units arrive VIN‑programmed, so those steps are already satisfied. When installing, you still need to verify the PCM password learn sequence is completed, but the unit itself does not need additional coding. a VIN‑programmed replacement unit simplifies the overall job.
Symptoms of a Failing PCM
A failing PCM in a 1999 GMC Sierra may cause the engine to refuse to start, stall unexpectedly, or produce rough idle. You might also see loss of communication with scan tools and erratic transmission shifting. One typical diagnostic indicator is Processor Core 1 Malfunction, which points to internal processor issues within the module.
Module Trouble Codes on the 1999 GMC Sierra
The following internal trouble codes have been documented for the 1999 GMC Sierra PCM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0608 | Module-internal fault | Full P0608 guide → |
| P0650 | Module-internal fault | Full P0650 guide → |
| P0654 | Module-internal fault | Full P0654 guide → |
| P1626 | Module-internal fault | — |
| P1631 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
| P1637 | Module-internal fault | — |
| P1639 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service Bulletin #99-06-04-053, dated Oct 26 1999, provides information on PCM reprogramming requirements for this model.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1999 GMC Sierra
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean all PCM ground connections regularly.
- Use proper battery terminals when adding aftermarket electrical accessories.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is typical for replacing the PCM in a 1999 GMC Sierra?
The book time for removing and installing the Powertrain Control Module on a 1999 Sierra is generally listed as 1.4 hours.
Do I need to perform a relearn after installing a new PCM in my 1999 Sierra?
Yes, the factory procedure includes a PCM relearn step that typically takes about 0.5 hours of labor.
What safety steps should I follow when handling the PCM?
Avoid touching connector pins or soldered components to prevent static damage, and ensure any added electrical equipment is connected at the battery with proper power and ground.
When the PCM in your 1999 GMC Sierra fails, you can choose a professional repair or a refurbished replacement. Both options aim to restore the vehicle’s powertrain control, but a VIN‑programmed unit from Flagship One eliminates the need for post‑install EEPROM programming and password learning, reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1999 GMC Sierra with a lifetime warranty, free shipping and no core charge. The full GMC Sierra module lineup covers other engine configurations as well.
Final Thoughts
A faulty PCM can leave a 1999 GMC Sierra inoperable, but proper replacement and programming restore normal operation. Consider a Flagship One replacement to simplify the process and get back on the road quickly.
