1996 Chevrolet Corvette PCM Replacement & Common Failure Signs
The Powertrain Control Module (PCM) in the 1996 Chevrolet Corvette manages engine and transmission functions. Failures may cause drivability issues, including stalling, misfires, or failure to start, often triggered by electrical faults or internal component wear.
Quick Summary
- PCM controls engine and transmission operations in the 1996 Corvette
- Replacement typically requires less than one hour of labor
- Factory relearn procedure adds additional time after installation
- Electrostatic discharge or improper power disconnection can damage the module
- Flagship One units arrive pre-programmed to the vehicle’s VIN
If your 1996 Chevrolet Corvette is experiencing unexplained stalling, rough idling, or a no-start condition, the Powertrain Control Module (PCM) may be at fault. This critical component governs fuel delivery, ignition timing, and transmission behavior. Understanding its role, location, and replacement process helps you make informed decisions about repairs. You’ll also learn how to protect the module from damage and recognize symptoms that suggest it’s time for a replacement.
What the PCM Does in a 1996 Chevrolet Corvette
The PCM in your 1996 Chevrolet Corvette acts as the brain for both engine and transmission functions. It processes data from sensors to optimize fuel injection, spark timing, and shift points, ensuring smooth operation. A failing PCM may disrupt these processes, leading to poor performance or even a complete breakdown. When replacement becomes necessary, selecting replacement engine computers for the Corvette ensures compatibility and reliability. The module’s design includes sensitive electronics, so proper handling is essential to avoid damage during installation.
Where the PCM Is Located and What Replacement Involves

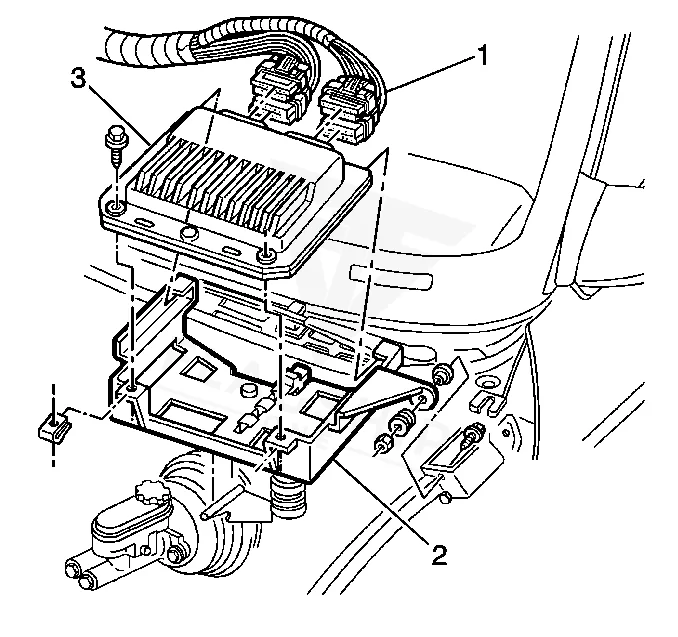

The PCM in the 1996 Chevrolet Corvette is located in the engine compartment, typically mounted near the firewall. Replacing it involves disconnecting the battery, removing the module’s electrical connectors, and unbolting the unit from its mount. Labor time for removal and reinstallation is estimated at 0.8 to 0.9 hours, depending on whether the Engine Control Module or Powertrain Control Module is being serviced. After installation, a relearn procedure may be required, adding approximately 0.5 hours to the process.
How to Reach the PCM on the 1996 Chevrolet Corvette
- Remove the PCM from the mounting hardware.
- Disconnect the Harness connectors from the PCM.
- Remove the PCM from the engine compartment.
- Remove the KS Module access cover.
- Remove the KS Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM in your 1996 Chevrolet Corvette, the factory requires a relearn procedure to synchronize the module with the vehicle’s systems. This step ensures proper communication with sensors and actuators. However, a VIN-programmed replacement unit from Flagship One arrives ready to install, eliminating the need for additional programming. This saves time and reduces the risk of errors during the setup process, allowing your vehicle to return to normal operation more quickly.
Symptoms of a Failing PCM
A failing PCM in the 1996 Chevrolet Corvette may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice erratic shifting, poor fuel economy, or warning lights on the dashboard. In some cases, the vehicle may enter a limp-home mode to prevent further damage. If the module’s internal memory is corrupted, it may trigger an internal control module memory check error, which often requires replacement to resolve. Prompt diagnosis is key to avoiding further drivability issues.
Module Trouble Codes on the 1996 Chevrolet Corvette
The 1996 Chevrolet Corvette’s PCM may log specific trouble codes when internal faults occur. These codes help identify issues within the module itself, rather than external sensor or wiring problems.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 1996 Chevrolet Corvette address PCM-related procedures. Bulletin #99-06-04-053 covers reprogramming guidelines for the module, while #83-81-32 introduces updated connector service kits to improve reliability. These bulletins provide technicians with recommended practices for servicing the PCM and its electrical connections.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
Protecting the PCM in Your 1996 Chevrolet Corvette
- Keep the vehicle’s charging system in good condition to avoid voltage spikes
- Ensure all electrical grounds and connectors are clean and secure
- Avoid jump-starting the vehicle with improper voltage or polarity
- Address trouble codes promptly to prevent further module damage
- Handle the PCM with care to avoid electrostatic discharge
- Maintain the integrity of connector seals to prevent moisture intrusion
Frequently Asked Questions
How do I know if my 1996 Corvette’s PCM needs replacement?
Common signs include stalling, no-start conditions, or erratic shifting. A scan tool may reveal internal module codes like P0601. If these symptoms persist after checking sensors and wiring, the PCM may be faulty.
Can I replace the PCM in my 1996 Corvette myself?
Replacement is straightforward but requires careful handling to avoid electrostatic damage. Disconnecting the battery and following factory procedures is essential. If you’re unfamiliar with automotive electronics, professional installation is recommended.
Why does the PCM in my 1996 Corvette need a relearn procedure?
The relearn procedure synchronizes the new PCM with the vehicle’s sensors and actuators. This ensures proper fuel delivery, ignition timing, and transmission behavior. Skipping this step may result in poor performance or drivability issues.
If your 1996 Chevrolet Corvette is exhibiting PCM-related symptoms, you have options for repair. A refurbished replacement unit can restore functionality without the cost of a new module. Given the labor time involved, choosing a pre-programmed unit simplifies the process and reduces downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Chevrolet Corvette with a lifetime warranty, free shipping and no core charge. The full Chevrolet Corvette module lineup covers other engine configurations as well.
Final Thoughts
The 1996 Chevrolet Corvette relies on its PCM for smooth operation, and recognizing failure symptoms early can prevent further issues. Whether you opt for a refurbished replacement or professional repair, addressing the problem promptly ensures your vehicle remains reliable. Proper handling and electrical care will help extend the life of the new module.
