1998 Buick Park Avenue PCM Replacement Guide
The powertrain control module in a 1998 Buick Park Avenue manages engine and transmission operations. Failure typically results from internal circuitry loss, causing loss of sensor data, erratic shifting, or a no‑start condition. Replacing the PCM restores electronic command of fuel, ignition and gear control.
Quick Summary
- PCM removal may take about 0.7 hours of labor.
- Factory removal accesses the module beside the air cleaner.
- Electrostatic precautions are required when handling the PCM.
- After install, a relearn of engine oil life is needed.
When a 1998 Buick Park Avenue experiences powertrain control issues, the PCM often becomes the focus of diagnosis. This guide explains where the module lives, what labor is involved, and the programming steps that follow a replacement. By reading this, you will understand the precautions, time estimates, and why a correctly programmed unit matters for your vehicle’s performance.
What the PCM Does in a 1998 Buick Park Avenue
In the 1998 Buick Park Avenue, the PCM acts as the central computer that interprets sensor inputs and directs fuel injection, ignition timing, and transmission shift points. It ensures smooth operation across all driving conditions, and any internal fault can interrupt these commands, leading to drivability problems. Proper function is essential for emissions compliance and fuel efficiency. Replacement units are often sourced as 1998 Buick Park Avenue replacement PCM to match the vehicle’s specifications.

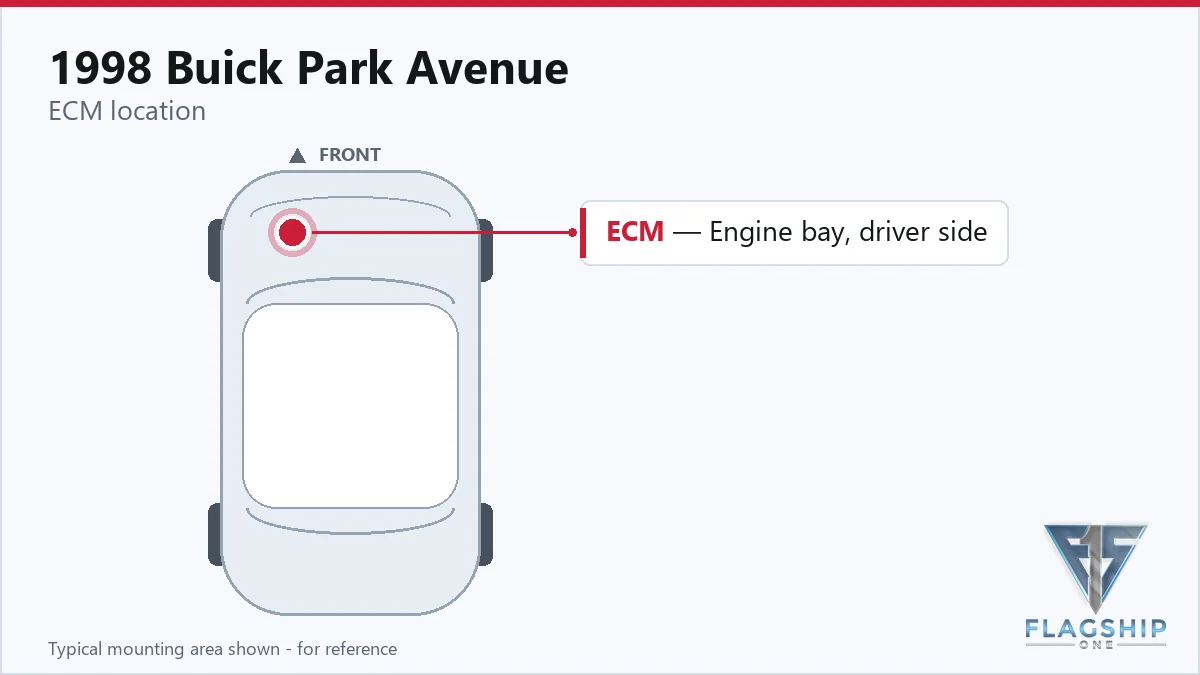

Where the PCM Is Located and What Replacement Involves
The factory removal procedure reaches the PCM located next to the air cleaner assembly. Access typically requires removing the air cleaner housing, then disconnecting the PCM connectors with the ignition turned off. Labor time for removal and reinstall is listed as 0.7 hours, while a relearn operation adds another 0.5 hours. Technicians should avoid touching connector pins or soldered components to prevent static discharge, and always turn the ignition off before handling any PCM connections.
How to Reach the PCM on the 1998 Buick Park Avenue
- Disconnect the negative battery cable.
- Remove the screws from the air cleaner top cover.
- Remove the air cleaner top cover.
- Disconnect the harness connectors from the PCM.
- Remove the PCM from the air cleaner housing assembly.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory process calls for a powertrain control module relearn and recording the remaining engine oil life. Flagship One supplies units that arrive already VIN‑programmed, so these steps are completed before the part reaches your shop. This eliminates the need for additional programming time on the bench.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
A failing PCM in a 1998 Buick Park Avenue may cause the engine to refuse to start, stall unexpectedly, or trigger misfire codes. Communication with scan tools can be lost, and transmission shifting may become erratic. One diagnostic indication could be the presence of P0601 internal fault on a scan, pointing to internal processor issues within the module.
Module Trouble Codes on the 1998 Buick Park Avenue
The following trouble codes are documented for the PCM in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0654 | Module-internal fault | Full P0654 guide → |
| P1602 | Module-internal fault | — |
| P1604 | Module-internal fault | — |
| P1610 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1630 | Module-internal fault | — |
| P1631 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
| P1639 | Module-internal fault | — |
| P1641 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service bulletin #99-06-04-053, dated Oct 26 1999, provides information on PCM reprogramming procedures for the 1998 Buick Park Avenue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1998 Buick Park Avenue
- Maintain a healthy charging system to avoid voltage spikes.
- Keep ground connections clean and secure.
- Use surge protectors when jump‑starting the vehicle.
- Address any PCM‑related codes promptly.
- Inspect connector seals for wear and replace if needed.
Frequently Asked Questions
What does a PCM failure mean for my 1998 Buick Park Avenue?
It can disrupt engine timing, fuel delivery and transmission control, leading to no‑start conditions, rough idle, or shifting problems.
How long does it take to replace the PCM on a 1998 Buick Park Avenue?
Labor is typically recorded as 0.7 hours for removal and reinstall, plus additional time for any required relearn procedures.
Do I need to reset oil life after installing a new PCM?
Yes, the factory procedure requires recording the remaining oil life; otherwise the system defaults to 100%.
When the PCM in a 1998 Buick Park Avenue needs attention, you can choose a repair that follows factory steps or opt for a refurbished replacement that meets the same specifications. Both paths aim to restore reliable engine and transmission control while respecting the vehicle’s original design.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Buick Park Avenue with a lifetime warranty, free shipping and no core charge. The full Buick Park Avenue module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in a 1998 Buick Park Avenue can resolve a range of drivability issues. Consider a properly programmed unit to simplify post‑install steps and get your vehicle back on the road.
