2001 Buick Park Avenue PCM Relearn and Replacement Guide
In the 2001 Buick Park Avenue, the powertrain control module manages engine timing, fuel delivery, and emission controls. Failure of this module can cause loss of power, stalling, or an inability for diagnostic tools to read freeze‑frame data, often triggering internal fault codes.
Quick Summary
- PCM relearn may take about half an hour after installation.
- Factory cautions stress not to interrupt programming or disturb the tool harness.
- Off‑board programming is required when the vehicle is not present.
- Service bulletin #04-06-04-024 addresses freeze‑frame communication issues.
When a 2001 Buick Park Avenue experiences erratic engine behavior or diagnostic scan‑tool errors, the powertrain control module often becomes the focus. This guide explains where the PCM resides, what labor is involved in its removal and replacement, and the programming steps required to return the vehicle to normal operation. You will learn the typical time commitments, the factory cautions to observe, and how Flagship One’s VIN‑programmed units can simplify the process.
What the PCM Does in a 2001 Buick Park Avenue
The powertrain control module in a 2001 Buick Park Avenue controls fuel injection, ignition timing, and emission functions, ensuring the engine runs smoothly and meets regulatory standards. It also stores diagnostic information that service equipment reads during troubleshooting. Proper operation is essential for fuel economy and emissions compliance. replacement powertrain control modules for the 2001 Buick Park Avenue help maintain these functions when the original unit fails.

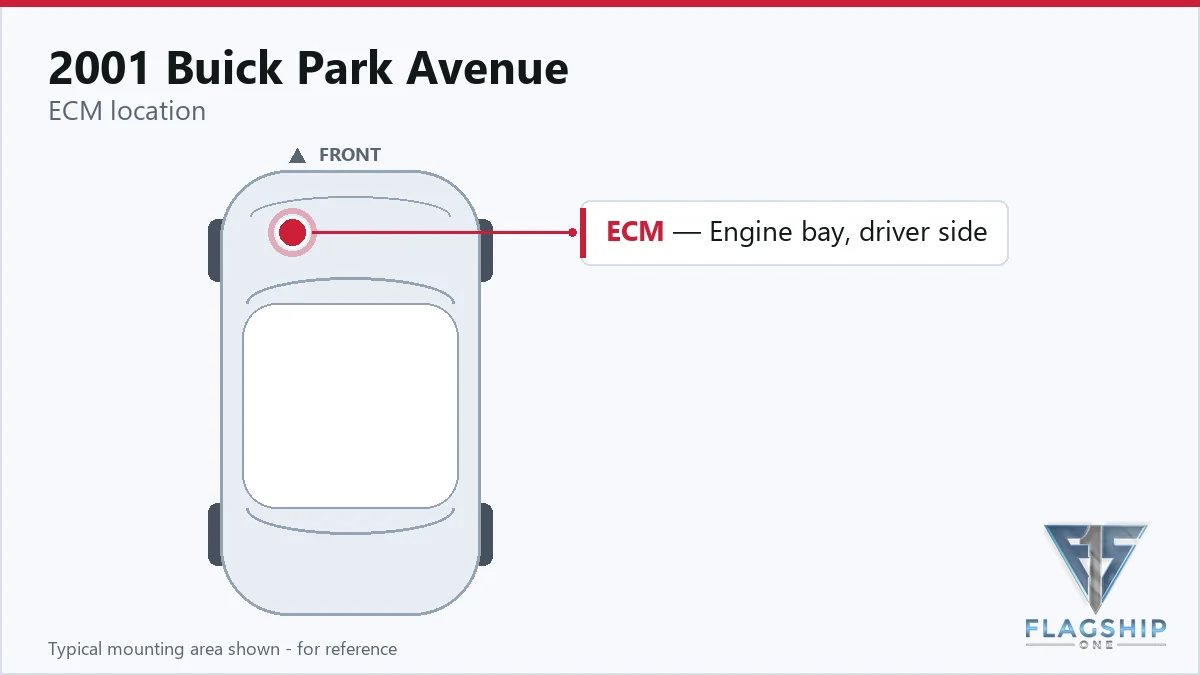

Where the PCM Is Located and What Replacement Involves
The factory removal procedure accesses the control module adjacent to the air cleaner assembly. Removing the module typically requires 0.7 hours for a powertrain control module removal and reinstall. After removal, reinstalling the module and securing all connections follows the same time estimate. Ensure the tool harness remains undisturbed during the process, as noted in the factory cautions.
How to Reach the PCM on the 2001 Buick Park Avenue
- Disconnect the negative battery cable.
- Remove the screws from the air cleaner top cover.
- Remove the air cleaner top cover.
- Disconnect the harness connectors from the PCM.
- Remove the PCM from the air cleaner housing assembly.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory process calls for a powertrain control module relearn lasting about 0.5 hours and may require off‑board programming if the vehicle is not present. Flagship One provides a VIN‑programmed replacement unit that already includes the necessary calibration, eliminating the need for additional on‑site programming steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2001 Buick Park Avenue include engine no‑start conditions, intermittent stalling, and loss of communication with scan tools. Drivers may also notice reduced power or irregular shifting. One common fault is internal processor memory error, which appears when the module cannot execute its control algorithms correctly.
Module Trouble Codes on the 2001 Buick Park Avenue
The following internal trouble codes have been documented for the 2001 Buick Park Avenue PCM:
Factory Service Bulletins Worth Knowing
Service bulletin #04-06-04-024, dated April 7, 2004, describes a condition where the PCM does not properly communicate diagnostic freeze‑frame information to non‑Tech2 service equipment. The bulletin recommends reprogramming the PCM to resolve the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-024 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Freeze Frame | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
Protecting the PCM in Your 2001 Buick Park Avenue
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground connections and module pins regularly.
- Avoid jump‑starting the vehicle without proper voltage regulation.
- Address any diagnostic codes promptly before they recur.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
Can I replace the PCM on my 2001 Buick Park Avenue without a scan tool?
Physical replacement is possible, but the module will need a relearn or off‑board programming step to function correctly. Using a Tech 2 or an off‑board adapter is recommended.
What does the factory caution about turning off the ignition during programming mean for me?
If the ignition is turned off while the PCM is being programmed, the process may fail and could damage the module. Keep the ignition on until the procedure completes successfully.
Is the off‑board programming method required for every PCM replacement on this model?
Off‑board programming is used when the vehicle is not present for the procedure. If the car is on the lift and all connections are secure, on‑board programming may be performed instead.
When the PCM in your 2001 Buick Park Avenue needs attention, you can either have a qualified shop perform the relearn and programming steps or choose a refurbished replacement that arrives pre‑programmed. Both options restore the vehicle’s control functions, but a VIN‑programmed unit can reduce shop time and minimize the risk of programming errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Buick Park Avenue with a lifetime warranty, free shipping and no core charge. The full Buick Park Avenue module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM issues on a 2001 Buick Park Avenue helps restore reliable engine performance and diagnostic capability. Consider a pre‑programmed replacement to simplify the repair and ensure proper function.
