1997 Dodge Grand Caravan 2.4L PCM/ECM Guide – Failure & Replacement
The PCM (Powertrain Control Module) in your 1997 Dodge Grand Caravan 2.4L is the main computer that manages engine and transmission operation. When it fails, the vehicle may not start, run poorly, or set internal trouble codes like P0601. Replacement requires a relearn procedure.
Quick Summary
- The PCM controls fuel injection, ignition timing, and transmission shift points on the 2.4L Grand Caravan.
- Failure symptoms include no-start, stalling, misfire codes, and loss of communication with a scan tool.
- Factory labor time for PCM removal and replacement is 0.6 hours; a relearn takes 0.5 hours.
- Two service bulletins address flash programming recovery and false MIL illumination with specific hex codes.
- Flagship One supplies PCMs that are pre-programmed with your VIN, eliminating the need for a dealer relearn.
If your 1997 Dodge Grand Caravan with the 2.4L engine is experiencing intermittent stalling, a no-start condition, or a check engine light that won’t go away, the Powertrain Control Module (PCM) may be at fault. The PCM is the central computer that coordinates engine and transmission functions, and on this generation of Grand Caravan it is known to develop internal faults over time. This article explains what the PCM does in your specific vehicle, where it is located, what symptoms to watch for, and what the factory replacement procedure involves. You will also learn about two relevant service bulletins and the internal trouble codes that point to a failed module. Understanding these details helps you decide whether to repair or replace the PCM, and how a pre-programmed unit from Flagship One can save you time and money.
What the PCM Does in a 1997 Dodge Grand Caravan
The Powertrain Control Module (PCM) in your 1997 Dodge Grand Caravan 2.4L is a single computer that integrates engine control and transmission control into one unit. It receives signals from sensors like the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injector pulse width, ignition timing, and idle speed. It also controls the automatic transmission’s shift solenoids and torque converter clutch. On this vehicle, the PCM communicates with the body control module and the instrument cluster via the CCD bus. When the PCM fails, it may lose its programming or develop internal circuit damage, leading to a range of drivability issues. For a reliable fix, you can choose from replacement engine computers for the Grand Caravan that are built to match your original specifications. The PCM is critical for emissions compliance and fuel economy, so a faulty unit should be addressed promptly.
Where the PCM Is Located and What Replacement Involves
The PCM on the 1997 Dodge Grand Caravan 2.4L is typically located under the hood, mounted on the driver-side inner fender or near the battery. Access requires removing the air cleaner housing and possibly the battery tray. The factory labor time for PCM removal and replacement is 0.6 hours. After installing the new module, a relearn procedure is required, which the factory lists at 0.5 hours. This relearn involves using a DRBIII scan tool to program the VIN and perform a quick-learn of the throttle and transmission adaptives. No special torque values for the mounting bolts are provided in the available data, but standard practice is to tighten them securely without over-torquing. Ensure the connector is fully seated and the locking tab clicks into place.
How to Reach the PCM on the 1997 Dodge Grand Caravan
- Disconnect both cables from battery, negative cable first.

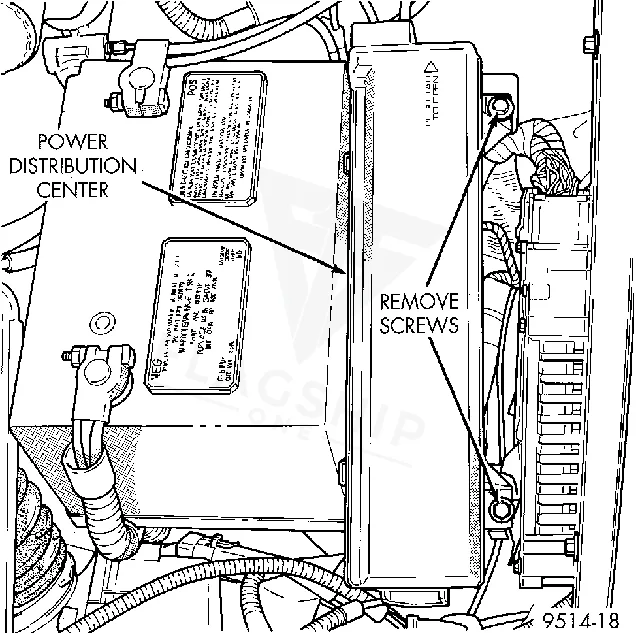

- Remove 2 screws holding Power Distribution Center (PDC) to bracket distributioncenter.
- Remove heat shield from battery heatshieldbattery.
- Remove nut and clamp holding battery to battery tray clampnut.
- Remove battery from vehicle.
- Rotate PDC toward center of vehicle to remove from rear bracket.
- Pull PDC rearward to remove from front bracket.
- Remove both way connectors.
- Remove 3 screws holding PCM to fender.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.6 hr |
| Engine Control Module R&R | Grand Caravan | 0.6 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.6 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.6 hr |
Programming Requirements After Replacement
After replacing the PCM on your 1997 Dodge Grand Caravan 2.4L, the factory procedure requires a flash programming step using a DRBIII scan tool. This process loads the correct calibration for your vehicle’s engine and transmission, and it also performs a VIN write and a quick-learn of the throttle position. Without this step, the vehicle may run poorly or not start. Flagship One eliminates this requirement by supplying a VIN-programmed replacement unit that arrives with your vehicle’s original calibration already installed. You simply install the module, reconnect the battery, and start the engine. The 0.5-hour relearn time is no longer needed, saving you time and the cost of a dealer visit.
Symptoms of a Failing PCM
A failing PCM in the 1997 Dodge Grand Caravan 2.4L can cause a variety of symptoms. The engine may crank but not start, or it may start and stall after a few seconds. You might notice intermittent misfires, rough idle, or hesitation during acceleration. The transmission may shift erratically or fail to shift at all. The check engine light often illuminates with codes that are internal to the module, such as internal controller fault P0601. Other common symptoms include the scan tool being unable to communicate with the PCM, the cooling fan running constantly, or the fuel pump not priming. If you experience any of these issues, especially in combination, the PCM should be tested or replaced.
Module Trouble Codes on the 1997 Dodge Grand Caravan
The following trouble codes are documented as module-internal faults for the 1997 Dodge Grand Caravan 2.4L. These codes indicate a problem within the PCM itself rather than a sensor or circuit issue.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P1695 | Module-internal fault | — |
| P1696 | Module-internal fault | — |
| P1697 | Module-internal fault | — |
| P1698 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
| 18-04-97 | 18-04-97 Erroneous MIL Illumination With Hex Code $29, $2a, $2b | — |
Protecting the PCM in Your 1997 Dodge Grand Caravan
- Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Ensure all ground connections under the hood are clean and tight, especially the PCM ground wire.
- Avoid jump-starting the vehicle with a running donor car; connect cables only with both engines off.
- Address any trouble codes promptly before they lead to further PCM stress.
- Inspect the PCM connector for corrosion or bent pins whenever you work near the module.
- Use a dielectric grease on the connector seals to keep moisture out.
Frequently Asked Questions
How do I know if my 1997 Dodge Grand Caravan 2.4L PCM is bad?
Common signs include a no-start condition, stalling, misfire codes, and the scan tool failing to communicate with the PCM. If you have internal codes like P0601 or P1695, the module is likely faulty.
Can I replace the PCM on my 1997 Grand Caravan myself?
Yes, the PCM is accessible under the hood and the factory labor time is 0.6 hours. However, you will need a DRBIII scan tool to program the new module unless you buy a pre-programmed unit from Flagship One.
What does the relearn procedure involve for a 1997 Grand Caravan PCM?
The factory relearn takes 0.5 hours and requires a DRBIII tool to write the VIN and perform a quick-learn of the throttle and transmission adaptives. Without it, the vehicle may not run correctly.
Will a used PCM from a junkyard work on my 1997 Dodge Grand Caravan?
A used PCM may work if it comes from an identical vehicle, but it will still need to be programmed with your VIN and calibration. There is also risk of the used unit failing soon. A new or refurbished pre-programmed unit is more reliable.
What are the internal trouble codes for the 1997 Grand Caravan PCM?
Documented codes include P0600, P0601, P1695, P1696, P1697, and P1698. These indicate internal PCM faults such as memory errors or communication failures.
When your 1997 Dodge Grand Caravan 2.4L needs a PCM, you have two paths: repair the original module or replace it with a refurbished unit. Repair is often temporary, while a replacement from Flagship One comes pre-programmed with your VIN, eliminating the 0.5-hour dealer relearn. This saves you time and gets your minivan back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Dodge Grand Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Grand Caravan module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 1997 Dodge Grand Caravan 2.4L is a vital component that controls engine and transmission operation. Recognizing the symptoms of failure and understanding the replacement process helps you make an informed decision. Flagship One offers a direct solution with VIN-programmed units that skip the factory relearn step.
