1994 Dodge Grand Caravan PCM & ECM Replacement Guide
The powertrain control module (PCM) in your 1994 Dodge Grand Caravan manages fuel delivery, ignition timing, and emissions systems. Failure may cause stalling, poor performance, or a no-start condition, often without warning.
Quick Summary
- PCM controls engine and transmission functions in the 1994 Grand Caravan
- Replacement typically takes 0.6 hours for R&R plus 0.5 hours for relearn
- Module is located underhood on the driver-side inner fender panel
- Factory procedure requires a relearn after installation
- Pre-programmed units eliminate the need for post-install programming
If your 1994 Dodge Grand Caravan is experiencing unexplained stalling, rough idling, or a no-start condition, the powertrain control module (PCM) may be the culprit. This critical component acts as the brain of your vehicle’s engine and transmission, managing fuel delivery, ignition timing, and emissions systems. Replacing it involves straightforward labor, but understanding the location, installation steps, and post-replacement requirements can save you time and frustration. Knowing what to expect helps you make informed decisions, whether you’re tackling the job yourself or working with a mechanic.
What the PCM Does in a 1994 Dodge Grand Caravan
The powertrain control module (PCM) in your 1994 Dodge Grand Caravan integrates engine and transmission control into a single unit. It processes data from sensors to optimize fuel mixture, ignition timing, and shift points, ensuring smooth operation and emissions compliance. When this module fails, you may notice erratic engine behavior, poor fuel economy, or even a complete loss of power. Replacing it with replacement PCMs for the Grand Caravan restores proper function, but the new unit must be programmed to your vehicle’s specifications to avoid drivability issues.
Where the PCM Is Located and What Replacement Involves

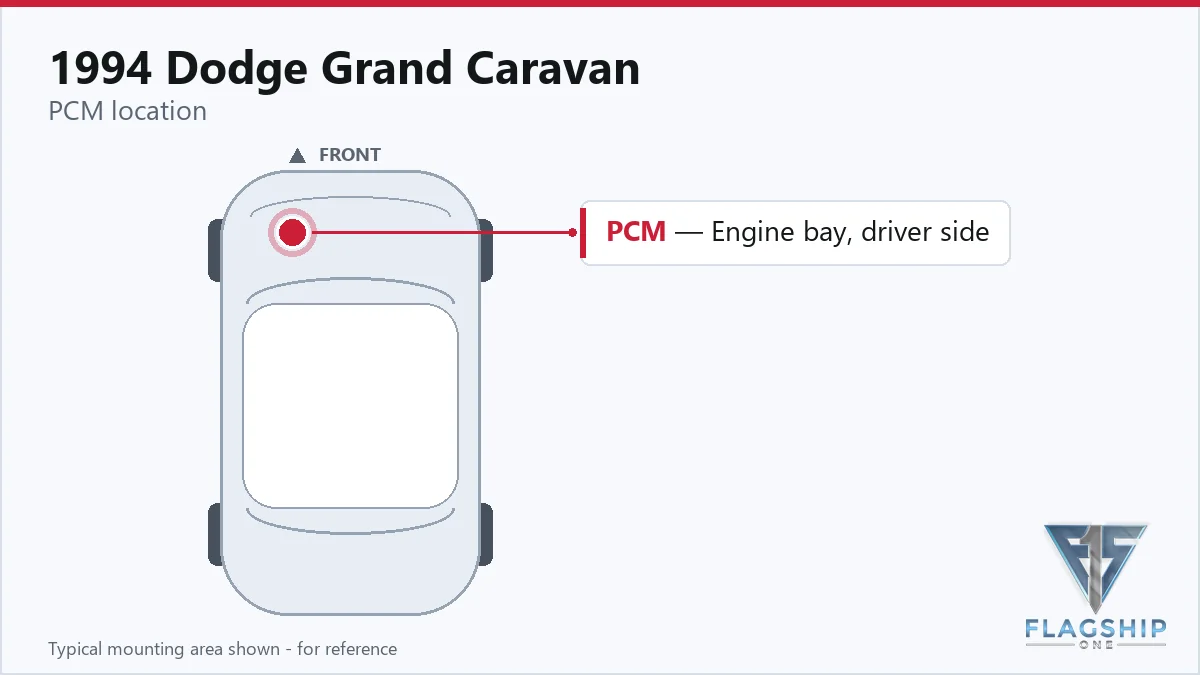

The PCM in your 1994 Dodge Grand Caravan is mounted underhood on the driver-side inner fender panel. Replacement involves disconnecting the battery, removing the module’s electrical connector, and unbolting the unit from its mounting location. Labor time for removal and reinstallation (R&R) is typically 0.6 hours. After installation, the module must be relearned to the vehicle, a process that adds another 0.5 hours. No special tools are required, but ensuring a clean, secure connection is critical to avoid future issues.
How to Reach the PCM on the 1994 Dodge Grand Caravan
- Remove air cleaner.
- Depress tab on top of solenoid and slide the so- lenoid downward out of mounting bracket.
- Disconnect idle air control motor connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.5 hr |
| Engine Control Module R&R | Grand Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.6 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.6 hr |
Programming Requirements After Replacement
After replacing the PCM in your 1994 Dodge Grand Caravan, the factory procedure requires a relearn process to synchronize the module with your vehicle’s systems. This step, which takes about 0.5 hours, ensures proper engine and transmission operation. However, if you install a VIN-programmed replacement unit, this step is already completed, saving you time and potential headaches. Always verify the unit is matched to your vehicle’s specifications to avoid compatibility issues.
Symptoms of a Failing PCM
A failing PCM in your 1994 Dodge Grand Caravan may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor fuel economy, erratic shifting, or the check engine light illuminating. In some cases, the vehicle may enter a limp-home mode, limiting power to prevent damage. If the module fails completely, your scan tool may not communicate with the vehicle at all. One specific fault tied to this module is an internal control module memory check error, which often indicates a need for replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 1994 Dodge Grand Caravan address specific PCM-related issues. Bulletin #18-037-05 covers flash programming failure recovery using the DRBIII scan tool, which may be necessary if the module loses its programming during updates. Another bulletin, #18-01-97, discusses erroneous check engine light illumination tied to an EGR system fault, which may not always indicate a mechanical issue but rather a module calibration error.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
| 18-01-97 | 18-01-97 Erroneous MIL Illumination With Hex Code $2e-EGR System Failure | — |
Protecting the PCM in Your 1994 Dodge Grand Caravan
- Maintain a healthy charging system to avoid voltage spikes that can damage the PCM
- Keep electrical connectors clean and securely fastened to prevent corrosion or poor contact
- Avoid jump-starting with improper voltage, as this can overload the module
- Address check engine lights promptly to prevent minor issues from escalating
- Ensure the PCM connector seals are intact to protect against moisture intrusion
- Use dielectric grease on connectors to reduce the risk of corrosion over time
Frequently Asked Questions
Can I replace the PCM in my 1994 Dodge Grand Caravan myself?
Replacing the PCM is a straightforward process if you’re comfortable working with electrical components. The module is accessible underhood, and the job typically takes less than an hour. However, you’ll need to ensure the replacement unit is programmed to your vehicle’s VIN to avoid drivability issues.
Why does my 1994 Grand Caravan stall after PCM replacement?
If your vehicle stalls after a PCM replacement, the module may not have been properly relearned to the vehicle’s systems. The factory procedure requires a relearn process, which can take up to 0.5 hours. Skipping this step may result in poor engine performance or stalling.
How do I know if my 1994 Dodge Grand Caravan PCM is failing?
Common signs of PCM failure include a no-start condition, rough idling, poor fuel economy, or the check engine light illuminating. If your scan tool cannot communicate with the vehicle, the PCM may be completely non-functional. Testing other components first can help rule out simpler issues.
If your 1994 Dodge Grand Caravan is experiencing PCM-related issues, you have options. A repair may be possible if the module hasn’t suffered internal damage, but replacement is often the most reliable solution. Opting for a pre-programmed unit ensures compatibility and eliminates the need for post-install programming, saving you time and effort.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Dodge Grand Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Grand Caravan module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 1994 Dodge Grand Caravan plays a critical role in engine and transmission performance. If you’re facing symptoms like stalling or a no-start condition, replacement may be necessary. Understanding the process and requirements helps you make the best choice for your vehicle’s needs.
