1996 Pontiac Bonneville PCM Replacement Guide
The powertrain control module in the 1996 Pontiac Bonneville manages engine timing, fuel delivery, and transmission coordination. When the PCM fails, the vehicle may lose driveability, trigger multiple fault codes, and prevent the engine from starting or running smoothly.
Quick Summary
- PCM removal typically requires about 1.1 hours of labor.
- Relearn procedures add roughly one hour total for both ECM and PCM.
- Factory cautions advise disconnecting power and avoiding static discharge.
- Service bulletin #99-06-04-053 covers PCM reprogramming for this model.
When a 1996 Pontiac Bonneville exhibits erratic performance, you may suspect the powertrain control module. Understanding how the PCM works and what the repair entails helps you decide between a new unit or a refurbished replacement. This guide outlines the module’s role, the steps to replace it, the post‑install programming required, and practical tips to keep it operating reliably.
What the PCM Does in a 1996 Pontiac Bonneville
In the 1996 Pontiac Bonneville the powertrain control module acts as the vehicle’s brain, interpreting sensor data to control fuel injection, ignition timing, and transmission shifting. It ensures the engine runs within design parameters and communicates with diagnostic tools. Because it governs critical functions, any fault can lead to drivability issues, making the module a key component to monitor. The module is part of the broader engine control system and may be swapped with a compatible unit such as a 1996 Pontiac Bonneville engine control module when necessary.
Where the PCM Is Located and What Replacement Involves
The PCM resides within the engine compartment, typically mounted near the firewall for easy access to wiring harnesses. Removal involves disconnecting the battery, releasing the connector pins, and unbolting the unit, which aligns with the listed 1.1 hour labor time for removal and 1.0 hour for replacement of the powertrain control module. Reinstallation follows the reverse order, ensuring all connectors are seated securely before re‑connecting power.
How to Reach the PCM on the 1996 Pontiac Bonneville

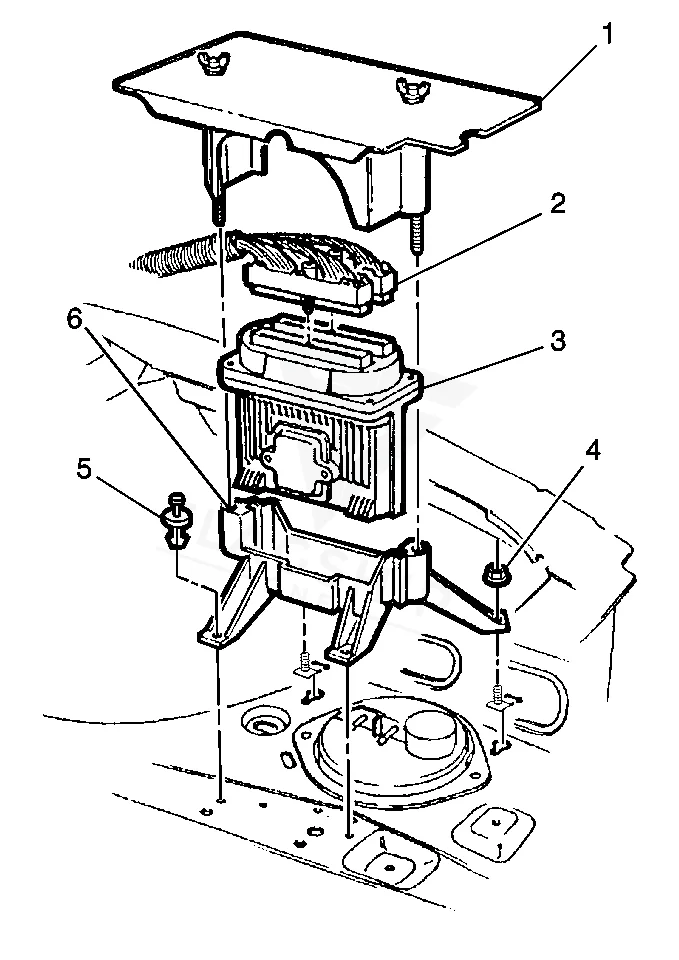

- Disconnect the negative battery cable.
- Remove the PCM sight shield.
- Remove the PCM from the mounting bracket.
- Disconnect the harness connectors from the PCM.
- Remove the PCM from the engine compartment.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.0 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a relearn of both the engine control module (0.5 hours) and the powertrain control module (0.5 hours). Flagship One units arrive pre‑programmed for the vehicle’s VIN, so those relearn steps are already completed, eliminating the need for additional coding. The process also includes a PCM relearn of 0.5 hours, which is covered by the supplied unit, meaning the vehicle can be returned to service promptly with a a VIN-programmed replacement unit in place.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 1996 Pontiac Bonneville include a no‑start condition, rough idle, stalling under load, and transmission shift irregularities. You may also notice loss of communication with a scan tool or see multiple fault codes appear. One common fault is indicated by code P0601 fault, which points to a processor core issue within the module and often triggers the broader symptom set.
Module Trouble Codes on the 1996 Pontiac Bonneville
The following diagnostic trouble codes are commonly reported for the PCM in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P1619 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1629 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
| P1639 | Module-internal fault | — |
| P1641 | Module-internal fault | — |
| P1643 | Module-internal fault | — |
| P1645 | Module-internal fault | — |
| P1651 | Module-internal fault | — |
| P1652 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Service bulletin #99-06-04-053, dated Oct 26 1999, provides information on PCM reprogramming for the 1996 Pontiac Bonneville. This bulletin outlines the steps required to update the module’s software after replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
