1996 GMC Sonoma PCM and ECM Replacement Guide
In the 1996 GMC Sonoma, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and transmission shifting. A failure typically results in loss of engine control, causing no‑start conditions, rough idle, or erratic shifting. The modules contain low‑voltage circuitry that is sensitive to electrostatic discharge and improper handling.
Quick Summary
- PCM removal under the hood takes about one hour; under the instrument panel about 1.8 hours.
- ECM replacement requires roughly 0.9 hours from the hood or 1.8 hours from the instrument panel.
- Relearning the PCM after installation adds a half‑hour to the job.
- The PCM sits in the right‑hand fender well, making access dependent on panel removal.
When a 1996 GMC Sonoma exhibits powertrain glitches, the PCM or ECM often becomes the focus of diagnosis. This guide explains what these modules do, where they live, and what steps are needed to replace them safely. You will learn the typical labor effort, the factory cautions that protect the electronics, and how a VIN‑programmed replacement from Flagship One can simplify the process.
What the PCM Does in a 1996 GMC Sonoma
The powertrain control module in a 1996 GMC Sonoma coordinates engine and transmission functions, interpreting sensor data to adjust fuel, spark, and gear shifts. It also stores diagnostic codes and communicates with the vehicle’s computer network. Because the PCM directly influences drivability, any fault can cause stalling, poor acceleration, or loss of power. replacement powertrain control modules for the 1996 GMC Sonoma are engineered to match the original specifications and maintain system integrity.
Where the PCM Is Located and What Replacement Involves

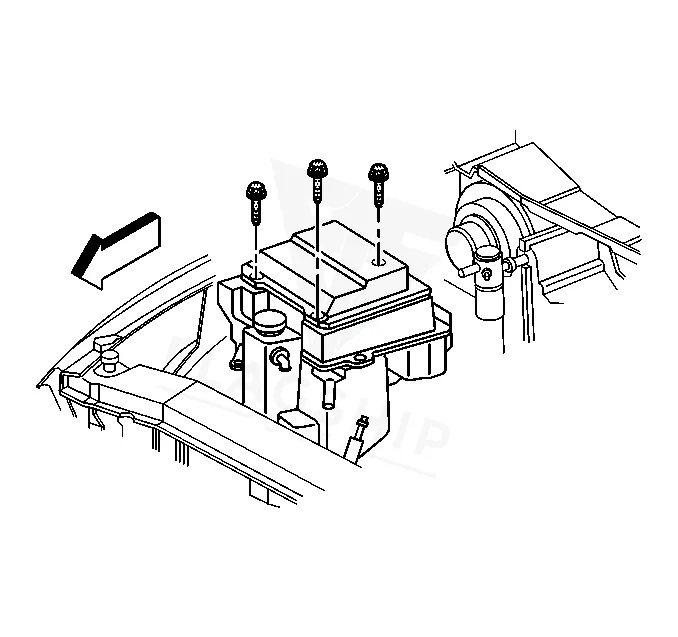

The PCM is positioned in the right‑hand side fender well, requiring removal of the fender liner to access the unit. Replacing it from under the hood typically takes one hour, while reaching it through the instrument panel extends the job to about 1.8 hours. The ECM shares similar access routes, with a hood removal time of 0.9 hours and an instrument panel time of 1.8 hours. After any removal, the factory advises turning off the ignition key to avoid damage to the control module.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Under Hood | 0.9 hr |
| Engine Control Module R&R | Under Inst. Panel | 1.8 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory procedure calls for a relearn process that occupies roughly half an hour. Flagship One units arrive pre‑programmed to the vehicle’s VIN, so that step is already completed. a VIN‑programmed replacement unit eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 1996 GMC Sonoma include a no‑start condition, intermittent stalling, rough idle, and erratic shift patterns. Scan tools may report a loss of communication or specific fault codes. The presence of processor clock signal malfunction often points to a PCM timing issue that requires attention.
Module Trouble Codes on the 1996 GMC Sonoma
The following internal trouble code(s) have been documented for the 1996 GMC Sonoma’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this vehicle include #99-06-04-053, which addresses PCM reprogramming, #83-81-32, detailing new PCM connector service kits, and #6N13, covering vehicle control module calibration. These bulletins provide guidance on reprogramming and connector updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
| — | CAMPAIGN: VEHICLE CONTROL MODULE (VCM) CALIBRATION – (May 1, 1996) | — |
Protecting the PCM in Your 1996 GMC Sonoma
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all grounds and connector pins are clean and tight.
- Use proper battery disconnect procedures when working on the modules.
- Address diagnostic codes promptly to prevent escalation.
- Protect connector seals from moisture and corrosion.
Frequently Asked Questions
Can a faulty PCM cause my 1996 GMC Sonoma to stall while driving?
Yes, the PCM regulates fuel and ignition timing, so a malfunction can lead to sudden stall or loss of power.
Do I need special tools to replace the ECM in a 1996 GMC Sonoma?
The job primarily requires standard hand tools and the time estimates provided; no specialized equipment is listed in the factory data.
Is a PCM relearn necessary after installing a new unit in a 1996 GMC Sonoma?
The factory procedure includes a 0.5‑hour relearn step to synchronize the new module with the vehicle’s systems.
When the PCM or ECM in your 1996 GMC Sonoma needs attention, you can choose a professional repair or a refurbished replacement. Both options require the same labor steps, but a VIN‑programmed unit from Flagship One removes the post‑install programming requirement, letting you focus on the physical installation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 GMC Sonoma with a lifetime warranty, free shipping and no core charge. The full GMC Sonoma module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 1996 GMC Sonoma restores essential engine and transmission control. Consider a pre‑programmed replacement to reduce downtime and ensure proper system integration.
