1994 Ford Aerostar PCM/ECM Replacement and Relearn Guide
The Powertrain Control Module (PCM) in your 1994 Ford Aerostar manages engine and transmission functions. Failures may cause erratic performance, stalling, or a no-start condition, often due to internal faults or connector issues.
Quick Summary
- The PCM controls engine and transmission operations in the 1994 Ford Aerostar.
- Replacement typically takes 1.0 hours of labor, plus 0.5 hours for relearn procedures.
- A drive cycle of 10 miles or more may be required to complete adaptive strategy relearning.
- Common symptoms include stalling, no-start conditions, or poor drivability.
- Factory service bulletins address MIL illumination related to ignition and wiring issues.
If your 1994 Ford Aerostar is experiencing stalling, rough idling, or a no-start condition, the Powertrain Control Module (PCM) may be at fault. This critical component oversees engine and transmission functions, ensuring smooth operation. Replacing it involves removing the old unit, installing a new one, and performing a relearn procedure to restore proper function. Understanding the process helps you anticipate labor costs and avoid unnecessary delays. This guide explains what the PCM does, where it’s located, and what to expect during replacement and programming.
What the PCM Does in a 1994 Ford Aerostar
The Powertrain Control Module (PCM) in your 1994 Ford Aerostar acts as the brain for engine and transmission management. It processes data from sensors to control fuel delivery, ignition timing, and shifting patterns, ensuring optimal performance. A faulty PCM may disrupt these functions, leading to poor drivability or even a complete no-start scenario. When replacement becomes necessary, choosing replacement engine computers for the Aerostar ensures compatibility and proper calibration for your vehicle’s specific needs.
Where the PCM Is Located and What Replacement Involves

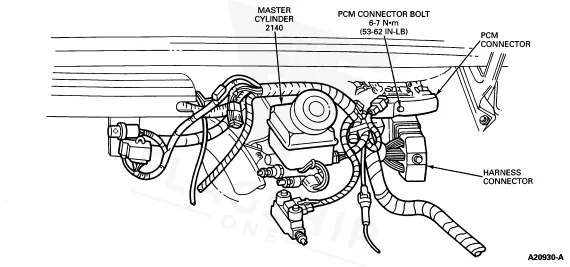

In the 1994 Ford Aerostar, the PCM is typically located under the dashboard on the passenger side or near the firewall. Replacing it involves disconnecting the battery, removing the module’s electrical connectors, and unfastening the mounting bolts. The labor time for removal and reinstallation is usually 1.0 hours. After installation, a relearn procedure of 0.5 hours is often required to synchronize the new module with the vehicle’s systems. No special tools are specified, but care should be taken to avoid damaging connectors during removal.
How to Reach the PCM on the 1994 Ford Aerostar
- Remove two screws and right cowl side panel.
- Disconnect small powertrain control module connector.
- Disconnect large powertrain control module connector.
- Remove three screws and powertrain control module bracket (PCM bracket) (12A659).
- Disconnect powertrain control module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.0 hr |
Programming Requirements After Replacement
After installing a new PCM in your 1994 Ford Aerostar, the vehicle may require a drive cycle of 10 miles or more to relearn its adaptive strategy. This process ensures the module adjusts to your driving habits and engine conditions. However, if you opt for a VIN-programmed replacement unit, these steps are already completed, saving you time and potential frustration. Always follow factory procedures to confirm proper operation after installation.
Symptoms of a Failing PCM
A failing PCM in your 1994 Ford Aerostar may cause a range of symptoms, including stalling, rough idling, or a no-start condition. You might also notice poor acceleration, erratic shifting, or the Malfunction Indicator Lamp (MIL) illuminating. In some cases, the vehicle may enter a default mode to protect the engine, limiting performance. If the PCM loses communication with the scan tool, it could indicate an internal fault or wiring issue. For example, a memory integrity fault may trigger the MIL and require further diagnosis.
Factory Service Bulletins Worth Knowing
Ford issued service bulletins addressing common issues with the 1994 Aerostar’s ignition system and Malfunction Indicator Lamp (MIL). Bulletin #95-10-02 covers MIL illumination in vehicles with the Distributorless Ignition System (DIS), recommending revised connector retention clips and seals for the Ignition Control Module (ICM). Another bulletin, #95-22-15, addresses continuous code 124 and MIL illumination or flashing, though it applies only to vehicles with the 4.0L engine. These bulletins highlight potential wiring or connector issues that may mimic PCM failures.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 95-10-02 | “MALFUNCTION INDICATOR LAMP” (MIL) ILLUMINATED – DISTRIBUTORLESS IGNITION SYSTEM (DIS) ONLY – I | — |
| 95-22-15 | BUILT THROUGH 3/13/95 – CONTINUOUS CODE 124 – LAMP – MIL (MALFUNCTION INDICATOR LAMP) ILLUMINAT | — |
Protecting the PCM in Your 1994 Ford Aerostar
- Maintain a healthy charging system to prevent voltage spikes that could damage the PCM.
- Ensure all electrical connectors are clean and securely fastened to avoid intermittent faults.
- Avoid jump-starting the vehicle with incorrect voltage, as this may harm sensitive electronics.
- Address any stored trouble codes promptly to prevent further damage to the module.
- Inspect connector seals regularly to prevent moisture intrusion, which can cause corrosion.
- Use dielectric grease on connectors to protect against oxidation and poor conductivity.
Frequently Asked Questions
How do I know if my 1994 Ford Aerostar’s PCM is failing?
Common signs include stalling, rough idling, or a no-start condition. The Malfunction Indicator Lamp (MIL) may also illuminate, and the vehicle might enter a default mode to protect the engine. If the PCM fails to communicate with a scan tool, it could indicate an internal fault.
Can I replace the PCM in my 1994 Aerostar myself?
Replacement involves removing the old module and installing a new one, which typically takes 1.0 hours of labor. However, a relearn procedure of 0.5 hours is often required afterward. If you’re unfamiliar with electrical systems, professional installation is recommended.
Why does my 1994 Aerostar need a drive cycle after PCM replacement?
The vehicle may require a drive cycle of 10 miles or more to relearn its adaptive strategy. This process allows the PCM to adjust to your driving habits and engine conditions, ensuring optimal performance. A pre-programmed unit can eliminate this step.
If your 1994 Ford Aerostar is experiencing PCM-related issues, you have options. A repair may address minor faults, but a replacement is often more reliable for long-term performance. Choosing a pre-programmed unit ensures compatibility and eliminates the need for additional relearn procedures, saving time and effort.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Ford Aerostar with a lifetime warranty, free shipping and no core charge. The full Ford Aerostar module lineup covers other engine configurations as well.
Final Thoughts
The 1994 Ford Aerostar relies on its PCM for smooth engine and transmission operation. If you’re facing stalling, no-start conditions, or erratic performance, a replacement may be necessary. Understanding the process and symptoms helps you make an informed decision. Consider a pre-programmed unit to simplify installation and get back on the road quickly.
