1993 Mitsubishi Diamante PCM Replacement & Common Failure Signs
The Powertrain Control Module (PCM) in your 1993 Mitsubishi Diamante manages engine and transmission functions. Failures may cause erratic performance, stalling, or a no-start condition, often due to internal electronics degrading over time.
Quick Summary
- The PCM controls fuel, ignition, and transmission in the 1993 Diamante.
- Replacement typically requires 1.0 hour of labor for removal and reinstallation.
- A relearn procedure (0.5 hours) is needed after installation to sync the module.
- The PCM is mounted in a location shared with the Mirage model.
- Flagship One units arrive pre-programmed to your VIN, skipping factory setup steps.
If your 1993 Mitsubishi Diamante is running poorly or refusing to start, the Powertrain Control Module (PCM) may be the culprit. This critical component oversees engine and transmission operations, and when it fails, symptoms can range from rough idling to complete stalling. Replacing it involves accessing the module, swapping it out, and performing a relearn procedure to ensure proper function. Understanding the process helps you anticipate labor costs and avoid unnecessary delays. With the right replacement unit, you can restore your vehicle’s performance without the hassle of additional programming steps.
What the PCM Does in a 1993 Mitsubishi Diamante
In your 1993 Mitsubishi Diamante, the Powertrain Control Module (PCM) acts as the brain for both the engine and transmission. It processes sensor data to adjust fuel delivery, ignition timing, and shift points, ensuring smooth operation. A failing PCM may disrupt these functions, leading to poor drivability or even a no-start condition. Since this vehicle predates OBD-II, diagnosing issues requires careful attention to symptoms rather than relying on standardized trouble codes. When replacement becomes necessary, replacement engine computers for the Diamante are available to match the original specifications, restoring reliable performance without compatibility concerns.
Where the PCM Is Located and What Replacement Involves
The PCM in your 1993 Mitsubishi Diamante is mounted in a location shared with the Mirage, though the exact access steps may vary slightly. Replacing it typically involves removing the module from its bracket, disconnecting the wiring harness, and installing the new unit. Labor time for removal and reinstallation is usually around 1.0 hours. After installation, the module must be relearned to the vehicle, a process that takes about 0.5 hours. No special tools are required beyond basic hand tools, but ensuring a secure connection is critical to avoid future issues.

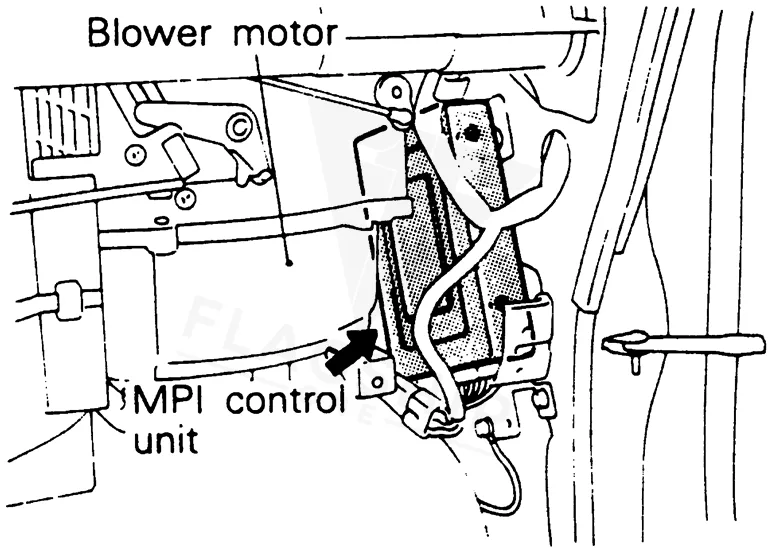

How to Reach the PCM on the 1993 Mitsubishi Diamante
- Disconnect the negative battery cable.
- Remove the glove box, right side kickpanel and lower panel assemblies.
- Unplug the connectors and remove fasteners.
- Disconnect negative battery cable.
- Remove both center console side panels.
- Unplug the wiring connector and remove the mounting hardware.
- Remove the passenger side lower instrument panel and shower duct.
- Remove the glove box striker, glove box, glove box outer casing and the.
- Unplug wiring connector and remove mounting hardware.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After replacing the PCM in your 1993 Mitsubishi Diamante, the factory procedure requires a relearn process to synchronize the module with the vehicle’s systems. This step typically takes 0.5 hours and ensures proper communication between the PCM and other components. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured to your vehicle’s specifications, eliminating the need for this additional step. This saves time and reduces the risk of incomplete initialization, allowing you to get back on the road sooner.
Symptoms of a Failing PCM
A failing PCM in your 1993 Mitsubishi Diamante may cause a range of issues, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, erratic shifting, or the engine running too rich or lean. In some cases, the vehicle may exhibit no communication with a scan tool, making diagnosis more challenging. While pre-OBD-II vehicles like the Diamante don’t use standardized trouble codes, symptoms such as internal control module memory checksum error can indicate a module failure. Addressing these signs promptly helps prevent further drivability problems.
Protecting the PCM in Your 1993 Mitsubishi Diamante
- Keep your vehicle’s charging system in good condition to avoid voltage spikes that may damage the PCM.
- Ensure all electrical grounds and connectors are clean and secure to prevent poor communication.
- Avoid jump-starting with improper voltage, as this can harm sensitive electronics.
- Address any drivability issues promptly to prevent cascading failures.
- Inspect the PCM connector seals regularly to prevent moisture intrusion.
- Use dielectric grease on connectors to protect against corrosion.
Frequently Asked Questions
Can I replace the PCM in my 1993 Mitsubishi Diamante myself?
Replacing the PCM is possible if you have basic mechanical skills and the right tools. The process involves removing the old module, installing the new one, and ensuring all connections are secure. However, a relearn procedure is typically required afterward, which may necessitate professional assistance if you lack the necessary equipment.
Why does my 1993 Diamante stall after a PCM replacement?
Stalling after a PCM replacement often occurs if the module wasn’t properly relearned to the vehicle’s systems. This step is essential for synchronizing the PCM with the engine and transmission. Using a pre-programmed unit can eliminate this issue, as it arrives ready to communicate with your vehicle’s components.
How do I know if my 1993 Mitsubishi Diamante’s PCM is failing?
Common signs include rough idling, stalling, poor acceleration, or a no-start condition. You may also notice erratic shifting or a lack of communication with a scan tool. Since this vehicle lacks OBD-II, diagnosing the issue may require testing individual sensors or inspecting the PCM’s connections.
If your 1993 Mitsubishi Diamante is experiencing PCM-related issues, replacing the module can restore reliable performance. While a new unit may require additional programming, a refurbished replacement from Flagship One arrives pre-configured to your VIN, saving time and effort. This ensures a smoother installation process and reduces the risk of post-replacement complications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1993 Mitsubishi Diamante with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Diamante module lineup covers other engine configurations as well.
Final Thoughts
The 1993 Mitsubishi Diamante relies on its PCM to manage critical engine and transmission functions. If you’re facing drivability issues, a replacement module can resolve many common problems. Opting for a pre-programmed unit simplifies the process, allowing you to get your vehicle back on the road with minimal downtime.
