1997 Mitsubishi Diamante 3.5L PCM Replacement Guide
The PCM in the 1997 Mitsubishi Diamante 3.5L controls engine timing, fuel delivery, and transmission shifts. When it fails, the car can misfire, stall, or refuse to start.
Quick Summary
- The PCM manages engine and transmission functions.
- Failure causes misfires, stalls, or no-start conditions.
- Replacement requires 1.2 hours of labor.
- Post‑install relearn takes 0.5 hours for PCM and 0.5 hours for ECM.
- A VIN‑programmed unit eliminates relearn steps.
You’ve spent a weekend on the driveway, only to find that your 1997 Mitsubishi Diamante 3.5L refuses to start or behaves erratically. The culprit is often the Powertrain Control Module, the brain that synchronizes the engine, transmission, and many other systems. Replacing the PCM is a common fix that restores reliability and ensures your vehicle runs smoothly again. In this guide you’ll discover where the PCM sits, how long the job takes, what the factory procedure normally requires, and how a Flagship One unit can simplify the process. By the end you’ll have a clear picture of the work involved and the benefits of a VIN‑programmed replacement.
What the PCM Does in a 1997 Mitsubishi Diamante
The PCM in the 1997 Mitsubishi Diamante 3.5L is the central computer that coordinates fuel injection, ignition timing, and shift timing. It reads sensor data from the engine and transmission, then sends commands to actuators to keep the drivetrain running efficiently. replacement engine computers for the 1997 Mitsubishi Diamante The module’s failure can lead to a range of drivability problems such as misfires, stalling, or a complete loss of power. Because it also manages the transmission shift logic, a bad PCM can cause harsh shifts or a non‑shifting transmission. Knowing the PCM’s role helps you understand why a proper replacement and post‑install programming are essential for full vehicle performance.
Where the PCM Is Located and What Replacement Involves

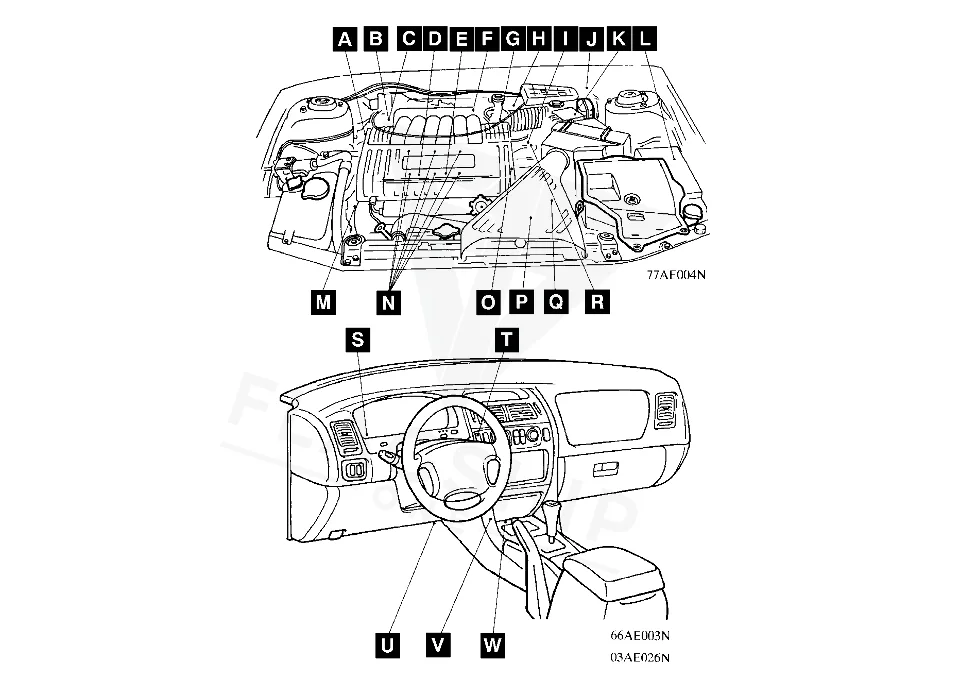

The PCM is located under the passenger seat, behind the carpet. Accessing it requires removing the seat cushion and a few screws. The book labor time for a complete removal and installation is 1.2 hours. After the module is replaced, a relearn procedure is required for both the PCM and the Engine Control Module, each taking 0.5 hours. This ensures the new unit is calibrated to the vehicle’s specific settings.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.2 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After a new PCM is installed, the factory procedure normally requires a relearn of the PCM and the ECM, each taking 0.5 hours. Because Flagship One units arrive VIN‑programmed, those relearn steps are already completed. a VIN‑programmed replacement unit This means you can skip the relearn and get your 1997 Mitsubishi Diamante back on the road faster.
Symptoms of a Failing PCM
When the PCM in a 1997 Mitsubishi Diamante 3.5L is failing, you may notice symptoms such as a hard start, engine stalling, or a loss of power. The vehicle may also show check‑engine light codes or fail to shift smoothly. If the code P0601 appears, it indicates a PCM control module communication problem, which is a common indicator of a faulty unit. These symptoms can make the car unreliable and difficult to drive.
Protecting the PCM in Your 1997 Mitsubishi Diamante
- Keep the charging system healthy to avoid voltage spikes.
- Clean and secure all ground connections.
- Avoid using jump‑start cables that can overload the PCM.
- Address any diagnostic codes promptly to prevent further damage.
- Inspect connector seals for leaks or corrosion.
- Ensure the PCM’s environment remains dry and clean.
Frequently Asked Questions
Is it safe to drive my 1997 Mitsubishi Diamante while the PCM is replaced?
Driving the vehicle during the replacement is not recommended because the PCM is essential for engine and transmission control. The vehicle may stall or fail to start if the PCM is not installed.
How long does the PCM replacement take on a 1997 Mitsubishi Diamante?
The book labor time is 1.2 hours for removal and installation, plus 1 hour for relearn procedures of the PCM and ECM.
Do I need a special tool to install the new PCM?
No special tool is required beyond standard automotive hand tools. The process involves removing a few screws and disconnecting connectors.
Will a Flagship One PCM work with my 1997 Mitsubishi Diamante?
Yes, Flagship One PCM units are designed to be compatible with the 1997 Mitsubishi Diamante 3.5L and come VIN‑programmed for your vehicle.
Can I perform the relearn myself after installing the new PCM?
The relearn procedure is normally performed by a shop using specialized equipment. However, a VIN‑programmed unit eliminates the need for relearn.
Replacing the PCM in your 1997 Mitsubishi Diamante 3.5L can restore reliable performance whether you choose a professional repair shop or a refurbished replacement. A new PCM from Flagship One eliminates the relearn step, saving time and ensuring your vehicle runs as intended. Consider the benefits of a VIN‑programmed unit and decide what works best for you.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Mitsubishi Diamante with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Diamante module lineup covers other engine configurations as well.
Final Thoughts
A reliable 1997 Mitsubishi Diamante 3.5L starts with a healthy PCM. By understanding the module’s role and the replacement process, you can keep your vehicle running smoothly. Reach out to a trusted service center or explore a refurbished PCM option to get back on the road.
