1992 Mitsubishi Diamante PCM/ECM Replacement and Relearn Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in your 1992 Mitsubishi Diamante manage fuel injection, ignition timing, and emissions. When either fails, the engine may run poorly or not start. Replacement requires a factory relearn procedure.
Quick Summary
- The PCM and ECM in the 1992 Diamante control critical engine functions; failure often causes no-start or stalling.
- Replacement labor is 1.0 hour for the PCM and 0.8 hour for the ECM, plus 0.5 hour for each relearn procedure.
- The PCM is mounted inside the passenger compartment of the Diamante, typically behind a kick panel or under the dash.
- After replacing either module, a factory relearn procedure is required to synchronize the unit with the vehicle.
- Flagship One supplies VIN-programmed units that arrive ready to install, eliminating the need for the relearn step.
If your 1992 Mitsubishi Diamante is experiencing driveability issues such as no-start, stalling, or erratic performance, the engine control computer may be at fault. This vehicle uses both a Powertrain Control Module (PCM) and an Engine Control Module (ECM) to manage fuel delivery, ignition timing, and emissions. Understanding what these modules do and how to replace them can save you time and money. This guide covers the function, location, replacement labor times, and post-installation requirements for the 1992 Diamante. You will learn what to expect during a professional replacement and how a pre-programmed unit can simplify the process.
What the PCM Does in a 1992 Mitsubishi Diamante
The Powertrain Control Module (PCM) in your 1992 Mitsubishi Diamante acts as the primary computer that coordinates engine and transmission functions. It receives sensor inputs for throttle position, coolant temperature, crankshaft speed, and oxygen levels, then adjusts fuel injector pulse width and ignition timing accordingly. The Engine Control Module (ECM) is a closely related unit that focuses specifically on engine management. Together, they ensure the 3.0L V6 runs smoothly and efficiently. When either module fails, the engine may lose communication with sensors, causing rough running or a no-start condition. For a reliable fix, consider replacement engine computers for the Diamante that are pre-programmed to your vehicle’s VIN, which avoids the need for a dealer visit.
Where the PCM Is Located and What Replacement Involves

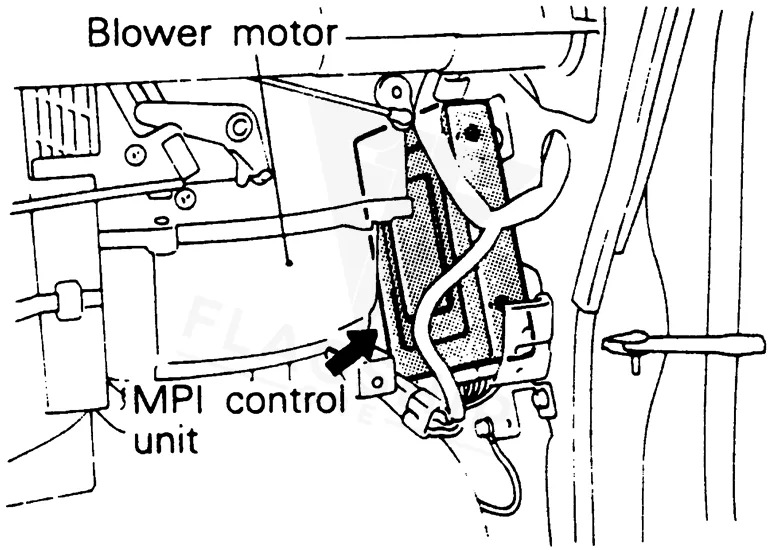

The PCM in the 1992 Mitsubishi Diamante is mounted inside the passenger compartment, typically behind the passenger-side kick panel or under the dashboard. Access requires removing trim panels and possibly the glove box. The factory book time for PCM removal and replacement is 1.0 hour. For the ECM, the book time is 0.8 hour. Both modules are secured with bolts or screws; no special tools are needed beyond basic hand tools. Disconnect the battery before unplugging the connectors to avoid electrical damage. After installation, the vehicle will need a relearn procedure, which is covered in the programming section.
How to Reach the PCM on the 1992 Mitsubishi Diamante
- Disconnect the negative battery cable.
- Remove the glove box, right side kickpanel and lower panel assemblies.
- Unplug the connectors and remove fasteners.
- Disconnect negative battery cable.
- Remove both center console side panels.
- Unplug the wiring connector and remove the mounting hardware.
- Remove the passenger side lower instrument panel and shower duct.
- Remove the glove box striker, glove box, glove box outer casing and the.
- Unplug wiring connector and remove mounting hardware.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After replacing the PCM or ECM in your 1992 Diamante, the factory procedure requires a relearn process that takes 0.5 hour for each module. This involves starting the engine and allowing it to idle through a specific sequence to recalibrate the idle air control and fuel trims. Flagship One supplies a VIN-programmed replacement unit that arrives with the correct software already loaded, so the relearn steps are already completed. You can install the module and drive immediately without any additional programming.
Symptoms of a Failing PCM
Common failure symptoms for the PCM or ECM in the 1992 Mitsubishi Diamante include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, poor acceleration, and erratic idle. The check engine light may illuminate, and a scan tool may show diagnostic trouble codes related to sensor circuits or internal module faults. Communication loss with the scan tool is another sign of a failed module. Because this is a pre-OBD-II vehicle, trouble codes are manufacturer-specific and require a compatible scanner to retrieve.
Protecting the PCM in Your 1992 Mitsubishi Diamante
- Keep the battery and charging system in good condition; voltage spikes can damage the PCM.
- Ensure all ground connections are clean and tight, especially the main engine ground and PCM ground.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger instead.
- Address any diagnostic trouble codes promptly before they lead to module failure.
- Inspect the PCM connector seals for damage and keep them free of moisture and corrosion.
Frequently Asked Questions
How do I know if the PCM or ECM is bad on my 1992 Mitsubishi Diamante?
Common signs include a no-start condition, stalling, poor fuel economy, and a check engine light. A scan tool can retrieve trouble codes that point to internal module faults. If communication with the module is lost, it is likely failed.
Can I replace the PCM myself on a 1992 Diamante?
Yes, if you have basic mechanical skills. The PCM is located inside the passenger compartment and requires removing trim panels. The book time is 1.0 hour. After installation, a relearn procedure is needed, but a pre-programmed unit from Flagship One eliminates that step.
What is the difference between the PCM and ECM on the 1992 Diamante?
The PCM (Powertrain Control Module) manages both engine and transmission functions, while the ECM (Engine Control Module) focuses solely on engine management. In this vehicle, they are separate units, each with its own replacement time and relearn procedure.
When your 1992 Mitsubishi Diamante needs a new PCM or ECM, you have two options: have a shop install a new unit and perform the factory relearn, or choose a refurbished, VIN-programmed module that is ready to install. The latter saves you the 0.5-hour relearn labor cost and gets you back on the road faster. Flagship One offers model-specific units that match your Diamante’s original specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1992 Mitsubishi Diamante with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Diamante module lineup covers other engine configurations as well.
Final Thoughts
The 1992 Mitsubishi Diamante relies on its PCM and ECM for proper engine operation. Replacement is straightforward with the right parts and knowledge. By choosing a pre-programmed module, you avoid the factory relearn procedure and reduce downtime. Keep your Diamante running reliably with a quality replacement computer.
