1992 Toyota Land Cruiser ECM Replacement and Programming
The Engine Control Module on the 1992 Toyota Land Cruiser is the primary computer managing fuel delivery, air-fuel mixture, and ignition timing on the 4.0L six-cylinder engine. It processes sensor inputs to control the engine under all conditions. When the module itself develops an internal fault, the engine may run poorly or not start, and internal trouble codes may be stored indicating processor or memory failure.
Quick Summary
- The ECM on this vehicle is typically located behind the glove box, which affects accessibility during replacement.
- Engine Control Module R&R book time is 0.8 hours, and the relearn procedure is 0.5 hours.
- Powertrain Control Module R&R book time is 0.8 hours, and the relearn procedure is 0.5 hours.
- Flagship One units arrive VIN-programmed, which eliminates the factory post-install programming step for your vehicle.
- This pre-OBD-II vehicle does not follow the standardized trouble code format introduced on later models.
If your 1992 Toyota Land Cruiser refuses to start and every other system checks out, the Engine Control Module may be at fault. The ECM serves as the central computer for the 4.0L engine, handling fuel delivery, air-fuel ratios, and emissions-related functions. This guide explains what the ECM does, where it is located on your vehicle, what replacement involves, and what steps follow installation. You will also learn about common symptoms of ECM failure, how to protect the module from premature failure, and how a pre-programmed replacement from Flagship One simplifies the repair process. Understanding these details helps you make an informed decision whether to replace the module yourself or have a shop handle the work.
What the PCM Does in a 1992 Toyota Land Cruiser
The Engine Control Module on the 1992 Toyota Land Cruiser serves as the central processor for the 4.0L six-cylinder engine, monitoring sensors throughout the motor to manage fuel injection volume, ignition timing advance, and idle speed. It continuously adjusts air-fuel ratios and spark timing to maintain drivability and emissions compliance across varying conditions. Without a functioning ECM, the engine cannot coordinate its mechanical systems and will stall or fail to run.
When internal circuitry inside the module degrades, you may experience hard starting, stalling, or inconsistent power delivery that has no obvious mechanical cause. The module may also stop communicating with scan tools, which prevents accurate diagnosis. Replacement engine computers for the Land Cruiser restore full engine management capability, but the new module must be configured to your specific vehicle before normal operation resumes. This is why post-installation steps matter as much as the physical R&R procedure itself.
Flagship One keeps Toyota Land Cruiser replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

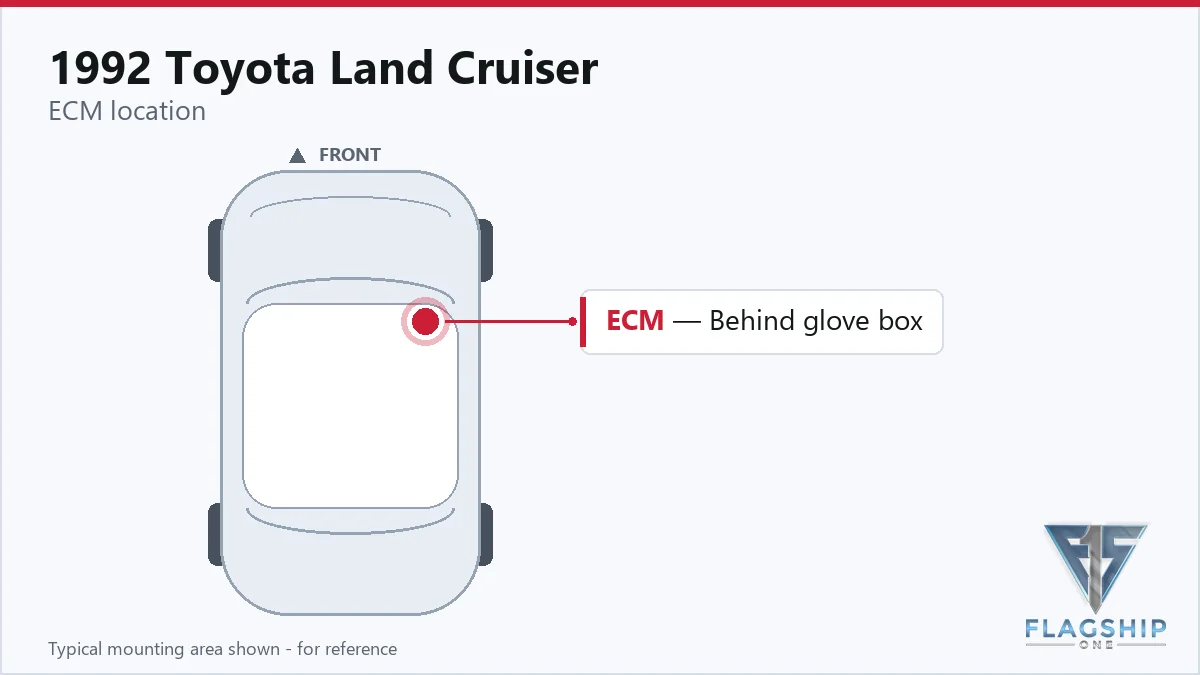

The ECM on this vehicle is typically found behind the glove box, which means interior trim removal is necessary to access it. This location provides some protection from engine-bay heat but can expose the module to moisture from HVAC ducting over time.
The ECM R&R book time is 0.8 hours, covering removal of the old unit and installation of the new one. The relearn procedure adds another 0.5 hours to verify communication and allow the new module to establish proper adaptive values. Powertrain Control Module R&R carries the same 0.8-hour book time with an additional 0.5-hour relearn step. These times assume standard hand tools and a competent technician;粘连 connectors and corroded grounds can extend actual repair time beyond book estimates.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the module, the factory procedure requires a relearn process to calibrate the new ECM to your specific vehicle’s sensors and adaptive parameters. This ensures idle quality, throttle response, and fuel delivery meet expected standards for the 4.0L engine.
The relearn step is a defined procedure rather than a lengthy reconfiguration session, but it must be completed before the vehicle delivers normal driveability. Flagship One addresses this requirement by shipping units with your VIN already programmed, so the post-install relearn becomes a verification step rather than a full configuration sequence. Purchasing a VIN-programmed replacement unit means one less step for your technician and faster turnaround on the repair.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
ECM failure on this vehicle often begins with intermittent symptoms that can mimic other problems. The engine may crank normally but fail to start, or it may start and then stall shortly after. Idle quality may become rough, and the engine may stumble under acceleration without obvious reason.
Stored codes related to internal module faults may appear even when sensors and wiring test good. A scan tool may fail to communicate with the module entirely, which points strongly toward an electronics problem rather than a wiring issue. In some cases the transmission may shift harshly or unpredictably because the ECM no longer provides correct data to the transmission control logic. Symptoms typically develop gradually, with the check engine light flickering before staying on continuously.
Factory Service Bulletins Worth Knowing
No factory service bulletins specific to the 1992 Toyota Land Cruiser ECM were identified in the available service information. This does not mean failures do not occur; rather, repair procedures for this model generally follow established service manual steps for module R&R and post-install relearn. Always verify current campaign coverage with a Toyota dealership using your vehicle identification number before proceeding with any repair.
Protecting the PCM in Your 1992 Toyota Land Cruiser
- Maintain healthy charging system voltage; a failing alternator can deliver spikes or low voltage that damages module circuitry over time.
- Keep battery terminals clean and tight to prevent voltage irregularities during startup.
- Ensure all module grounds are clean, tight, and corrosion-free, as poor grounding is a common cause of premature module failure.
- Avoid jump-starting from incorrect polarity, which can instantly destroy internal electronics.
- Address any stored trouble codes promptly rather than letting the module compensate for a failing sensor long-term.
- Inspect and protect wiring connectors near the module; damaged seals or corroded pins can introduce moisture and voltage anomalies.
Frequently Asked Questions
Is the ECM and PCM the same thing on a 1992 Toyota Land Cruiser?
On this vehicle the terms ECM and PCM are often used interchangeably, as the module handles both engine management and certain transmission functions. They share the same physical location behind the glove box and follow the same replacement and relearn procedures.
How do I know if my 1992 Land Cruiser has an ECM problem versus a wiring issue?
A scan tool that fails to communicate with the module at all strongly suggests an electronics failure rather than a wiring problem. If communication is present but codes point to internal faults with good sensor readings, the module itself is likely at fault. Checking grounds and power supplies at the connector can rule out wiring before condemning the ECM.
Can I install a used ECM from a wrecking yard on my 1992 Land Cruiser?
A used module may be cheaper upfront but will require programming to your vehicle’s VIN and may have undisclosed internal damage. A pre-programmed replacement from Flagship One arrives ready to install, reducing labor time and eliminating uncertainty about the module’s condition.
Choosing between repair and replacement for your 1992 Toyota Land Cruiser depends on the extent of the ECM damage and your access to programming tools. Repairing an existing module is possible in some cases but often carries uncertainty about long-term reliability. A refurbished replacement unit that has been tested and configured for your specific vehicle removes that uncertainty. Flagship One provides VIN-programmed units for this model, which means the module is ready to install without requiring a dealer visit or special equipment to complete the post-install relearn procedure.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1992 Toyota Land Cruiser with a lifetime warranty, free shipping and no core charge. The full Toyota Land Cruiser module lineup covers other engine configurations as well.
Final Thoughts
The 1992 Toyota Land Cruiser depends on a functioning Engine Control Module to run the 4.0L engine properly. When the module fails, replacement is the most reliable path forward. Flagship One simplifies this repair by shipping a pre-programmed unit ready for your vehicle identification number, so your technician can complete the installation and proceed directly to the relearn step. Visit the Flagship One product page to order a replacement ECM configured for your Land Cruiser.
