1991 Toyota Land Cruiser ECM and PCM Replacement Complete Guide
In the 1991 Toyota Land Cruiser with a 4.0L engine, the Engine Control Module (ECM) manages fuel injection, ignition timing, and emissions controls. Failure of this module can cause no-start, rough running, poor fuel economy, and loss of communication with diagnostic tools. Because it is a pre-OBD-II system, it does not store generic diagnostic trouble codes.
Quick Summary
- The ECM is located behind the glove box, requiring about 0.8 hours of labor to remove and replace.
- After ECM replacement, a 0.5-hour relearn procedure is necessary for the vehicle to operate correctly.
- This 1991 Land Cruiser uses a pre-OBD-II system, so it does not generate standard P-codes.
- A replacement ECM that arrives pre-programmed with your VIN eliminates the need for a factory relearn.
If you own a 1991 Toyota Land Cruiser with the 4.0L engine and are experiencing drivability issues such as no-start, stalling, or erratic performance, the Engine Control Module (ECM) may be at fault. The ECM is the computer that controls fuel delivery, ignition timing, and other critical engine functions. This guide explains what the ECM does in your Land Cruiser, where it is located, what replacement involves, and how a pre-programmed unit can simplify the repair. You will learn the common symptoms of a failing ECM, the labor times involved, and the post-installation steps required by the factory.
What the PCM Does in a 1991 Toyota Land Cruiser
The Engine Control Module (ECM) in your 1991 Toyota Land Cruiser 4.0L is the central computer that interprets sensor inputs and adjusts fuel injection, spark timing, and idle speed to keep the engine running efficiently. It also controls the emissions system and communicates with other modules. When the ECM fails, the engine may not start, may run poorly, or may stall unexpectedly. Because this vehicle is pre-OBD-II, the ECM does not store standard diagnostic trouble codes, making diagnosis more reliant on physical symptoms. If you need a replacement, you can find replacement ECMs for the Land Cruiser that are pre-programmed to match your vehicle’s VIN, saving you the trouble of a dealer visit.
Where the PCM Is Located and What Replacement Involves

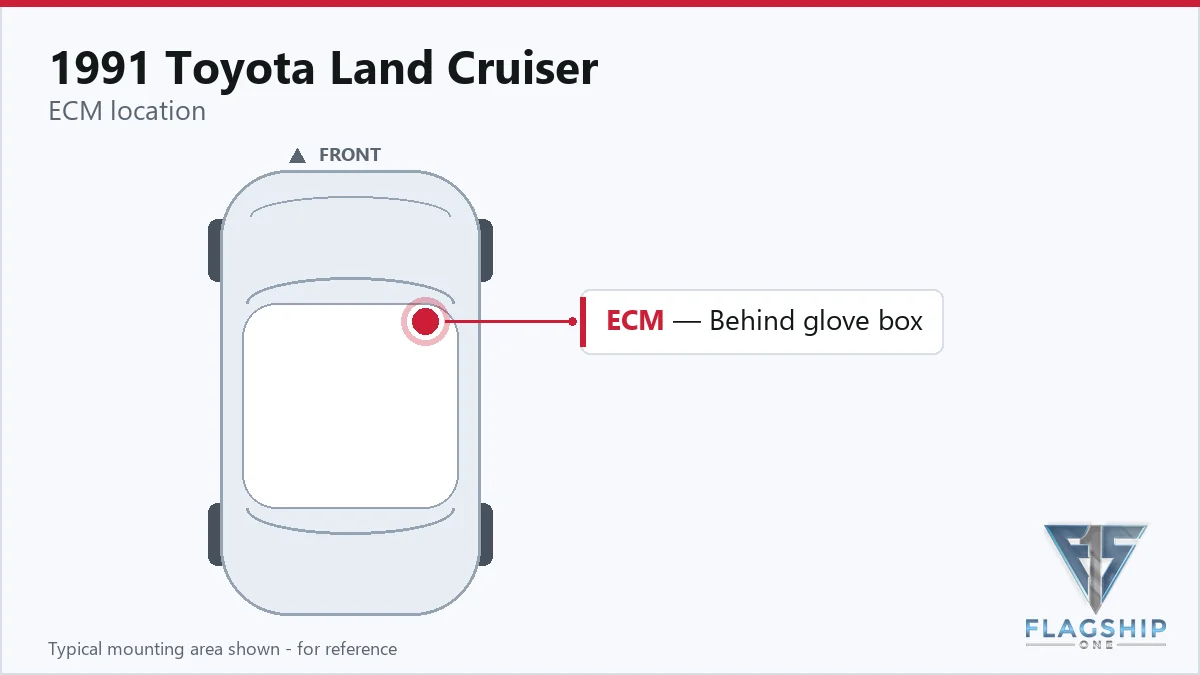

The ECM in the 1991 Toyota Land Cruiser is typically located behind the glove box on the passenger side. To access it, you remove the glove box assembly and then unbolt the module from its bracket. The factory book time for ECM removal and replacement (R&R) is 0.8 hours. After installing the new module, the factory procedure requires a 0.5-hour relearn process to synchronize the ECM with the engine’s sensors and actuators. This relearn may involve specific driving cycles or scan tool commands. The total labor for both R&R and relearn is 0.8 and 0.5 hours respectively, as listed in the service manual.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 1991 Toyota Land Cruiser, the factory procedure requires a 0.5-hour relearn to calibrate the module to the vehicle. This step is essential for proper fuel trim, idle control, and ignition timing. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s VIN and calibration data. That means the factory relearn is already completed, so you can install the unit and start the engine without additional programming steps. This saves you the 0.5-hour labor and the need for a dealer scan tool.
Symptoms of a Failing PCM
A failing ECM in the 1991 Toyota Land Cruiser can cause a variety of drivability issues. The most common symptom is a no-start condition where the engine cranks but does not fire. You may also experience intermittent stalling, rough idle, hesitation during acceleration, or poor fuel economy. Because the ECM controls ignition timing, a failure can lead to misfires that feel like a mechanical problem. Another sign is a complete loss of communication with a scan tool, indicating the module is not responding. Since this is a pre-OBD-II vehicle, you will not see check engine light codes, but the symptoms themselves point to an ECM issue.
Protecting the PCM in Your 1991 Toyota Land Cruiser
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep battery and engine ground connections clean and tight to ensure stable voltage to the module.
- Avoid jump-starting the vehicle with a running donor car; use a battery pack or follow the manual’s procedure to prevent voltage surges.
- Address any drivability symptoms promptly; a minor issue can escalate and stress the ECM.
- Inspect the ECM connector seals and wiring harness for corrosion or chafing, especially in wet or salty environments.
Frequently Asked Questions
How do I know if the ECM in my 1991 Toyota Land Cruiser is bad?
Common signs include no-start, stalling, rough running, and loss of communication with a scan tool. Because this is a pre-OBD-II vehicle, you won’t get check engine light codes, so diagnosis relies on symptoms and testing power/grounds to the module.
Can I replace the ECM in my 1991 Land Cruiser myself?
Yes, the ECM is located behind the glove box and is accessible with basic hand tools. The factory book time for removal and replacement is 0.8 hours. However, after installation, a 0.5-hour relearn is required unless you use a pre-programmed unit.
What is the difference between an ECM and a PCM for the 1991 Toyota Land Cruiser?
In this vehicle, the terms ECM and PCM are often used interchangeably. Both refer to the engine control computer. The labor times for ECM and PCM R&R are both 0.8 hours, and the relearn time is 0.5 hours for either module.
When your 1991 Toyota Land Cruiser’s ECM fails, you have two main options: have a dealer or shop install a new module and perform the factory relearn, or purchase a refurbished replacement that arrives pre-programmed with your VIN. The latter saves you the 0.5-hour relearn labor and ensures the module is ready to run immediately. For a 4.0L Land Cruiser, a pre-programmed unit is a straightforward, time-saving solution.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1991 Toyota Land Cruiser with a lifetime warranty, free shipping and no core charge. The full Toyota Land Cruiser module lineup covers other engine configurations as well.
Final Thoughts
The 1991 Toyota Land Cruiser 4.0L relies on its ECM for proper engine operation. If you suspect a failure, the symptoms are clear, and replacement is a manageable job. Choosing a pre-programmed ECM from Flagship One eliminates the factory relearn step, getting your Land Cruiser back on the road faster. Always address ECM issues promptly to avoid further drivability problems.
