1991 Mazda B2200 PCM/ECM: Location, Symptoms, and Replacement

If your 1991 Mazda B2200 with the 2.2L engine is experiencing hard starting, stalling, or a persistent check engine light, the powertrain control module (PCM) may be at fault. The PCM is the electronic brain that controls fuel delivery, ignition timing, idle speed, and emissions functions. When it begins to fail, the engine can behave unpredictably, leaving you stranded or struggling to pass an emissions test. This article explains what the PCM does in your B2200, where it is located, how to recognize failure symptoms, and what replacement involves. Understanding these details helps you make an informed decision about repair or replacement, whether you plan to do the work yourself or take it to a shop. We also cover how a pre-programmed replacement unit can simplify the process.

What the ECM Does in a 1991 Mazda B2200

The powertrain control module in your 1991 Mazda B2200 is a sealed electronic unit that continuously monitors sensor inputs—such as engine coolant temperature, throttle position, and oxygen sensor voltage—and adjusts fuel injector pulse width, ignition timing, and idle air control accordingly. It also manages the alternator output and controls the check engine light. Because the B2200 is a pre-OBD-II vehicle, the PCM uses a proprietary diagnostic protocol; trouble codes are retrieved by counting flashes of the check engine light or using a dealer-level scan tool. The module is critical for proper engine operation: without a functioning PCM, the engine may not start, may run rich or lean, or may stall under load. Over time, internal components can degrade due to heat, vibration, or voltage spikes, leading to erratic behavior. When replacement becomes necessary, you need a unit that matches your specific VIN and engine calibration. That is where replacement PCMs for the B2200 come into play—they are typically refurbished or new modules pre-configured for your exact vehicle.

Where the ECM Is Located and What Replacement Involves

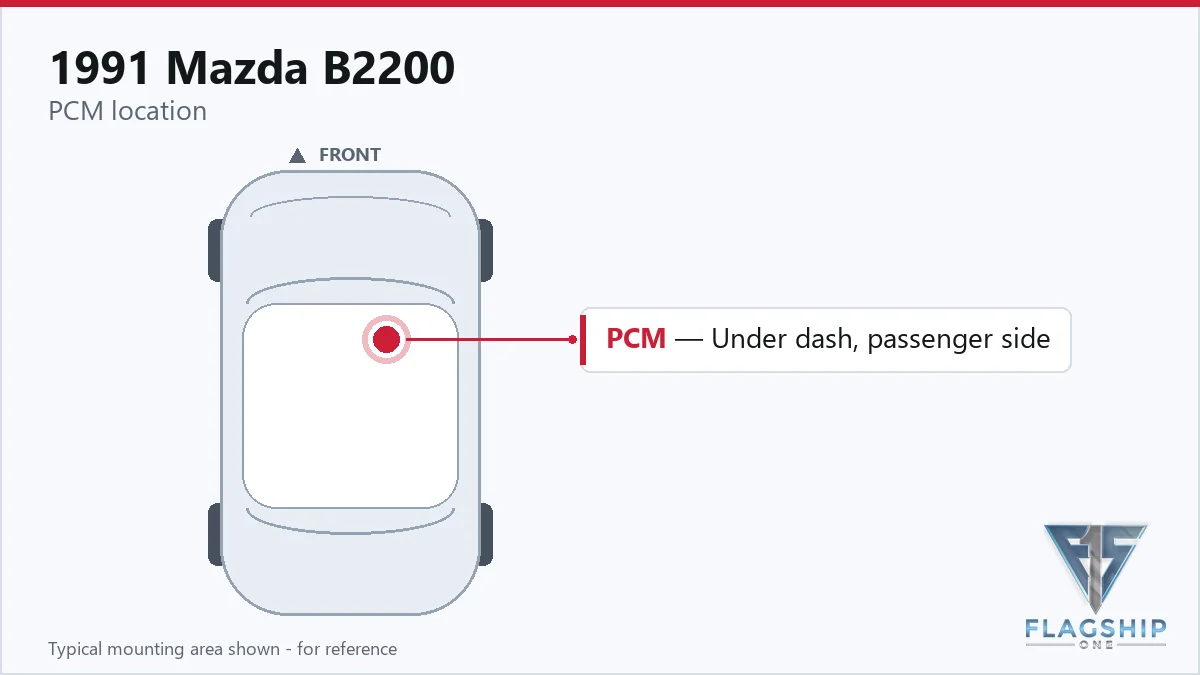

The PCM in the 1991 Mazda B2200 is mounted inside the passenger compartment, under the dashboard on the right (passenger) side. It is positioned on the front right side of the interior, near the kick panel. To access it, you will need to remove the lower trim panel or glove box area, depending on the exact configuration. The module is held in place by a few bolts or screws, and it connects to the vehicle wiring through one or two multi-pin connectors. Replacement involves disconnecting the battery negative terminal, unplugging the connectors, removing the mounting fasteners, and lifting the old unit out. Installation is the reverse: position the new module, secure it, reconnect the wiring, and reconnect the battery. No special tools are required, but care should be taken to avoid bending connector pins. The entire process typically takes less than an hour for a DIYer with basic hand tools.

Programming Requirements After Replacement

After installing a new or replacement PCM in a 1991 Mazda B2200, the factory procedure requires that the module be programmed with the vehicle’s VIN and calibration data. This is often done using a dealer-level scan tool that communicates with the PCM through the diagnostic connector. Without this step, the module may not operate correctly, and the check engine light may remain on. However, when you purchase a VIN-programmed replacement unit from Flagship One, that programming is already completed before shipping. The module arrives ready to install, so you can simply swap it in, reconnect the battery, and start the engine. No additional programming or dealer visit is needed, saving you time and expense. This is especially valuable for a pre-OBD-II vehicle where aftermarket programming tools are scarce.

Symptoms of a Failing ECM

A failing PCM in the 1991 Mazda B2200 can cause a range of driveability issues. The most common symptom is a no-start condition: the engine cranks but does not fire, or it starts and immediately dies. You may also experience intermittent stalling, especially when coming to a stop or under light load. The engine may idle roughly, surge, or hesitate during acceleration. Fuel economy can drop noticeably, and the check engine light may illuminate or flash a code pattern. Because the PCM controls ignition timing, a failing module can cause misfires that feel like a bad spark plug or coil. In some cases, the engine may run but with reduced power or a rich fuel smell. Since the B2200 is pre-OBD-II, you cannot simply plug in a generic code reader; instead, you may need to count the flashes of the check engine light or use a manufacturer-specific tool. If you suspect PCM failure, check for obvious issues like loose connectors, corroded terminals, or damaged wiring first, as these can mimic module failure.

Protecting the ECM in Your 1991 Mazda B2200

• Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
• Clean and tighten all ground connections, especially the engine-to-chassis ground strap, to ensure stable voltage reference.
• Avoid jump-starting the vehicle with a running donor car; connect cables only with both engines off to prevent voltage surges.
• Address any check engine light or driveability issues promptly; a small problem can escalate into PCM damage.
• Inspect the PCM connector seals and housing for moisture or corrosion; use dielectric grease on connectors when reinstalling.
• If the vehicle sits for long periods, disconnect the battery to prevent parasitic drain and protect the PCM from voltage fluctuations.

Frequently Asked Questions

Where is the PCM located on a 1991 Mazda B2200?

The PCM is located under the dashboard on the passenger side, on the front right side of the interior. You may need to remove a trim panel or the glove box to access it.

What are the symptoms of a bad PCM on a 1991 Mazda B2200?

Common symptoms include no-start, stalling, rough idle, hesitation, poor fuel economy, and a check engine light that may flash diagnostic codes. Because the PCM controls fuel and ignition, failure often mimics other engine problems.

Can I replace the PCM myself on a 1991 Mazda B2200?

Yes, replacement is straightforward for a DIYer with basic hand tools. The module is accessible under the passenger dash, and the process involves disconnecting the battery, unplugging connectors, and swapping the unit. No special tools are required.

Do I need to program a new PCM for a 1991 Mazda B2200?

Factory procedure requires VIN and calibration programming using a dealer-level scan tool. However, if you purchase a pre-programmed unit from Flagship One, that step is already done, so you can install and drive without additional programming.

How do I diagnose a PCM failure on a 1991 Mazda B2200?

Start by checking for loose or corroded connectors, damaged wiring, and good battery voltage. Then retrieve diagnostic trouble codes by grounding the appropriate terminal and counting check engine light flashes. Compare the flash pattern to a code list for your model.

When your 1991 Mazda B2200’s PCM fails, you have two main options: repair the original module or replace it with a refurbished unit. Repair is often difficult due to the sealed construction and age of the vehicle, making replacement the more reliable choice. A refurbished PCM that is pre-programmed to your VIN ensures a direct fit and eliminates the need for dealer programming, getting your B2200 back on the road quickly.

Flagship One stocks a refurbished, VIN-programmed ECM for the 1991 Mazda B2200 with a lifetime warranty, free shipping and no core charge. The full Mazda B2200 module lineup covers other engine configurations as well.

Final Thoughts

The PCM is a vital component in your 1991 Mazda B2200, controlling engine performance and emissions. Recognizing failure symptoms early and understanding the replacement process can save you time and frustration. Whether you choose to repair or replace, a pre-programmed unit from Flagship One offers a convenient solution that restores your truck’s reliability without extra steps.
