1990 Mazda B2200 PCM/ECM: Location, Symptoms, and Replacement Guide

If you own a 1990 Mazda B2200 with the 2.2L engine and you’re experiencing starting or running issues, the PCM/ECM (Powertrain Control Module) may be the culprit. This electronic brain controls fuel delivery, spark timing, and emissions functions. When it fails, the engine may crank but not fire, stall without warning, or run rough. Because this is a pre-OBD-II vehicle, you won’t see diagnostic trouble codes on a standard scan tool—so you need to rely on symptoms and physical inspection. This article explains exactly where the module is located, how to access it, what symptoms to watch for, and what replacement involves. We’ll also cover how a pre-programmed unit from a specialist supplier can save you time and hassle. By the end, you’ll have a clear understanding of the PCM/ECM in your B2200 and what to do if it fails.

What the ECM Does in a 1990 Mazda B2200

The PCM/ECM in your 1990 Mazda B2200 is the central computer that manages the engine’s operation. It receives input from sensors like the throttle position sensor, coolant temperature sensor, and oxygen sensor, then adjusts fuel injector pulse width, ignition timing, and idle speed accordingly. In this pre-OBD-II vehicle, the module uses a simpler logic than later systems, but it still performs critical tasks such as controlling the fuel pump relay and monitoring the alternator output. When the PCM/ECM fails, the engine may lose spark, fuel delivery, or both. Because the B2200’s 2.2L engine relies on this module for basic timing control, a faulty unit can cause hard starting, stalling, or a complete no-start condition. The module also communicates with the vehicle’s check engine light, but without OBD-II, the light only indicates a fault—it doesn’t provide a code. If you need to replace it, you’ll be looking for replacement engine computers for the B2200 that match the original specifications. Understanding what this module does helps you diagnose issues accurately and avoid replacing parts unnecessarily.

Where the ECM Is Located and What Replacement Involves

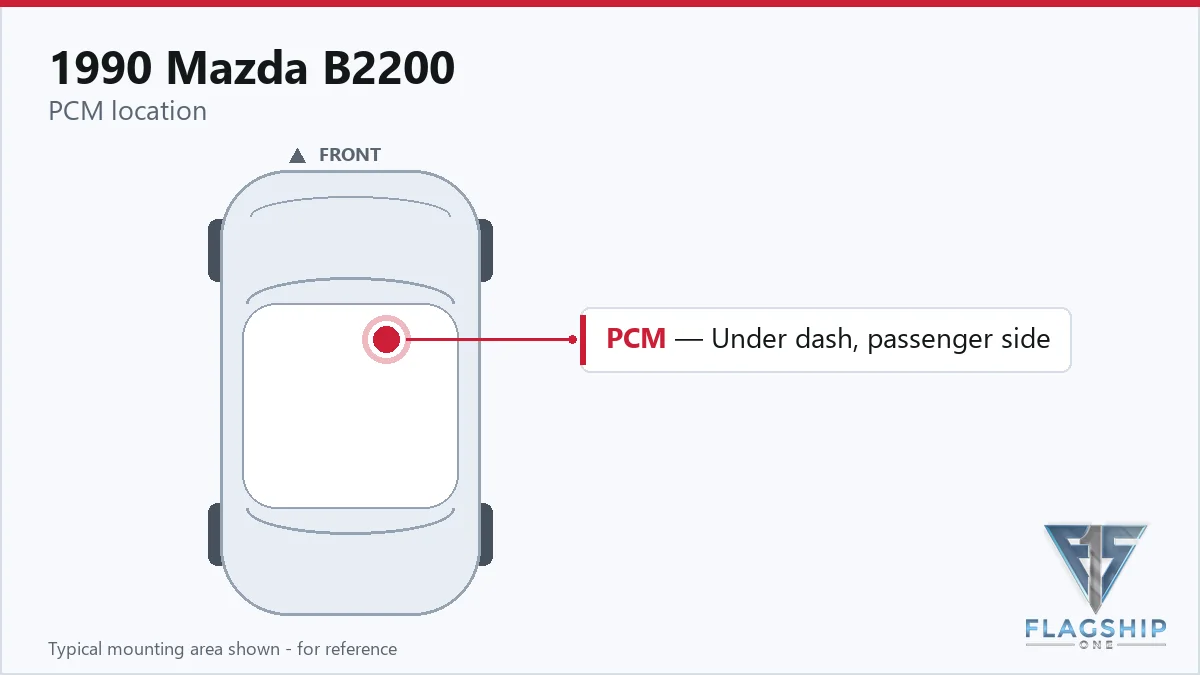

The PCM/ECM in the 1990 Mazda B2200 is mounted inside the passenger compartment, under the dashboard on the right (passenger) side. Specifically, it is attached to the front right interior panel, near the kick panel area. To access it, you’ll need to remove the lower trim panel under the glove box. The module is typically secured with a few bolts or screws. Before starting, disconnect the negative battery cable to prevent any electrical shorts. Once the trim is removed, you can unplug the wiring harness connector(s) and unbolt the module. Installation is the reverse: position the new unit, secure it with the original fasteners, reconnect the harness, and reinstall the trim. No special tools are required, but be careful not to force the connectors—they are keyed and should slide on easily. After installation, reconnect the battery and check for proper operation. The entire process typically takes less than an hour for a DIY mechanic.

Programming Requirements After Replacement

After replacing the PCM/ECM in a 1990 Mazda B2200, the factory procedure requires that the new module be programmed with the vehicle’s VIN and specific calibration data. This is done using a dealer-level scan tool that communicates with the module to set the correct parameters for the 2.2L engine. Without this programming, the engine may run poorly or not start at all. However, when you purchase a VIN-programmed replacement unit from Flagship One, that programming is already completed before shipping. The module arrives ready to install, so you can simply plug it in and drive. This eliminates the need for a trip to the dealership or a specialized scan tool, saving you time and money. Just ensure you provide the correct VIN when ordering so the calibration matches your specific vehicle.

Symptoms of a Failing ECM

When the PCM/ECM begins to fail in a 1990 Mazda B2200, you may notice several distinct symptoms. The most common is a no-start condition where the engine cranks but never fires—this happens because the module stops sending spark or fuel injector pulses. Intermittent stalling is another frequent issue; the engine may run fine for a while, then suddenly die without warning, then restart after a few minutes. You might also experience rough idling, hesitation during acceleration, or misfiring under load. Because this is a pre-OBD-II vehicle, the check engine light may illuminate but won’t provide a specific code. Another symptom is a dead scan tool communication—if you connect a diagnostic tool and it cannot establish a link with the module, the PCM/ECM is likely faulty. In some cases, the fuel pump may not prime when you turn the key, as the module controls the fuel pump relay. If you notice any of these issues, especially in combination, the PCM/ECM should be inspected and likely replaced.

Protecting the ECM in Your 1990 Mazda B2200

• Maintain a healthy charging system: keep the battery and alternator in good condition to avoid voltage spikes that can damage the PCM/ECM.
• Clean and tighten all ground connections, especially the engine-to-chassis ground strap, to ensure stable voltage reference for the module.
• Inspect the PCM/ECM wiring harness connector for corrosion, bent pins, or loose terminals; clean with electrical contact cleaner if needed.
• Avoid jump-starting the vehicle with a running donor car; connect cables only with the donor engine off to prevent voltage surges.
• Address any check engine light or drivability issues promptly—delaying diagnosis can allow a minor electrical fault to damage the module.
• Keep the module’s connector seal intact and ensure the under-dash area stays dry to prevent moisture intrusion into the PCM/ECM.

Frequently Asked Questions

Where is the PCM/ECM located on a 1990 Mazda B2200?

The PCM/ECM is mounted under the dashboard on the passenger side, attached to the front right interior panel. You’ll need to remove the lower trim panel near the glove box to access it.

Can I replace the PCM/ECM in my 1990 Mazda B2200 myself?

Yes, replacement is a straightforward DIY job. Disconnect the battery, remove the under-dash trim, unplug the harness, unbolt the old module, and install the new one. No special tools are required.

Does a replacement PCM/ECM for a 1990 Mazda B2200 need programming?

Factory procedure requires VIN and calibration programming. However, if you buy a pre-programmed unit from a supplier like Flagship One, it arrives ready to install with no additional programming needed.

What symptoms indicate a bad PCM/ECM in a 1990 Mazda B2200?

Common symptoms include no-start (engine cranks but won’t fire), intermittent stalling, rough idle, hesitation, and loss of scan tool communication. The check engine light may come on but won’t give a specific code.

Is the 1990 Mazda B2200 OBD-II compliant?

No, the 1990 Mazda B2200 is a pre-OBD-II vehicle. It does not generate standard diagnostic trouble codes (P-codes). Diagnosis relies on physical symptoms and check engine light flash patterns.

If your 1990 Mazda B2200 is showing signs of PCM/ECM failure, you have two main options: repair the original module or replace it with a refurbished unit. Repairing a failed module is often impractical due to the sealed construction and specialized components. A refurbished replacement from a trusted supplier like Flagship One is a reliable, cost-effective solution. Their units are tested, VIN-programmed, and ready to install, so you can get your B2200 back on the road quickly.

Flagship One stocks a refurbished, VIN-programmed ECM for the 1990 Mazda B2200 with a lifetime warranty, free shipping and no core charge. The full Mazda B2200 module lineup covers other engine configurations as well.

Final Thoughts

The PCM/ECM in your 1990 Mazda B2200 is a critical component that controls engine operation. When it fails, symptoms like no-start, stalling, and rough running can leave you stranded. Understanding its location under the passenger dash and the replacement process helps you tackle the job with confidence. For a hassle-free fix, consider a pre-programmed replacement unit that eliminates dealer visits and gets your B2200 running again.
