2020 Toyota Avalon ECM Replacement: Location, Labor, Programming
The Engine Control Module (ECM) in the 2020 Toyota Avalon 3.5L is the main computer that manages fuel injection, ignition timing, and emissions. Failure can cause no-start, stalling, poor performance, and trouble codes like P0606, indicating an internal module fault.
Quick Summary
- The ECM is located next to the air cleaner assembly on the 2020 Toyota Avalon 3.5L.
- Factory book time for removing and replacing the PCM is 0.7 hours.
- Access requires removing the negative battery cable, intake duct seal, and air cleaner assembly.
- A relearn procedure of 0.5 hours is required after ECM replacement.
- Factory cautions include waiting time after turning off the engine before disconnecting the battery.
If your 2020 Toyota Avalon 3.5L is experiencing engine performance issues or a check engine light, the Engine Control Module (ECM) may be the culprit. The ECM is the brain of your engine, controlling fuel delivery, spark timing, and emissions. When it fails, you may notice no-start, stalling, or a P0606 code. This guide covers where the ECM is located, what replacement involves using factory book times, and the programming steps required afterward. You will also learn common symptoms and how a pre-programmed replacement can save time.
What the PCM Does in a 2020 Toyota Avalon
The Engine Control Module (ECM) in the 2020 Toyota Avalon 3.5L is a dedicated computer that processes sensor data to optimize engine performance and emissions. It adjusts fuel injection, ignition timing, and variable valve timing based on driving conditions. A failing ECM can cause drivability problems and set internal trouble codes. If you need a replacement, consider replacement ECMs for the 2020 Avalon that come pre-programmed to your vehicle’s specifications, eliminating the need for dealer-level programming.
Where the PCM Is Located and What Replacement Involves

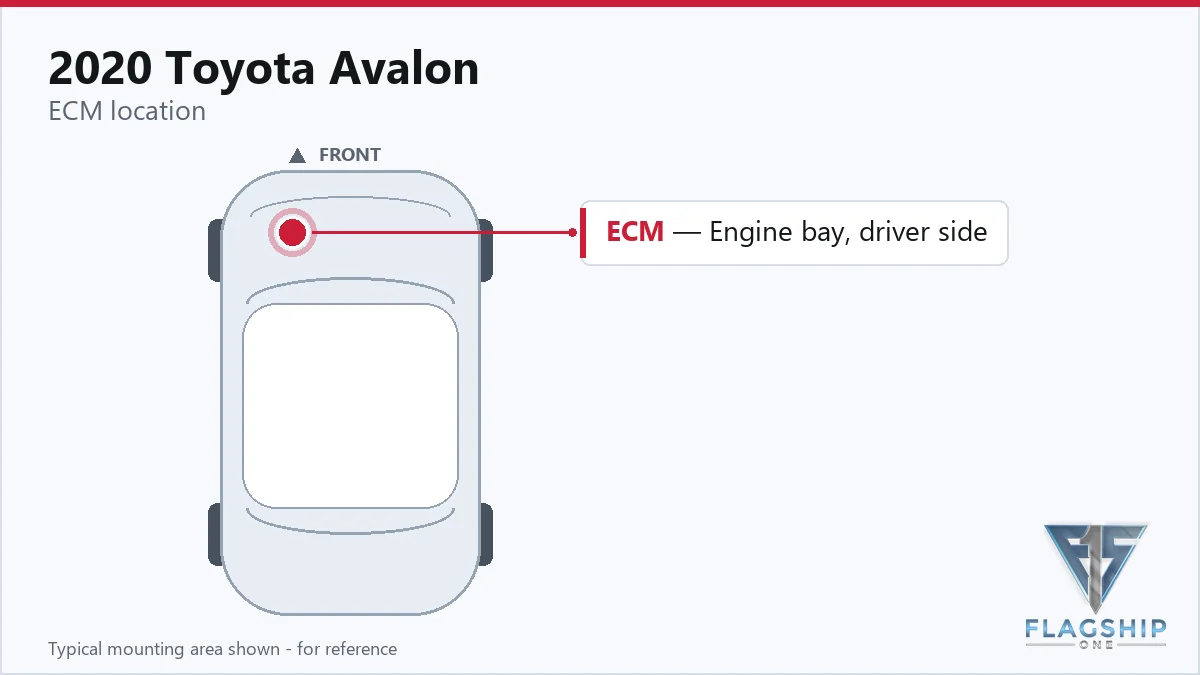

The ECM on the 2020 Toyota Avalon 3.5L is located next to the air cleaner assembly. Factory book time for removing and replacing the PCM is 0.7 hours. Access requires disconnecting the cable from the negative battery terminal, then removing the cool air intake duct seal, the inlet air cleaner assembly, and the air cleaner assembly with the air cleaner hose. The factory cautions that after turning the engine switch off, a waiting time may be required before disconnecting the battery cable. After installation, a PCM relearn of 0.5 hours or an ECM reset of 0.3 hours may be necessary.
How to Reach the PCM on the 2020 Toyota Avalon
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Click here More Info.
- REMOVE COOL AIR INTAKE DUCT SEAL Click here More Info.
- REMOVE INLET AIR CLEANER ASSEMBLY Click here More Info.
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE Click here More Info.
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
- Remove the 2 bolts, nut and ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After replacing the ECM on the 2020 Toyota Avalon 3.5L, the factory procedure requires a relearn or reset. The book times are 0.5 hours for a PCM relearn, 0.5 hours for an ECM relearn, and 0.3 hours for an ECM reset. These steps ensure the module adapts to your vehicle. However, when you order a VIN-programmed replacement unit from Flagship One, those post-install procedures are already completed, so you can install and drive without additional programming.
Symptoms of a Failing PCM
Common symptoms of a failing ECM on the 2020 Toyota Avalon 3.5L include no-start, intermittent stalling, misfire codes, and loss of communication with a scan tool. You may also notice poor fuel economy or erratic shifting. If the module has an internal fault, it may set internal control module error P0606 which points to a problem within the ECM itself rather than an external sensor. Addressing these symptoms promptly can prevent further drivability issues.
Module Trouble Codes on the 2020 Toyota Avalon
When the ECM fails internally, it may set a diagnostic trouble code. For the 2020 Toyota Avalon 3.5L, the following module-internal code is documented. This code indicates a problem within the control module itself rather than an external sensor or circuit.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2020 Toyota Avalon
- Keep the battery and charging system in good condition to avoid voltage spikes that can damage the ECM.
- Inspect and clean ground connections and ECM connector pins periodically to ensure good electrical contact.
- Avoid jump-starting your vehicle with a high-voltage source; use a quality battery charger instead.
- Address any check engine light or trouble code promptly to prevent further module stress.
- Ensure the ECM connector seal is intact and free of moisture or corrosion.
Frequently Asked Questions
How long does it take to replace the ECM on a 2020 Toyota Avalon?
The factory book time for removing and replacing the PCM is 0.7 hours. Additional time may be needed for a relearn or reset procedure, which is listed at 0.5 hours for a PCM relearn and 0.3 hours for an ECM reset.
What is the P0606 code on a 2020 Toyota Avalon?
P0606 is a diagnostic trouble code that indicates an internal control module fault. On the 2020 Toyota Avalon 3.5L, this code typically means the ECM has an internal error and may need replacement.
Do I need to program a new ECM for my 2020 Toyota Avalon?
Yes, the factory procedure requires a relearn or reset after ECM replacement. However, a pre-programmed unit from Flagship One arrives with your VIN already loaded, so those steps are already completed.
If your 2020 Toyota Avalon 3.5L ECM has failed, you have options: repair the original module or replace it with a refurbished unit. A refurbished ECM from Flagship One is a cost-effective solution that comes pre-programmed to your vehicle, saving you the time and expense of dealer-level programming. Consider this route for a reliable fix.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2020 Toyota Avalon with a lifetime warranty, free shipping and no core charge. The full Toyota Avalon module lineup covers other engine configurations as well.
Final Thoughts
The 2020 Toyota Avalon 3.5L ECM is a critical component for engine management. If you suspect failure, a replacement from Flagship One that arrives pre-programmed for your vehicle can restore performance without additional programming steps. Trust a quality refurbished unit to get you back on the road.
