2020 Lexus ES350 PCM/ECM Service and Replacement Guide
In the 2020 Lexus ES350, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and transmission shifting. A failure typically results in loss of communication, erratic idle, or fault codes such as P0606, indicating internal processor errors.
Quick Summary
- Typical labor times range from 0.3 to 0.7 hours for module reset or replacement.
- Access requires removal of the negative battery lead, intake duct seal, and air‑cleaner components.
- After installation, a waiting period of at least 85 seconds before battery disconnection is advised.
- Factory procedures include relearn or reset steps for both PCM and ECM.
If you are facing driveability issues with your 2020 Lexus ES350, the PCM or ECM may be the source. This guide explains what these modules do, how to locate and replace them, and what factory steps follow a swap. By the end, you will understand the labor expectations, necessary safety pauses, and how a Flagship One unit can simplify the post‑install process.
What the PCM Does in a 2020 Lexus ES350
The PCM/ECM in the 2020 Lexus ES350 controls engine output, transmission shifts, and emissions functions. It processes sensor data to adjust fuel, spark, and gear selection, keeping the vehicle running smoothly. Proper operation is essential for performance and fuel economy. replacement engine control modules for the 2020 Lexus ES350 ensure the vehicle meets its original specifications.

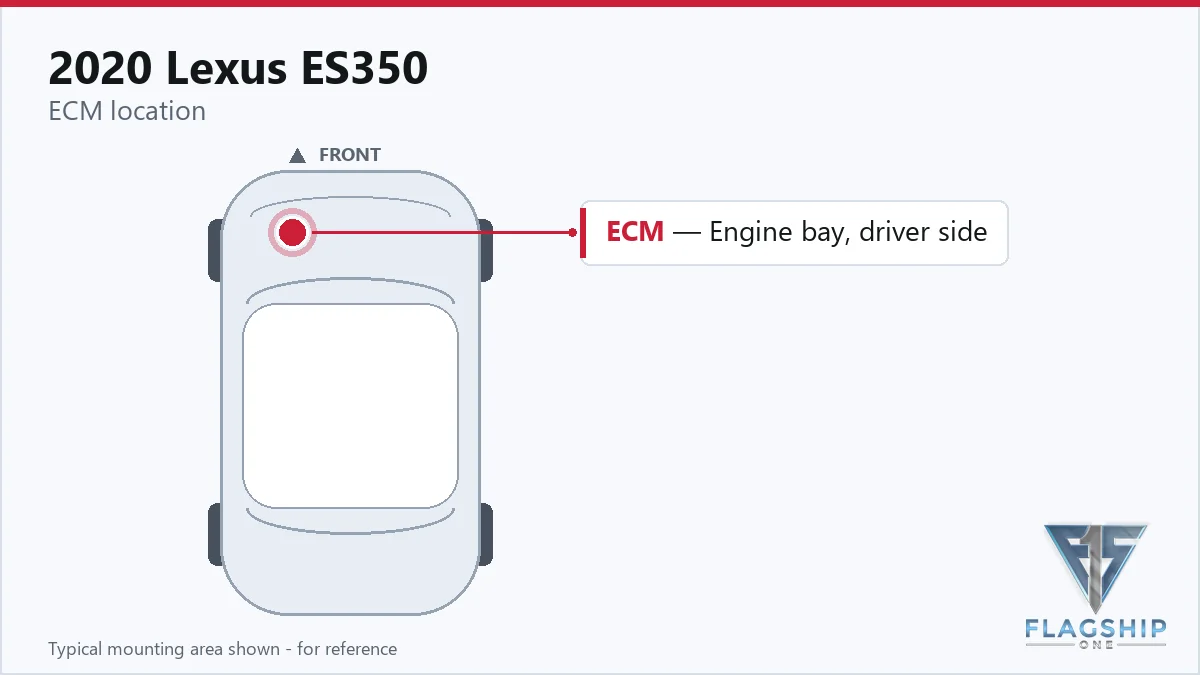

Where the PCM Is Located and What Replacement Involves
The module sits beside the air‑cleaner assembly, reachable after detaching the negative battery lead, the cool‑air intake duct seal, the inlet air cleaner, and the full air‑cleaner housing with hose. Labor times listed in the service guide indicate 0.5 hours for PCM relearn, 0.7 hours for PCM removal and replacement, 0.3 hours for ECM reset, 0.7 hours for ECM removal and replacement, and another 0.5 hours for ECM relearn. Follow the prescribed removal order to avoid damage.
How to Reach the PCM on the 2020 Lexus ES350
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Click here More Info.
- REMOVE COOL AIR INTAKE DUCT SEAL Click here More Info.
- REMOVE INLET AIR CLEANER ASSEMBLY Click here More Info (MY 2020-2021).
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE Click here More Info (MY 2020-2021).
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
- Remove the 2 bolts, nut and ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the new unit is installed, the factory requires a specific reset or relearn procedure to synchronize the module with the vehicle’s systems. Flagship One supplies a VIN‑programmed replacement unit, which eliminates the need for those additional steps because the calibration is already applied.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Common signs of a failing PCM/ECM in the 2020 Lexus ES350 include engine stall during idle, rough acceleration, loss of power, or an inability to start. Scan tools often report communication loss or internal processor errors such as internal processor fault. These symptoms typically appear alongside erratic transmission behavior or unexpected check‑engine warnings.
Module Trouble Codes on the 2020 Lexus ES350
The following internal trouble code list pertains specifically to the PCM/ECM in this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2020 Lexus ES350
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid using jump‑starts that can introduce voltage spikes.
- Address any fault codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What diagnostic steps should I take for a 2020 Lexus ES350 that won’t start?
Begin by scanning for fault codes, checking battery voltage, and verifying that the PCM/ECM has power and ground. If codes such as P0606 appear, consider module testing or replacement.
Can I replace the PCM on my 2020 Lexus ES350 without a dealer?
Yes, the module can be accessed with the listed components removed and installed using the documented labor times. A VIN‑programmed unit will handle the required calibrations.
How long should I wait after turning off the engine before disconnecting the battery?
The service information advises a pause of at least 85 seconds after the engine switch is turned off before removing the negative battery lead.
When the PCM or ECM fails, you can either have a certified shop perform the removal and factory‑required relearn, or opt for a refurbished Flagship One unit that arrives pre‑programmed. Both approaches restore the vehicle’s control functions, but the pre‑programmed option removes the need for additional calibration steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2020 Lexus ES350 with a lifetime warranty, free shipping and no core charge. The full Lexus ES350 module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 2020 Lexus ES350 helps return reliable performance and fuel efficiency. Consider a Flagship One replacement to simplify the post‑install process and get back on the road sooner.
