2014 Lexus ES350 PCM Replacement Guide
The Powertrain Control Module in the 2014 Lexus ES350 manages engine timing, fuel delivery, and transmission shifts. A failure can cause stalling, poor acceleration, or the engine to refuse to start.
Quick Summary
- Replacing the PCM takes less than two hours of labor.
- The module is accessed by removing the negative battery cable.
- After removal, the vehicle’s VIN must be registered to the new unit.
- The PCM communicates with the ECM, so proper reconnection is essential.
- A code P0606 indicates a problem with the PCM’s internal data.
If your 2014 Lexus ES350 is showing signs of engine trouble—such as a rough idle, stalling, or a persistent check engine light—you may need to replace the Powertrain Control Module. This guide walks you through the steps for removing the old PCM, installing a new one, and completing the factory-required post‑installation procedures. You’ll learn how to access the module, the exact labor times, and the key caution about VIN registration. With this knowledge, you can confidently decide whether to repair the existing unit or opt for a refurbished replacement.
What the PCM Does in a 2014 Lexus ES350
The Powertrain Control Module, or PCM, sits at the heart of the 2014 Lexus ES350’s engine management system. It processes sensor inputs—such as crankshaft position, throttle position, and coolant temperature—to determine the correct fuel injector pulses, ignition timing, and transmission shift points. Lexus ES350 PCM The PCM also coordinates with the Engine Control Module to balance performance and emissions. When the PCM fails, the vehicle may exhibit a range of symptoms from a weak idle to a complete loss of power. Because the PCM governs so many critical functions, a malfunction often triggers diagnostic trouble codes and can prevent the engine from starting altogether.
Where the PCM Is Located and What Replacement Involves
The PCM is located under the passenger seat, beneath the seat cushion. To access it, the technician must first disconnect the negative battery cable. The removal of the negative cable is the only step listed for reaching the module. Once the cable is removed, the PCM can be taken out and replaced. The labor times for the entire procedure are: Powertrain Control Module Relearn 0.5 hours, Powertrain Control Module R&R 1.1 hours, Engine Control Module Reset 0.3 hours, Engine Control Module R&R 1.1 hours, Engine Control Module Relearn 0.5 hours.

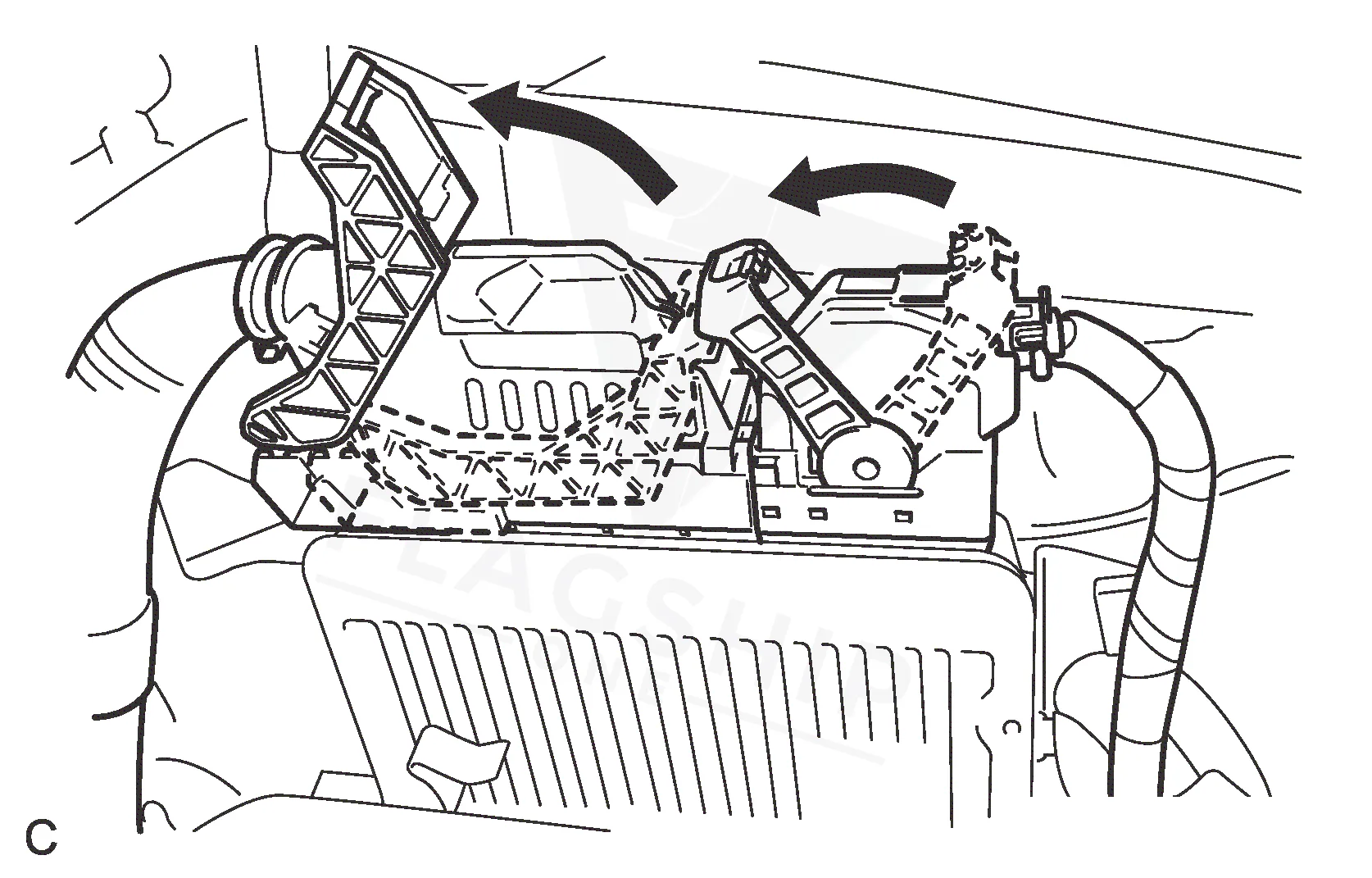

How to Reach the PCM on the 2014 Lexus ES350
- Disconnect cable from negative battery terminal.
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE BATTERY More Info.
- Disconnect the 2 ECM connectors.
- Remove the nut.
- Remove the screw.
- Loosen the screw and remove the ECM.
- Remove the 2 screws and No.
- Disconnect the wire harness clamp.
- Remove the nut and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the new PCM is installed, the vehicle’s factory requires the VIN to be registered to the unit. Flagship One units come pre‑programmed with the correct VIN, so that step is already complete. The technician still must reconnect the negative battery cable and initialize any systems that were affected by the disconnect. Because the new unit is already VIN‑programmed, the only post‑installation requirement is to reconnect the battery and run the relearn sequence. VIN‑programmed replacement unit for the correct application.
Symptoms of a Failing PCM
When the PCM in a 2014 Lexus ES350 fails, drivers may notice a sluggish throttle response, the engine may stall when idling, or the vehicle might not start at all. The check engine light often illuminates, and the code P0606 may appear, indicating an internal PCM data fault. Other signs include erratic shifting, a rough idle, or intermittent misfires that do not resolve with a simple reset.
Module Trouble Codes on the 2014 Lexus ES350
The 2014 Lexus ES350’s PCM can generate specific trouble codes that help pinpoint the issue. The table below lists the internal codes that may be logged during diagnostics.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Lexus ES350
- Keep the battery’s charging system in good condition to avoid voltage spikes.
- Ensure all electrical connectors, especially the PCM’s, are clean and securely fastened.
- Avoid using a jump‑starter unless the battery is fully charged.
- Address any diagnostic trouble codes promptly to prevent further damage.
- Maintain the integrity of connector seals to prevent moisture ingress.
- Check the battery cable connection before starting the engine.
Whether you choose to repair the existing PCM or opt for a refurbished replacement, the process remains the same. A qualified technician will handle the removal, install the new unit, and complete the relearn cycle. Once the new PCM is in place, your 2014 Lexus ES350 should return to normal operation.
