2020 Chrysler Voyager PCM and ECM Relearn Procedures
In the 2020 Chrysler Voyager the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing and transmission shifting. A failure in either unit can trigger loss of engine power, erratic shifting, or communication loss with diagnostic tools, often accompanied by internal trouble codes such as P0601 or P0606.
Quick Summary
- PCM relearn requires about half an hour of labor.
- ECM reset can be completed in roughly three‑tenths of an hour.
- Both modules are accessed near the air cleaner assembly.
- Factory procedures include specific relearn steps after replacement.
When a 2020 Chrysler Voyager experiences powertrain control issues, the repair often involves replacing the PCM or ECM. Understanding the function of these modules, their location, and the required post‑install procedures helps you make an informed decision. This guide explains what the modules do, how they are accessed, the labor involved, and why proper programming matters, so you can evaluate repair options with confidence.
What the PCM Does in a 2020 Chrysler Voyager
The PCM and ECM in a 2020 Chrysler Voyager act as the vehicle’s central computers, interpreting sensor data to control fuel injection, ignition timing and transmission shift points. Their operation is critical for smooth acceleration and fuel efficiency. Because they communicate with each other, a fault in one can affect overall drivability. The vehicle often relies on these units to meet emissions standards and maintain performance. replacement powertrain control modules for the 2020 Chrysler Voyager are engineered to match the original specifications and ensure seamless integration.

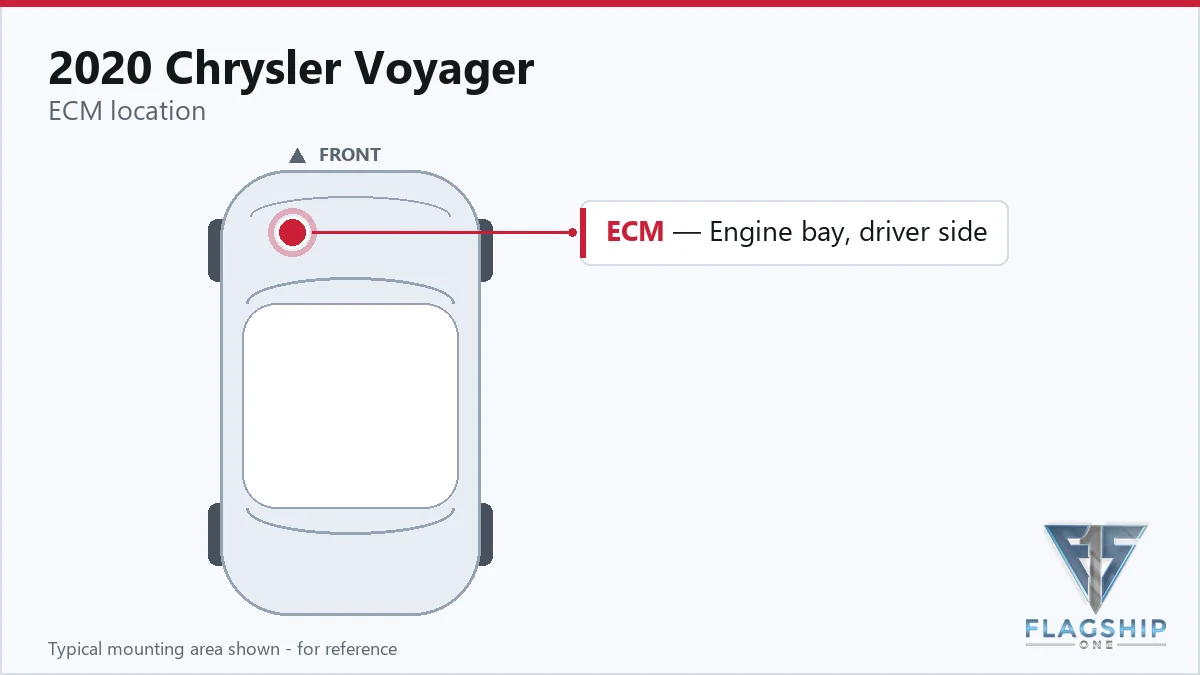

Where the PCM Is Located and What Replacement Involves
The control modules sit beside the air cleaner assembly, making them reachable without major disassembly. Removing the PCM or ECM typically follows the factory removal procedure that provides access to the module adjacent to the air cleaner. Labor times listed in the service guide indicate 0.8 hours for a PCM removal and reinstall, and the same 0.8 hours for an ECM replacement. The process involves disconnecting the connector, unbolting the unit, and securing the new module in place.
How to Reach the PCM on the 2020 Chrysler Voyager
- Remove the air cleaner body.
- Remove the three nuts securing the PCM to the PCM bracket.
- Lift the PCM off of the bracket and remove the PCM from the engine compart.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory service requires a relearn or reset operation to calibrate the vehicle’s systems. For the PCM, a relearn step takes about half an hour, while the ECM reset needs roughly three‑tenths of an hour. Flagship One units arrive pre‑programmed to the vehicle’s VIN, so a VIN‑programmed replacement unit eliminates the need for these additional steps on most installations.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2020 Chrysler Voyager include a no‑start condition, rough idle, unexpected stalling, or loss of shift control. Diagnostic scans often reveal internal fault codes; for example, processor communication error may appear when the module cannot communicate properly. Drivers may also notice erratic engine performance or a complete loss of powertrain control.
Module Trouble Codes on the 2020 Chrysler Voyager
The following internal trouble codes have been documented for the 2020 Chrysler Voyager’s PCM and ECM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2020 Chrysler Voyager
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean ground connections regularly.
- Avoid high‑voltage spikes from jump‑starts.
- Address any diagnostic codes promptly.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What should I do if my 2020 Chrysler Voyager shows a P0606 code?
A P0606 code indicates a processor clock signal issue. You may need to inspect the PCM/ECM connections and consider a module replacement if the fault persists after cleaning the connectors.
Can I replace the PCM in my 2020 Chrysler Voyager myself?
The PCM is accessible near the air cleaner, and the labor time is listed as 0.8 hours. However, proper programming is required after replacement, which typically involves a relearn procedure.
Is a factory‑programmed ECM necessary for my 2020 Chrysler Voyager?
Factory‑programmed ECMs are calibrated to your vehicle’s VIN, ensuring the required reset steps are already applied, which can simplify the installation process.
When the PCM or ECM in your 2020 Chrysler Voyager needs attention, you can choose a direct repair with a new factory‑programmed unit or consider a refurbished replacement that meets the same specifications. Both options aim to restore reliable engine control while respecting the vehicle’s original design.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2020 Chrysler Voyager with a lifetime warranty, free shipping and no core charge. The full Chrysler Voyager module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 2020 Chrysler Voyager helps maintain performance and prevent further drivetrain problems. Evaluate your repair path carefully and consider a VIN‑programmed replacement to simplify the process.
