2019 Toyota Avalon Hybrid Powertrain and Engine Control Module Service Guide
In the 2019 Toyota Avalon Hybrid, the powertrain control module and engine control module manage fuel delivery, ignition timing, and hybrid system coordination. A failure typically interrupts communication between the engine and hybrid components, triggering diagnostic codes and loss of powertrain function.
Quick Summary
- The PCM and ECM are located beside the air cleaner assembly.
- Factory removal requires disconnecting the negative battery cable and several intake components.
- Labor times range from 0.3 to 0.7 hours per operation.
- Post‑install procedures include relearn and reset steps.
When a 2019 Toyota Avalon Hybrid exhibits symptoms like a no‑start condition or unexpected stalling, the powertrain and engine control modules are often the culprits. Understanding how these modules function, where they sit, and what factory procedures follow replacement can help you assess repair options. This guide walks you through the essential facts so you know what to expect during diagnosis and service.
What the PCM Does in a 2019 Toyota Avalon Hybrid
The powertrain control module and engine control module in the 2019 Toyota Avalon Hybrid act as the vehicle’s central computers, processing sensor data to control fuel injection, ignition timing, and hybrid system engagement. They ensure smooth power delivery and efficient operation, making them critical for overall drivability. Proper function is essential for emissions compliance and performance, and any fault can trigger the P0606 code. Replacement parts are often referred to as 2019 Avalon Hybrid replacement control modules within service literature.

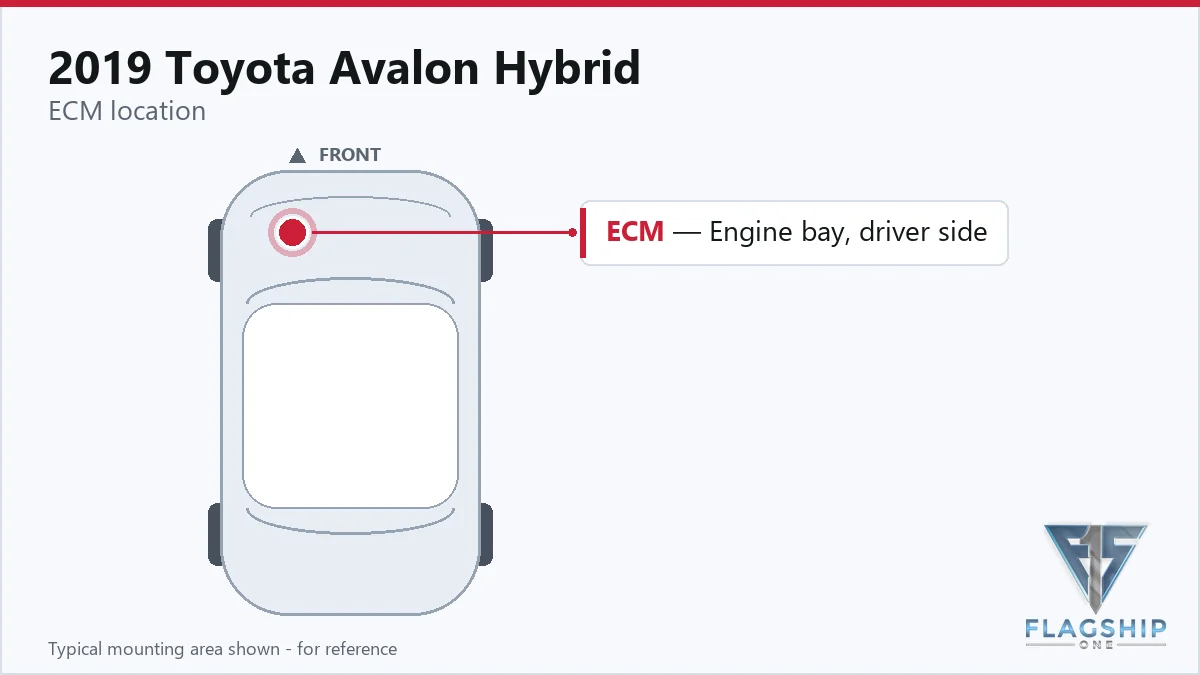

Where the PCM Is Located and What Replacement Involves
The control modules sit next to the air cleaner assembly, accessed by removing the cable from the negative battery terminal, the cool air intake duct seal, the inlet air cleaner assembly, and finally the air cleaner assembly with its hose. Factory labor times list 0.7 hours for removal and replacement of the powertrain control module, 0.7 hours for the engine control module, and additional relearn or reset steps ranging from 0.3 to 0.5 hours each. Follow the caution notes about waiting after turning off the engine or power switch before disconnecting the negative cables.
How to Reach the PCM on the 2019 Toyota Avalon Hybrid
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Click here More Info.
- REMOVE COOL AIR INTAKE DUCT SEAL Click here More Info.
- REMOVE INLET AIR CLEANER ASSEMBLY Click here More Info.
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE Click here More Info.
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
- Remove the 2 bolts, nut and ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure calls for a powertrain control module relearn, an engine control module relearn, and a reset of the engine control module. Flagship One supplies a a VIN‑programmed replacement unit that arrives with those calibration steps already completed, eliminating the need for on‑site programming.
Symptoms of a Failing PCM
Typical signs of a failed powertrain or engine control module in the 2019 Avalon Hybrid include a complete no‑start condition, intermittent stalling, loss of hybrid power assistance, and inability to communicate with a scan tool. The vehicle may also store the diagnostic trouble code Powertrain Control Module Internal Malfunction when the module cannot perform its internal self‑test.
Module Trouble Codes on the 2019 Toyota Avalon Hybrid
The following internal diagnostic code is documented for the 2019 Toyota Avalon Hybrid’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2019 Toyota Avalon Hybrid
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and keep ground connections clean and secure.
- Avoid jump‑start voltage spikes that can damage electronic modules.
- Address stored codes promptly to prevent further module stress.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What does the P0606 code indicate on my 2019 Toyota Avalon Hybrid?
P0606 signals an internal malfunction within the powertrain control module, often caused by communication failures or corrupted firmware.
Do I need special tools to replace the ECM in a 2019 Avalon Hybrid?
The replacement process uses standard hand tools, but you must follow the factory steps for disconnecting the negative battery cable and removing intake components.
Can a VIN‑programmed replacement unit eliminate the relearn steps?
Yes, a VIN‑programmed unit arrives pre‑calibrated, so the factory relearn and reset procedures are already satisfied.
When the control modules in a 2019 Toyota Avalon Hybrid need service, you can choose a brand‑new OEM replacement or a refurbished unit that meets the original specifications. Both options restore the vehicle’s electronic management, but a refurbished module from Flagship One offers a cost‑effective solution while still meeting factory calibration standards.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2019 Toyota Avalon Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota Avalon Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Addressing a faulty powertrain or engine control module in your 2019 Toyota Avalon Hybrid helps return reliable performance and hybrid efficiency. Consider the repair paths available and choose the option that fits your budget and confidence level.
