2019 Lexus UX250h Engine Control Module Service
The Engine Control Module in the 2019 Lexus UX250h manages fuel injection, ignition timing, and emission controls. A failure can disrupt engine operation, trigger diagnostic codes, and cause loss of power or stalling. Proper removal, installation, and post‑install procedures are essential to restore normal function.
Quick Summary
- Removal requires accessing the module behind the air cleaner assembly.
- Factory procedures call for a 85‑second wait after power off before battery disconnect.
- Post‑install steps include a control module relearn and possible reset.
- Flagship One units arrive pre‑programmed, eliminating the need for VIN coding.
When the Engine Control Module in a 2019 Lexus UX250h needs replacement, the job involves more than simply swapping parts. You will encounter a specific access route, a short waiting period after power is removed, and mandatory calibration steps before the vehicle can run again. This guide explains what the module does, how to reach it, the labor involved, and what factory‑required procedures follow installation so you can plan the repair with confidence.
What the PCM Does in a 2019 Lexus UX250h
In the 2019 Lexus UX250h, the Engine Control Module monitors and directs engine functions such as fuel delivery, spark timing, and emissions compliance. It stores sensor data, runs diagnostic checks, and communicates with the transmission for smooth shifting. Because it controls core performance parameters, any fault can affect drivability and fuel economy. The module works in concert with the powertrain control system, and a proper engine computers for 2019 UX250h replacement is critical to maintain vehicle reliability.

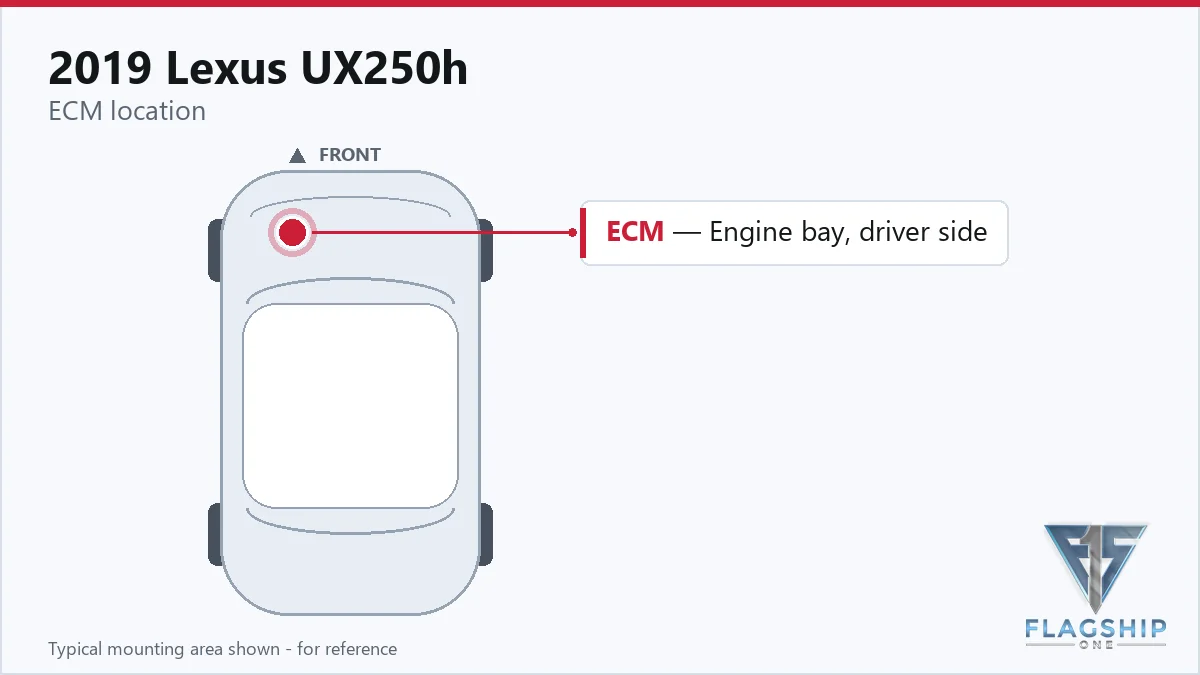

Where the PCM Is Located and What Replacement Involves
The module sits adjacent to the air cleaner assembly, reachable by removing several components in sequence: first the cable from the negative auxiliary battery terminal, then the No. 1 engine cover sub‑assembly, followed by the radiator support opening cover, the No. 1 air cleaner inlet, the air cleaner cap with hose, and finally the air cleaner filter element sub‑assembly. Labor times listed in the factory guide are 0.8 hours for removal and replacement, with an additional 0.5 hours for a relearn operation after installation.
How to Reach the PCM on the 2019 Lexus UX250h
- Disconnect cable from negative auxiliary battery terminal.
- REMOVE RADIATOR SUPPORT OPENING COVER Click here More Info.
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Click here More Info.
- REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY Click here More Info.
- Remove air cleaner case sub-assembly.
- Remove the 2 bolts.
- Disconnect the 3 connectors from the engine room relay block.
- Raise the 2 lock levers while pushing the locks on the levers, and disconnect the 2 ECM connect.
- Remove the bolt to separate the engine wire.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the module is installed, the factory service flow requires a control module relearn and a short waiting period before reconnecting the battery. Flagship One supplies a a VIN-programmed replacement unit that arrives with the correct vehicle identification data already loaded, so the relearn step is the only post‑install action needed.
Symptoms of a Failing PCM
Typical signs of a failing Engine Control Module in this Lexus include the engine not starting, intermittent stalling, rough idle, or loss of power during acceleration. Diagnostic scans often reveal a communication failure and may display a internal control module error on the scan tool. These symptoms usually appear alongside other warning lights and can affect transmission shifting as well.
Module Trouble Codes on the 2019 Lexus UX250h
The following internal diagnostic code is commonly associated with Engine Control Module issues in the 2019 Lexus UX250h:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2019 Lexus UX250h
- Maintain a healthy charging system to avoid voltage stress on the module.
- Inspect and clean ground connections and module connectors regularly.
- Use a surge protector or avoid aggressive jump‑starts that can spike voltage.
- Address any diagnostic trouble codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What does the P0606 code indicate for my 2019 Lexus UX250h?
P0606 signals an internal fault within the Engine Control Module. It suggests the module’s processor or memory has encountered an error, which can cause loss of engine control functions.
How long does it take to replace the ECM in a 2019 Lexus UX250h?
Factory labor times estimate about 0.8 hours for removal and replacement, plus an additional 0.5 hours for the required relearn procedure after installation.
Do I need to program a new ECM for my 2019 Lexus UX250h?
When using a Flagship One unit, the VIN programming is pre‑loaded, so only the standard post‑install relearn step is required.
When the Engine Control Module fails, you can choose a repair that follows the factory steps or opt for a refurbished replacement that meets the same specifications. Both approaches require the same access route and post‑install relearn, but a pre‑programmed unit can reduce the time spent on VIN coding.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2019 Lexus UX250h with a lifetime warranty, free shipping and no core charge. The full Lexus UX250h module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Engine Control Module in your 2019 Lexus UX250h restores engine management and drivability. Consider a pre‑programmed replacement to streamline the process and get back on the road sooner.
