2017 Mazda CX-3 PCM/ECM Replacement and Common Failure Signs
The powertrain control module (PCM) in your 2017 Mazda CX-3 manages engine and transmission functions. Failure may cause erratic performance, warning lights, or a vehicle that won’t start due to corrupted data or internal faults.
Quick Summary
- PCM controls engine and transmission operations in the 2017 Mazda CX-3.
- Replacement typically requires less than 1 hour of labor, plus relearn procedures.
- Incorrect installation may lead to engine control interference.
- Factory programming is necessary after replacement unless using a pre-programmed unit.
- Stored trouble codes like P0601 often indicate internal PCM issues.
If your 2017 Mazda CX-3 is stalling, refusing to start, or displaying warning lights, the powertrain control module (PCM) may be at fault. This critical component oversees engine and transmission functions, and its failure can disrupt drivability. Understanding its role, replacement steps, and common symptoms helps you make informed decisions. Whether you’re diagnosing an issue or preparing for a repair, knowing the labor involved and factory requirements ensures a smoother process. A properly functioning PCM keeps your vehicle running reliably, so addressing problems early is key.
What the PCM Does in a 2017 Mazda CX-3
The PCM in your 2017 Mazda CX-3 acts as the brain for both engine and transmission systems. It processes sensor data to optimize fuel delivery, ignition timing, and gear shifts, ensuring smooth operation. When it malfunctions, you may notice poor performance, warning lights, or even a no-start condition. Replacing it involves installing replacement engine computers for the CX-3, which must match the vehicle’s specifications to avoid drivability issues. A faulty PCM can lead to inefficient combustion, transmission slippage, or complete system failure if left unaddressed.

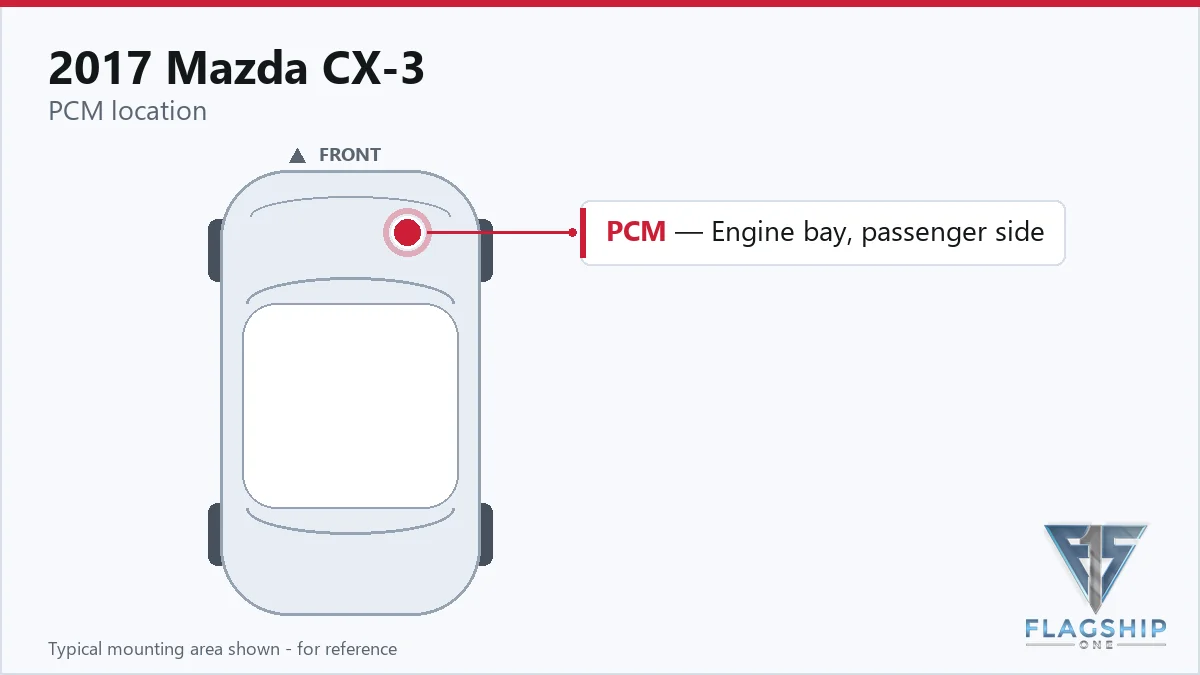

Where the PCM Is Located and What Replacement Involves
The PCM in the 2017 Mazda CX-3 is typically located near the engine bay or under the dashboard, depending on the vehicle’s configuration. Replacing it involves disconnecting the battery, removing the module’s electrical connectors, and unbolting the unit. Labor time for removal and reinstallation is approximately 0.9 hours. After installation, a relearn procedure of about 0.5 hours is often required to synchronize the module with the vehicle’s systems. If the wrong PCM is installed, it may interfere with engine control, so verifying compatibility is critical before beginning the job.
How to Reach the PCM on the 2017 Mazda CX-3
- Disconnect the negative battery cable.
- Remove the PCM together with the battery tray as a single unit.
- Remove the nuts.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2017 Mazda CX-3, the factory procedure requires reprogramming to ensure proper communication with the vehicle’s systems. This step typically takes about 0.5 hours and involves updating the module’s calibration if a newer version is available. However, using a VIN-programmed replacement unit eliminates the need for this step, as the module arrives ready to install. Skipping or improperly performing the relearn process may result in drivability issues or warning lights, so following the correct procedure is essential.
Symptoms of a Failing PCM
A failing PCM in your 2017 Mazda CX-3 may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice warning lights on the dashboard, such as the check engine or transmission warning. Common trouble codes like internal control module memory checksum error often point to PCM issues, indicating corrupted data or hardware failure. In some cases, the vehicle may enter a limp mode, limiting speed or power to prevent further damage. If you experience these symptoms, scanning for codes can help confirm whether the PCM is the root cause.
Module Trouble Codes on the 2017 Mazda CX-3
The 2017 Mazda CX-3 may store specific trouble codes when the PCM experiences internal faults. These codes help diagnose issues and guide repairs. Below are the documented module-internal trouble codes for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Mazda issued a technical service bulletin (05-004/19) addressing check engine and automatic transmission warning lights in the 2017 CX-3. The bulletin notes that one or more trouble codes—such as P0842, P0847, P0872, P0877, P0780, or P1738—may be stored in the transmission control module (TCM) memory. These codes often indicate issues related to transmission fluid pressure or shift solenoid performance, which may indirectly involve PCM communication. Following the bulletin’s diagnostic steps can help isolate the problem and determine if the PCM requires attention.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Technical Service Bulletin > Transmission/Transaxle > On-Board Diagnostics > 05-004/19 – Check | — |
Protecting the PCM in Your 2017 Mazda CX-3
- Maintain a healthy charging system to prevent voltage spikes that can damage the PCM.
- Ensure all electrical connectors and grounds are clean and securely fastened.
- Avoid jump-starting the vehicle with improper voltage, as it may harm sensitive electronics.
- Address warning lights or trouble codes promptly to prevent further damage.
- Keep the PCM connector seals intact to protect against moisture and corrosion.
Frequently Asked Questions
How do I know if my 2017 Mazda CX-3 PCM needs replacement?
Common signs include a no-start condition, stalling, or warning lights like the check engine or transmission indicator. Scanning for trouble codes, such as P0601 or P0606, can help confirm PCM issues. If the vehicle exhibits these symptoms, further diagnosis is recommended.
Can I replace the PCM in my 2017 Mazda CX-3 myself?
Replacing the PCM involves disconnecting the battery, removing electrical connectors, and unbolting the module. While the labor time is relatively short, proper installation and relearn procedures are critical. If you’re unfamiliar with these steps, professional assistance is advised to avoid drivability issues.
What happens if I install the wrong PCM in my 2017 Mazda CX-3?
Installing an incorrect PCM may cause interference with engine control, leading to poor performance or warning lights. The vehicle may not start or could operate erratically. Always verify compatibility before installation to ensure proper functionality.
If your 2017 Mazda CX-3 is experiencing PCM-related issues, you have options for repair or replacement. A refurbished or new module can restore functionality, but ensure it’s programmed to your vehicle’s VIN to avoid additional labor. Given the labor times involved, choosing a pre-programmed unit may save time and prevent post-installation headaches. Consider your budget and technical comfort level when deciding the best approach for your vehicle.

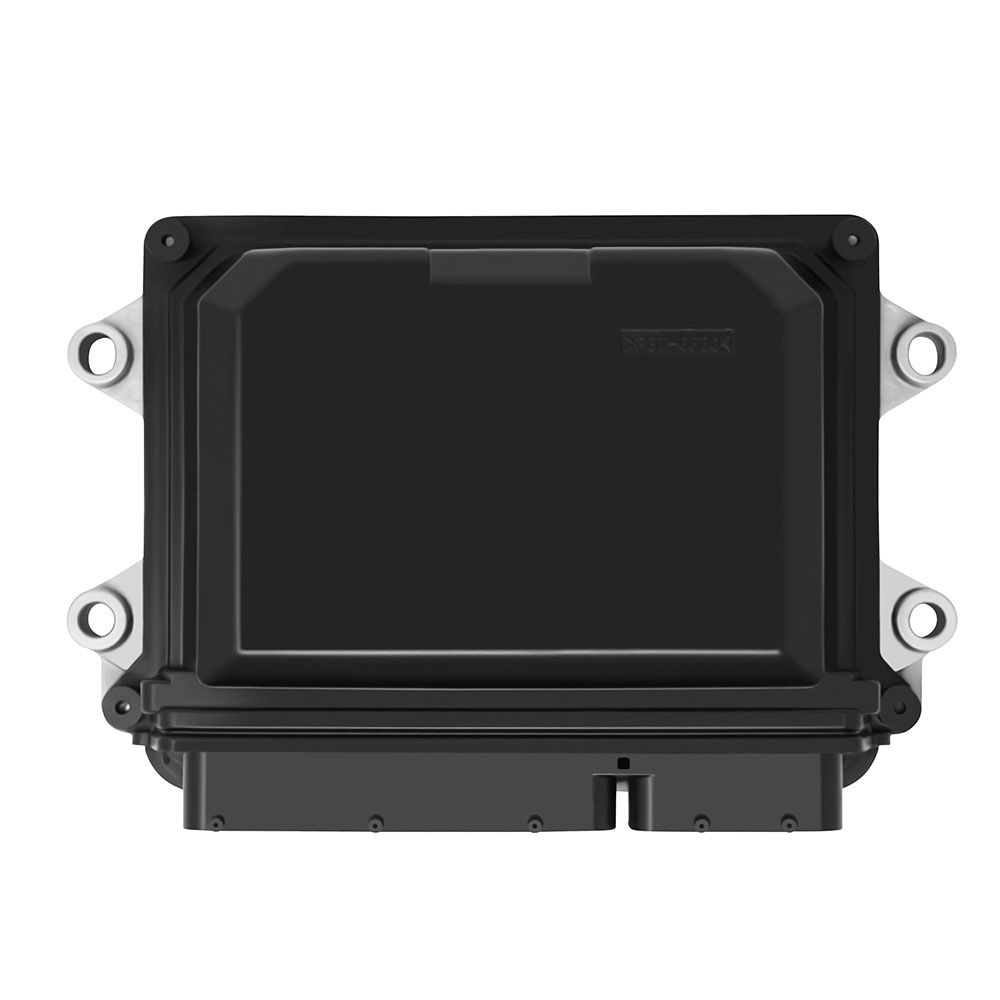

Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Mazda CX-3 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-3 module lineup covers other engine configurations as well.
Final Thoughts
The 2017 Mazda CX-3 relies on its PCM for smooth engine and transmission operation. If you’re facing drivability issues or warning lights, addressing the module promptly can prevent further complications. Whether you opt for a repair or replacement, understanding the process and requirements ensures a successful outcome. Keep your vehicle running reliably by staying informed and proactive.
