2017 Cadillac ATS Powertrain & Engine Control Module Replacement
In the 2017 Cadillac ATS the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery and transmission shift logic. A failure typically triggers internal diagnostic codes and may prevent the vehicle from starting or running smoothly.
Quick Summary
- Labor time for removing and reinstalling each module is about 1.4 hours.
- A relearn procedure of roughly half an hour follows each replacement.
- Factory guidance requires the ignition to be off when handling ECM connectors.
- Service bulletins PIP5373B and PIP5597 address programming errors and engine ID entry.
When your 2017 Cadillac ATS experiences engine‑control issues, the Powertrain Control Module (PCM) or Engine Control Module (ECM) are often the culprits. Understanding how these computers function, what the factory recommends for removal and replacement, and the programming steps required can help you decide between a repair or a refurbished replacement. This guide outlines the essential information so you can make an informed choice for your vehicle.
What the PCM Does in a 2017 Cadillac ATS
The PCM and ECM in a 2017 Cadillac ATS act as the vehicle’s central brains, processing sensor data to control fuel injection, ignition timing and transmission shifting. They ensure the engine runs efficiently and meets emissions standards. Because they coordinate many critical systems, a malfunction can quickly lead to drivability problems. Proper installation and programming are essential, and many technicians rely on replacement engine computer for 2017 ATS when original units are no longer serviceable.

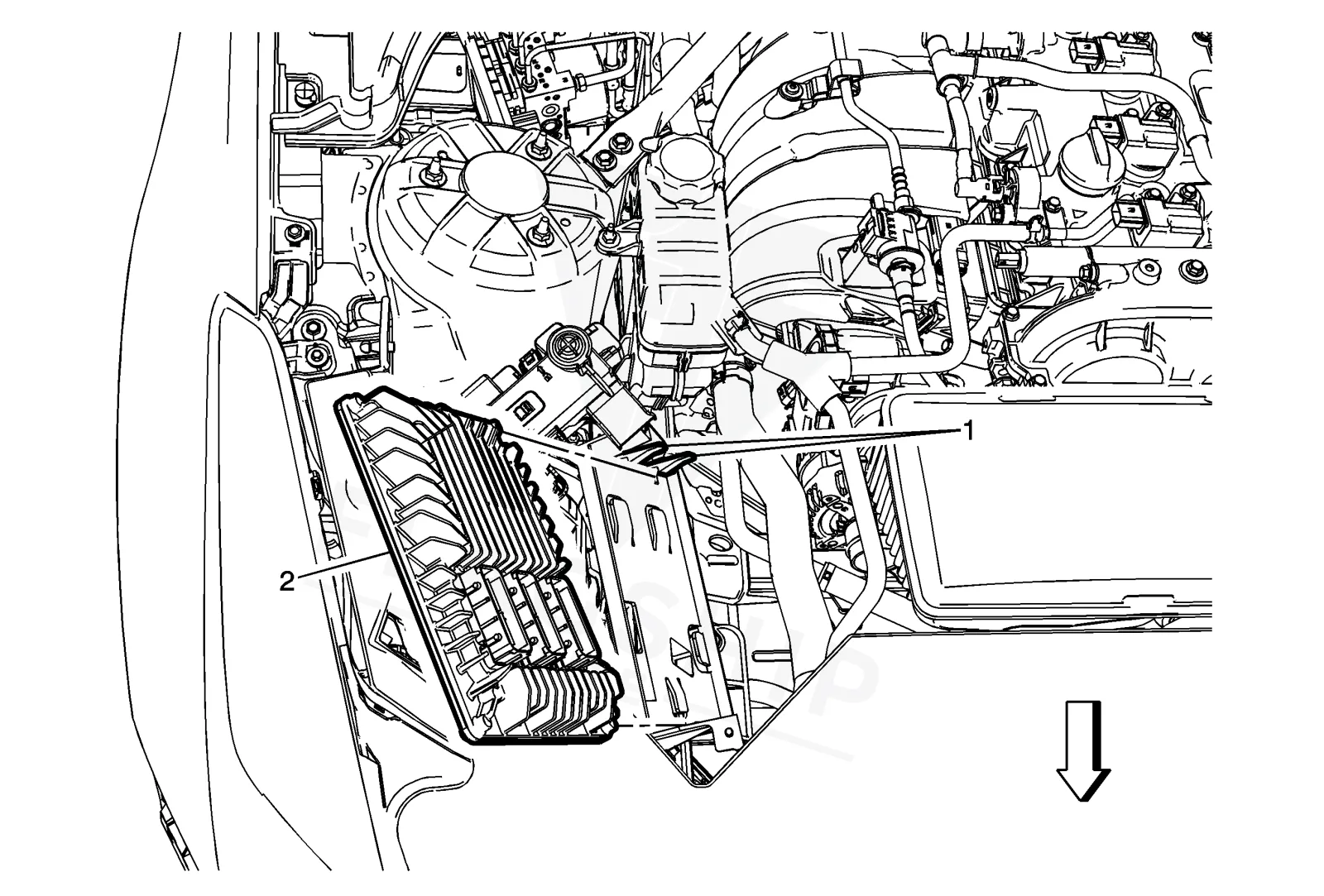

Where the PCM Is Located and What Replacement Involves
Both modules are located within the engine compartment, attached to the vehicle’s wiring harness. The book time for removing and reinstalling each unit is 1.4 hours, reflecting the need to disconnect electrical connectors and secure mounting bolts. After the hardware is swapped, a relearn step adds another 0.5 hours to verify communication with the vehicle’s networks. Technicians should follow the factory caution to keep the ignition off while handling ECM connectors to avoid damage.
How to Reach the PCM on the 2017 Cadillac ATS
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the PCM or ECM is installed, the factory procedure calls for a relearn operation that takes about half an hour. This step calibrates the new computer to the vehicle’s existing parameters. Flagship One units arrive pre‑programmed, so the a VIN-programmed replacement unit eliminates the need for additional on‑site coding, allowing you to skip the relearn and go straight to verification.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2017 Cadillac ATS include a no‑start condition, intermittent stalling, rough idle and loss of transmission shift control. Diagnostic scans often reveal internal fault codes such as P0601 internal control module error, indicating a communication problem within the module itself. You may also notice a lack of engine data on the instrument cluster or reduced performance during acceleration.
Module Trouble Codes on the 2017 Cadillac ATS
The following internal trouble codes have been documented for the 2017 Cadillac ATS and relate directly to PCM or ECM failures:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
| P064D | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Bulletin PIP5373B, dated June 11 2018, addresses programming errors E4491 and E4423 in the ECM. Bulletin PIP5597, dated October 8 2018, notes that technicians may be asked to enter the engine identification number during certain ECM programming events.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Engine identification Number Requested When Programming ECM – (Oct 8, 2018) | During the programming of some ECM’s, the technician may be prompted to input the engine identification |
Protecting the PCM in Your 2017 Cadillac ATS
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground points and connector contacts regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What labor is required to replace the PCM in a 2017 Cadillac ATS?
The factory book time lists 1.4 hours for removal and reinstall, plus an additional 0.5 hours for the required relearn procedure.
Do I need special tools to disconnect the ECM connectors on a 2017 Cadillac ATS?
No specific tools are noted, but the factory caution advises turning the ignition off before handling the connectors to prevent damage.
Can a refurbished ECM be used in place of a new one for a 2017 Cadillac ATS?
A refurbished unit that is VIN‑programmed can meet the same functional requirements, provided it passes the post‑install verification steps.
When deciding between repairing the original computer or installing a refurbished replacement, consider the labor involved and the factory programming steps. A refurbished, VIN‑programmed unit from Flagship One can streamline the process by removing the need for on‑site coding, while a repair may be appropriate if the original hardware is still in good condition.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Cadillac ATS with a lifetime warranty, free shipping and no core charge. The full Cadillac ATS module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2017 Cadillac ATS, addressing PCM or ECM issues promptly can restore reliable performance. Whether you choose a repair or a Flagship One replacement, ensure the proper procedures are followed to protect your vehicle’s engine control systems.
