2015 Cadillac ATS 2.5L ECM Failure: Symptoms, Replacement, and Programming
The Engine Control Module (ECM) in your 2015 Cadillac ATS 2.5L manages fuel delivery, ignition timing, and emissions systems. Failures may cause drivability issues, no-start conditions, or persistent internal fault codes.
Quick Summary
- ECM controls critical engine functions in the 2015 Cadillac ATS 2.5L.
- Replacement typically requires 1.4 hours of labor plus a 0.5-hour relearn procedure.
- Internal faults may trigger codes like P0601 or prevent scan tool communication.
- Factory programming demands the engine identification number in some cases.
- Pre-programmed replacement units eliminate the need for post-install setup.
If your 2015 Cadillac ATS 2.5L hesitates, stalls, or refuses to start, the Engine Control Module (ECM) may be the culprit. This small but critical computer oversees fuel injection, spark timing, and emissions controls. When it fails, symptoms can range from rough idle to complete engine shutdown. Replacing the ECM involves more than swapping hardware—it requires careful handling to avoid damage and often includes a programming step. Understanding the process helps you anticipate labor costs and avoid unnecessary delays during repairs.
What the PCM Does in a 2015 Cadillac ATS
The ECM in your 2015 Cadillac ATS 2.5L acts as the brain of the engine, interpreting sensor data to optimize performance. It adjusts fuel mixtures, ignition timing, and idle speed while monitoring emissions systems. A faulty ECM may disrupt these functions, leading to poor drivability or even a no-start condition. When replacement becomes necessary, you’ll need replacement engine computers for the Cadillac ATS that match the original specifications. Proper installation ensures the module communicates correctly with the vehicle’s network, preventing further issues.

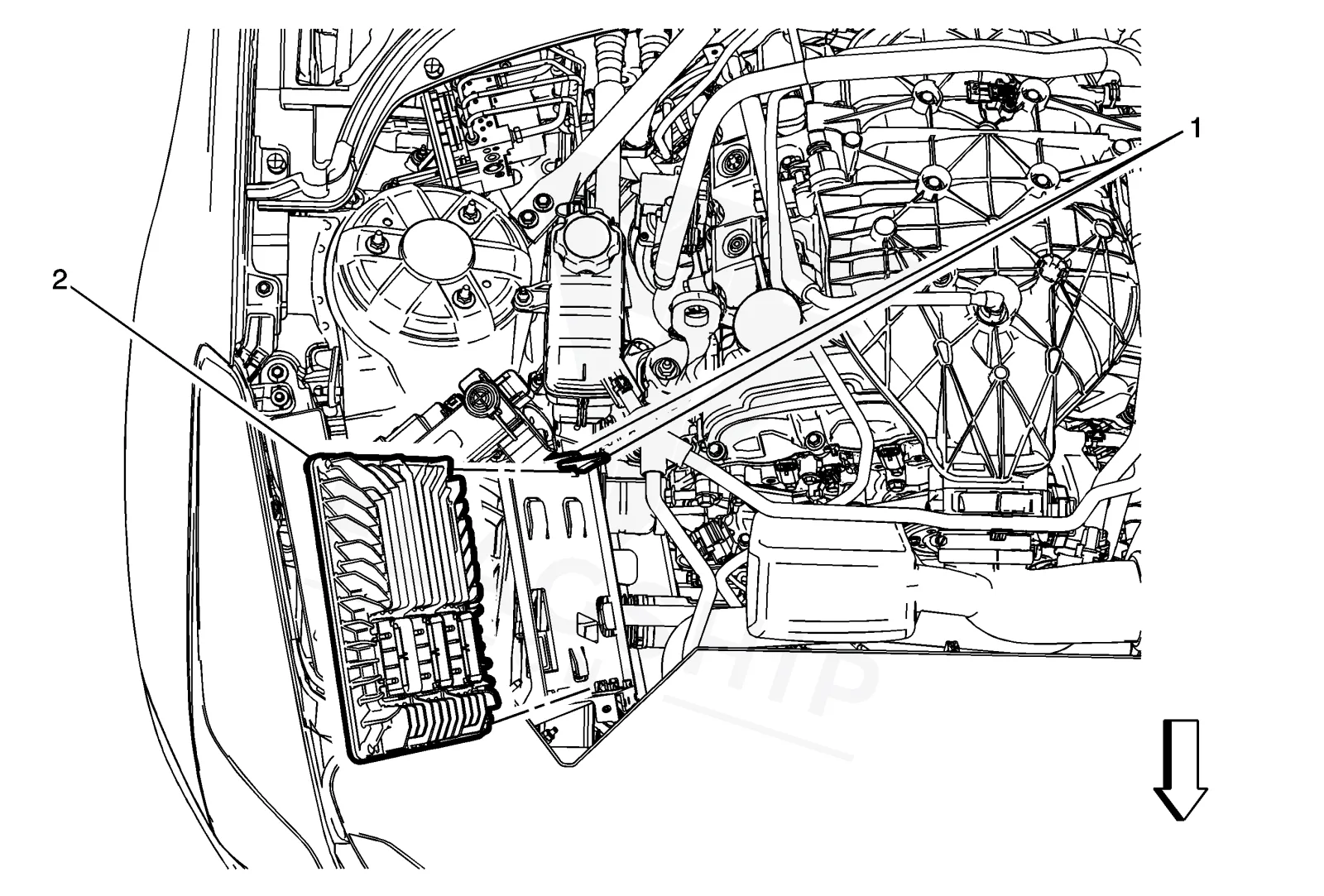

Where the PCM Is Located and What Replacement Involves
The ECM in the 2015 Cadillac ATS 2.5L is mounted near the engine bay, typically requiring removal of the air intake assembly for access. Replacing it involves disconnecting the battery, unplugging electrical connectors, and removing mounting bolts. Labor guides estimate 1.4 hours for the removal and reinstallation process. Always turn the ignition off before handling connectors to prevent damage to sensitive components. No torque specifications are provided, but bolts should be snugged evenly to avoid stressing the module housing.
How to Reach the PCM on the 2015 Cadillac ATS
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2015 Cadillac ATS 2.5L, the factory procedure often requires a relearn process, which takes about 0.5 hours. Some cases may also prompt the technician to enter the engine identification number. However, a VIN-programmed replacement unit arrives ready for installation, eliminating the need for these additional steps. This simplifies the repair and reduces the risk of programming errors that could delay the vehicle’s return to service.
Symptoms of a Failing PCM
A failing ECM in the 2015 Cadillac ATS 2.5L may cause a range of symptoms, from intermittent stalling to a complete no-start condition. You might notice rough idle, poor acceleration, or the check engine light illuminating with internal fault codes. One common code, internal control module memory checksum error, often indicates a hardware or software issue within the ECM itself. Other signs include erratic shifting or the vehicle entering a reduced-power mode to prevent further damage.
Module Trouble Codes on the 2015 Cadillac ATS
The 2015 Cadillac ATS 2.5L may log specific trouble codes when the ECM experiences internal faults. These codes help pinpoint the issue during diagnostics.
Factory Service Bulletins Worth Knowing
Factory bulletin PIP5597 notes that during ECM programming, technicians may be asked to input the engine identification number. This step ensures the module is correctly configured for your 2015 Cadillac ATS 2.5L. Skipping or incorrectly entering this information could lead to programming failures or drivability issues after the repair.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Engine identification Number Requested When Programming ECM – (Oct 8, 2018) | During the programming of some ECM’s, the technician may be prompted to input the engine identification |
Protecting the PCM in Your 2015 Cadillac ATS
- Maintain a healthy charging system to avoid voltage spikes that may damage the ECM.
- Keep electrical connectors clean and securely fastened to prevent corrosion or loose connections.
- Avoid jump-starting the vehicle with improper voltage, which can harm sensitive electronics.
- Address check engine lights promptly to prevent minor issues from escalating.
- Ensure the ECM’s connector seals remain intact to protect against moisture intrusion.
Frequently Asked Questions
Why does my 2015 Cadillac ATS 2.5L need an ECM relearn after replacement?
The relearn procedure synchronizes the new ECM with the vehicle’s existing sensors and systems. This ensures proper communication and prevents drivability issues. The process typically takes about 0.5 hours and may require specialized tools or software.
Can I drive my 2015 Cadillac ATS 2.5L with a P0601 code?
While the vehicle may still run, a P0601 code indicates an internal ECM fault that could worsen over time. Driving with this issue may lead to stalling or reduced performance. It’s best to address the code promptly to avoid further complications.
How do I know if my 2015 Cadillac ATS 2.5L ECM is failing?
Common signs include rough idle, stalling, or a no-start condition. The check engine light may illuminate with internal fault codes like P0601 or P0603. A scan tool can confirm whether the ECM is the source of the problem.
When the ECM in your 2015 Cadillac ATS 2.5L fails, you have options. A dealership replacement may include programming but often comes at a higher cost. Refurbished units, pre-programmed to your VIN, offer a reliable alternative with reduced labor time. Consider the trade-offs between cost, convenience, and warranty coverage when choosing your repair path.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Cadillac ATS with a lifetime warranty, free shipping and no core charge. The full Cadillac ATS module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2015 Cadillac ATS 2.5L plays a vital role in engine performance and drivability. If you suspect a failure, prompt diagnosis and replacement can restore reliability. Whether you opt for a new or refurbished unit, ensure it’s properly configured to avoid further issues. Addressing the problem early helps keep your vehicle running smoothly.
