2016 Nissan Versa Powertrain Control Module Replacement
In the 2016 Nissan Versa, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, and transmission shifts. When it malfunctions, engine performance can degrade, leading to stalls, misfires, and loss of power.
Quick Summary
- The PCM coordinates engine and transmission functions.
- Failure often results in irregular engine performance.
- Replacement requires a 1.3‑hour labor window.
- After replacement, the unit is already VIN‑programmed.
- The PCM can also be relearned in 0.5 hours if needed.
You’ve likely noticed your 2016 Nissan Versa behaving oddly—perhaps it stalls during acceleration or refuses to start. These symptoms can be traced back to the Powertrain Control Module, the brain of the vehicle’s engine and transmission systems. Understanding how the PCM works, why it can fail, and what a replacement entails helps you make an informed decision. By the end of this guide, you’ll know the exact location of the module, the labor required to swap it, and how the replacement unit is ready for immediate use.
What the PCM Does in a 2016 Nissan Versa
The Powertrain Control Module in the 2016 Nissan Versa governs crucial engine and transmission functions such as ignition timing, fuel injection, and shift logic. It processes data from sensors and sends commands to actuators to maintain smooth operation. If the PCM develops internal faults, it can misinterpret sensor data, causing erratic engine behavior, stalls, or even a complete loss of communication with the diagnostic tool. replacement Powertrain Control Module for the 2016 Nissan Versa The PCM’s reliability is therefore vital for both performance and safety.
Where the PCM Is Located and What Replacement Involves
The PCM sits beneath the dashboard on the passenger side, accessible by removing a panel and disconnecting a single harness. The job takes approximately 1.3 hours, during which the technician will carefully remove the old unit, install the new one, and reconnect the harness. The process involves no special torque specifications or additional tools beyond the standard removal kit.

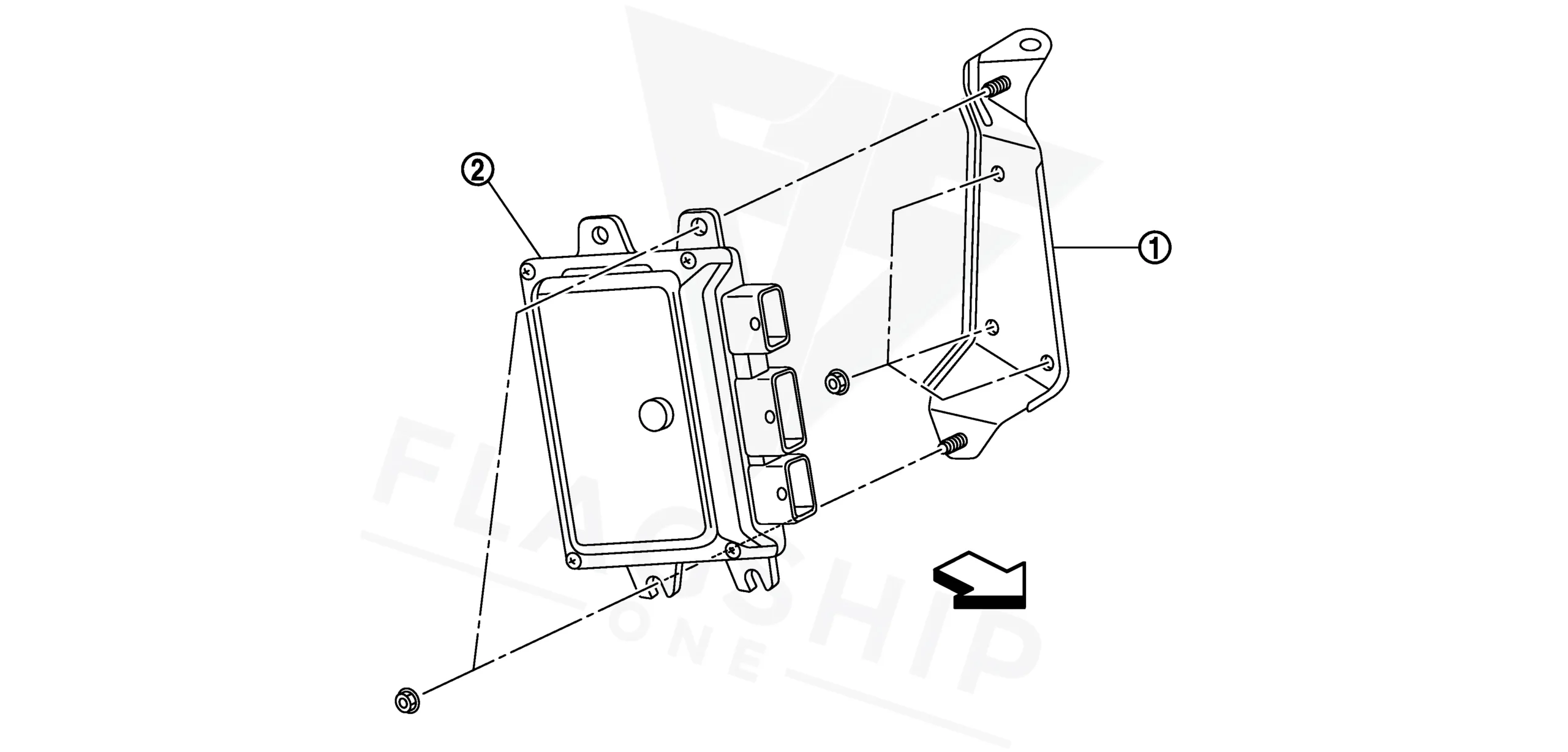

How to Reach the PCM on the 2016 Nissan Versa
- Remove battery.
- Remove IPDM E/R.
- Remove IPDM E/R cover.
- Disconnect ECM harness connectors.
- Remove ECM mounting nuts.
- Remove ECM from ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the new PCM is installed, the vehicle’s factory procedure normally requires a relearn of the transmission shift map and other calibrations. Because Flagship One units come VIN‑programmed, these steps are already completed, so the installer can skip the relearn cycle. VIN‑programmed replacement unit This means the module is ready to operate immediately after installation, eliminating the typical post‑install calibration.
Symptoms of a Failing PCM
A failing PCM in the 2016 Nissan Versa may show a range of symptoms: the engine might misfire, stall during idle or acceleration, or refuse to start altogether. The dashboard may display a generic check‑engine light, and a scan tool may report a dead communication error with the module. If a fault code appears, it will often be P0605, indicating a problem with the PCM’s internal software. These signs suggest that the module is no longer reliably processing sensor inputs and sending correct commands.
Module Trouble Codes on the 2016 Nissan Versa
The 2016 Nissan Versa may report internal trouble codes that point directly to the Powertrain Control Module. The following table lists any such codes detected during diagnostics.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2016 Nissan Versa
- Keep the vehicle’s charging system in good condition to avoid over‑voltage.
- Inspect and clean all PCM connector contacts for corrosion.
- Avoid jump‑starting the vehicle with a high‑current source that could spike the voltage.
- Address any error codes promptly before they worsen.
- Maintain proper sealing on all connector housings to prevent moisture ingress.
- Verify that the battery voltage stays within the manufacturer’s specified range.
Frequently Asked Questions
How long does it take to replace the PCM in a 2016 Nissan Versa?
The replacement typically requires about 1.3 hours of labor. This time covers removal, installation, and basic connector reconnection. No additional calibration is needed if a VIN‑programmed unit is used.
Will a new PCM fix stalling issues in my 2016 Nissan Versa?
A new PCM can resolve stalling caused by internal module faults. However, if the stall originates from a sensor or mechanical problem, further diagnosis will be necessary.
Do I need to relearn the transmission after installing a new PCM?
Normally a relearn procedure follows a PCM swap. With a VIN‑programmed replacement, the relearn is already embedded, so the installer can skip that step.
Is the Powertrain Control Module in my 2016 Nissan Versa accessible from the passenger side?
Yes, the module is located beneath the dashboard on the passenger side and can be reached by removing a small panel and disconnecting a single harness.
What code indicates an internal PCM fault in the 2016 Nissan Versa?
The code P0605 is used to report internal software or hardware problems within the Powertrain Control Module.
If your 2016 Nissan Versa is showing signs of a faulty PCM, you can choose between a comprehensive repair or a refurbished replacement. Both options are tailored to the specific needs of your vehicle, ensuring that you regain reliable performance without unnecessary delays.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Nissan Versa with a lifetime warranty, free shipping and no core charge. The full Nissan Versa module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module in your 2016 Nissan Versa restores proper engine and transmission coordination. With a VIN‑programmed unit, the process is quick and straightforward, giving you confidence that your vehicle will run smoothly again.
