2016 Nissan Versa Note PCM and ECM Replacement Guide

If your 2016 Nissan Versa Note has developed starting problems, running issues, or is displaying check engine light codes that point toward the Powertrain Control Module, you are facing a significant repair decision. The PCM (also called ECM or Engine Control Module depending on terminology) is the brain of your vehicle’s powertrain, and when it fails, the engine may not run at all or may run poorly. This guide explains what the module does in your specific vehicle, the symptoms of failure, what the replacement process involves, and why many owners choose professionally refurbished replacement units over dealer options. You will learn what to expect during diagnosis, the labor involved, programming requirements, and how to protect your investment after the repair is complete.

What the PCM Does in a 2016 Nissan Versa Note

The Powertrain Control Module in your 2016 Nissan Versa Note with the 1.6L engine serves as the central computer responsible for managing virtually every aspect of powertrain operation. This module receives input from numerous sensors throughout the engine and transmission, processes that information against programmed maps and calibrations, and then commands actuators to achieve optimal performance, fuel economy, and emissions control. The module controls fuel injector pulse width and timing, ignition spark advance, throttle body position, idle air control, transmission shift points, and the operation of the evaporative emissions system. On the Versa Note, this computer is located behind the driver’s side dashboard panel, requiring interior trim removal for access. The module stores calibration data specific to your vehicle’s Vehicle Identification Number, which is why replacement units must be programmed or pre-programmed to match. When internal memory within the PCM becomes corrupted or fails, the module may lose the ability to control the engine properly, resulting in no-start conditions, stalling, or default to limited-operation mode. Replacement engine computers for the Versa Note must include the correct VIN calibration to function properly.

Flagship One keeps Nissan Versa Note replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

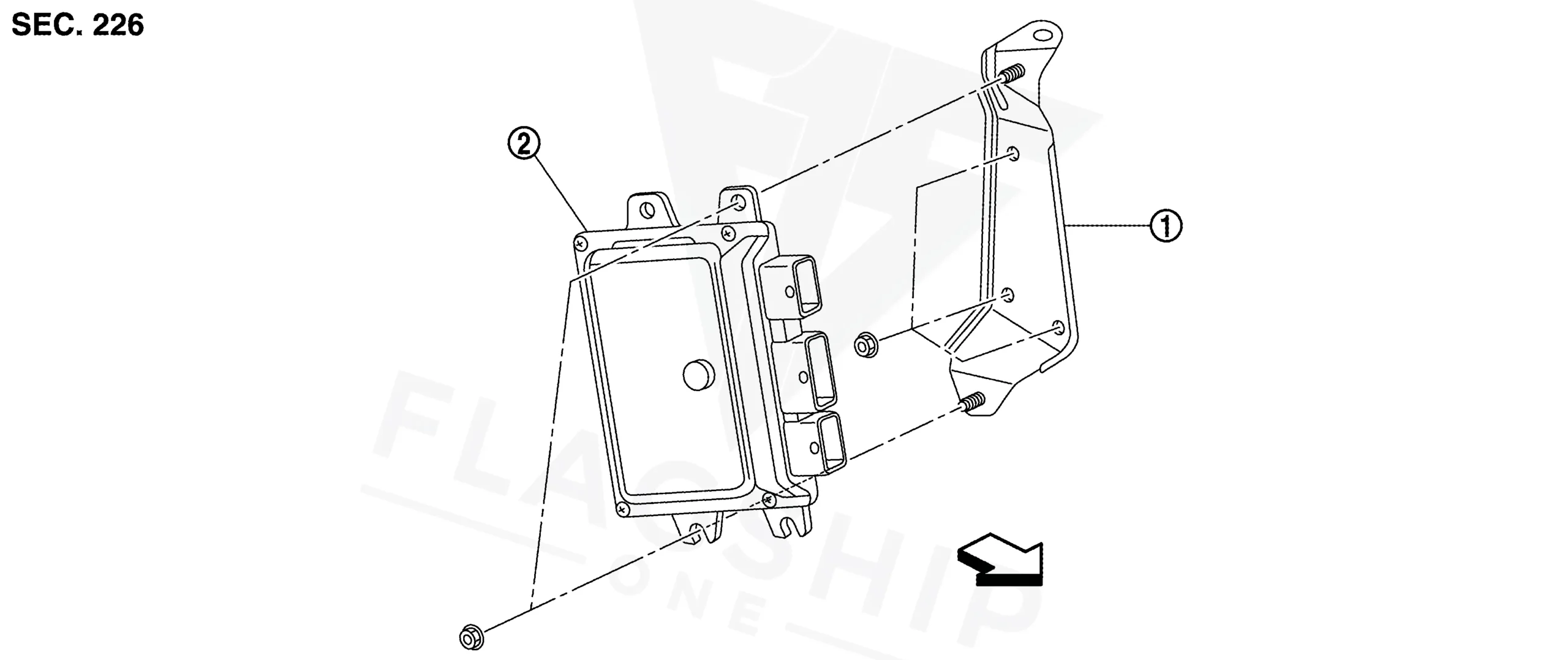

The Powertrain Control Module on your 2016 Nissan Versa Note is mounted behind the driver’s side kick panel and lower dashboard trim, requiring removal of interior panels to gain access. The replacement procedure begins with disconnecting the battery negative terminal to prevent electrical damage, then removing the driver’s side footwell trim panels and any associated ductwork that blocks access to the module mounting location. The old PCM has multiple electrical connectors that must be carefully disconnected, typically involving release tabs that can be fragile. Installation reverses this process, securing the new module with the factory mounting hardware and ensuring all connectors are fully seated and locked. Book time for the R&R operation is 1.3 hours, with an additional 0.5 hour relearn procedure required after installation to allow the new module to adapt to your specific vehicle’s sensors and actuators. The module mounting location requires working in confined spaces, and connector orientation must be verified before forcing connections to avoid pin damage.

Programming Requirements After Replacement

After installing a new or refurbished PCM in your 2016 Versa Note, the factory procedure requires performing a relearn or initialization process using a compatible scan tool. This procedure allows the new module to calibrate its learned values against your specific engine and transmission, establishing new idle air control values, fuel trims, and transmission adaptive shift patterns. The relearn process typically takes 0.5 hours of book time and may involve running the engine through specific operating modes while the scan tool monitors component responses. Flagship One units arrive VIN-programmed, which means the replacement module already contains your specific vehicle’s identification number and calibration data, eliminating the need for manual programming at the dealership. However, the post-installation relearn procedure is still recommended to ensure all adaptive values are reset and the vehicle’s systems recognize the new module properly. This programming approach saves you from dealer programming fees while still meeting factory specifications.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the Powertrain Control Module fails on your Versa Note, you may experience a range of symptoms depending on the nature of the internal fault. A no-start condition is common, where the engine cranks normally but will not fire because the PCM is not delivering fuel or spark commands. The vehicle may start but then stall unexpectedly as the module loses the ability to maintain proper idle or fuel delivery. Misfire codes may appear even when spark plugs and ignition coils are functioning correctly, indicating the PCM is incorrectly processing sensor inputs. In some cases, the scan tool may not communicate with the vehicle at all, or may show multiple unrelated fault codes across different systems. An illuminated check engine light is often present, sometimes accompanied by transmission shifting problems such as harsh shifts or failure to shift into certain gears. The specific trouble code P0605 indicates an internal memory malfunction within the control module itself, which can trigger a complete system shutdown or limp-home mode.

Module Trouble Codes on the 2016 Nissan Versa Note

Your 2016 Nissan Versa Note has documented module-internal trouble codes that indicate specific internal failures within the Powertrain Control Module. These codes point to hardware or software issues within the module itself rather than faults in external sensors or wiring.

Factory Service Bulletins Worth Knowing

Factory service bulletins for the 2016 Versa Note address PCM and ECM concerns including reprogramming updates for drivability issues and specific diagnostic procedures for module-related fault codes. Refer to Nissan service information for the most current applicable bulletins covering your vehicle.

Protecting the PCM in Your 2016 Nissan Versa Note

• Inspect battery terminals and cables regularly, cleaning any corrosion that could cause voltage fluctuations
• Verify all ground connections to the PCM and engine are secure and free of corrosion
• Avoid jump-starting from another vehicle when possible, as voltage spikes can damage sensitive electronics
• Address any check engine light codes promptly before they cascade into additional system failures
• Keep engine bay connector seals intact and periodically inspect for cracked or missing boots
• Use quality fuel and avoid running the tank extremely low, which can introduce contaminants to the fuel system

Frequently Asked Questions

Will a used PCM from a junkyard work in my 2016 Nissan Versa Note?

A used PCM from another vehicle will not work without expensive dealer programming to transfer your VIN and calibration data. Additionally, used units carry unknown wear and may have the same internal failure risk you are trying to avoid.

Can I drive my Versa Note with a failing PCM?

Driving with a compromised PCM is not recommended as failure can leave you stranded with no warning. If the module fails completely while driving, the engine may shut down and not restart.

How do I know if my Versa Note has a PCM problem versus a different component?

A qualified technician can diagnose PCM issues by checking for specific fault codes like P0605, verifying no-start conditions are not caused by fuel or spark failures, and confirming scan tool communication with the module.

What happens if I replace the PCM without programming the new unit?

An unprogrammed replacement PCM will not allow your Versa Note to start because it lacks your vehicle’s VIN and calibration data. The engine may crank but fuel and spark will not be delivered.

Is it worth replacing the PCM myself to save labor costs?

While the R&R procedure is straightforward for experienced DIYers, the required relearn procedure and potential for programming issues make professional replacement often worth the investment.

When your 2016 Nissan Versa Note requires a replacement Powertrain Control Module, you have two primary paths: purchasing a new unit from the dealer at significant cost, or choosing a professionally refurbished replacement that arrives VIN-programmed and ready to install. Refurbished units undergo rigorous testing to verify internal circuitry function before being programmed with your specific vehicle’s calibration data, providing a cost-effective solution without sacrificing reliability. Consider your budget, timeline, and comfort level with the replacement process when making your decision.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Nissan Versa Note with a lifetime warranty, free shipping and no core charge. The full Nissan Versa Note module lineup covers other engine configurations as well.

Final Thoughts

The Powertrain Control Module in your 2016 Nissan Versa Note is a critical component that manages your engine and transmission operation. When internal failure occurs, professional replacement with a VIN-programmed unit restores proper function without dealer programming delays. Protecting your investment through proper electrical maintenance and prompt attention to warning signs will help ensure reliable operation of your Versa Note for years to come.
