2016 Infiniti Q70 PCM Replacement: How to Restore Engine Control
The Powertrain Control Module (PCM) in the 2016 Infiniti Q70 manages fuel delivery, ignition timing, and engine‑sensor communication. A failure can lead to poor performance, misfires, or a dead diagnostic scan. Replacing the PCM restores proper engine coordination.
Quick Summary
- PCM controls fuel, timing, and sensor data in the Q70.
- A faulty PCM causes stalling, misfires, and start‑up problems.
- Replacement requires removal of the old module and re‑installation.
- After installation the PCM is factory‑programmed for the vehicle.
- Typical labor time for removal and relearn is under two hours.
You’ve likely noticed that your 2016 Infiniti Q70 suddenly stalls or runs rough after a brief drive. These symptoms often point to a malfunctioning Powertrain Control Module, the central brain that synchronizes fuel, ignition, and sensor inputs. By understanding what the PCM does, why it can fail, and how a replacement restores reliable performance, you can make an informed decision about repair versus refurbished options. This guide walks through the replacement process, the expected labor, and what to look for after the job is done.
What the PCM Does in a 2016 Infiniti Q70
The PCM in the 2016 Infiniti Q70 is a sophisticated computer that integrates data from the engine, transmission, and various sensors to produce precise fuel and ignition commands. It also interprets diagnostic trouble codes and communicates with the onboard diagnostic port. When the PCM fails, the engine may misfire, hesitate, or even refuse to start. Replacing the PCM can restore smooth operation and reset any fault codes that were causing the vehicle to hesitate. replacement engine computers for Q70 is often the next step when the module shows signs of electrical or mechanical failure.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module sits behind the passenger‑side dash, beneath the instrument panel. To replace it, the technician removes the dash trim, disconnects the battery, and then unscrews the module from its bracket. The replacement unit is installed in the same location and secured with the original mounting hardware. After installation, the technician reconnects the battery and completes a relearn procedure that takes roughly one hour. The total book time for removal, installation, and relearn is about 1.6 hours.

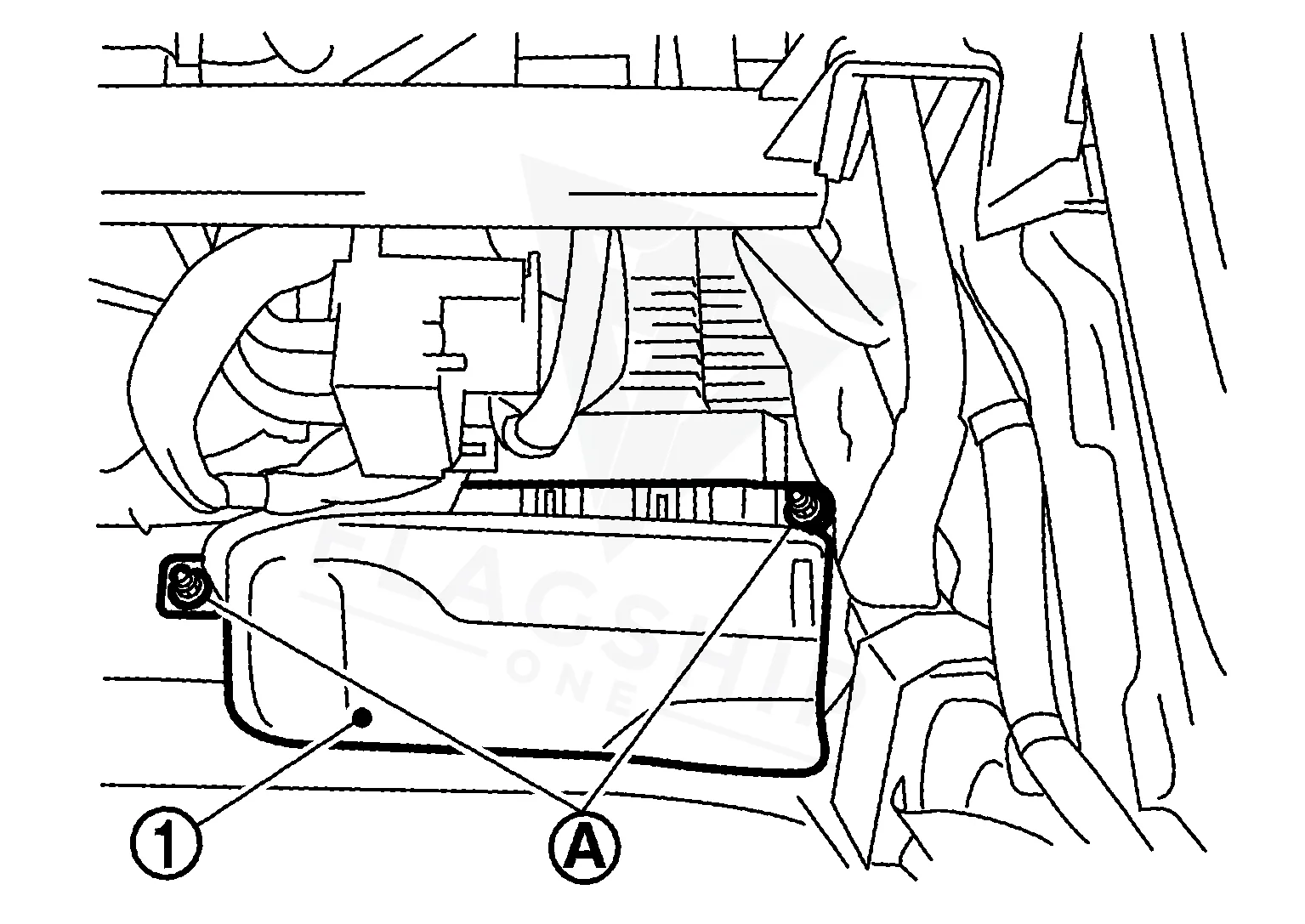

How to Reach the PCM on the 2016 Infiniti Q70
- Remove the instrument lower cover.
- Remove the dash side finisher (LH).
- Remove the ECM cover bolts and remove ECM cover.
- Disconnect ECM harness connectors.
- Remove ECM bracket bolt.
- Slide the ECM bracket upward and then remove ECM bracket with ECM.
- Remove ECM bracket bolts and separate ECM and ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | GAS | 1.9 hr |
| Engine Control Module R&R | All configurations | 1.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | GAS | 1.9 hr |
| Powertrain Control Module R&R | All configurations | 1.6 hr |
Programming Requirements After Replacement
Once the new PCM is installed, the vehicle’s factory software automatically loads the correct calibration for the specific VIN. Flagship One units arrive already VIN‑programmed, so the technician does not need to perform any additional programming steps. The relearn procedure, which normally requires a diagnostic tool, is still performed to ensure proper sensor calibration. a VIN-programmed replacement unit is therefore unnecessary for the vehicle’s post‑install calibration.
Symptoms of a Failing PCM
A 2016 Infiniti Q70 with a failing PCM may exhibit several tell‑tale signs. The engine might hesitate or stall during acceleration, the vehicle may have difficulty starting, or a misfire may trigger a diagnostic code. In some cases the scan tool will show a dead or weak signal, indicating communication failure between the PCM and the vehicle’s network. If you notice any of these symptoms, the PCM could be at fault. internal module error is often the code that appears in the diagnostic log when the module’s internal circuitry fails.
Module Trouble Codes on the 2016 Infiniti Q70
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2016 Infiniti Q70
- Keep the battery’s charging system in good condition to avoid voltage spikes.
- Inspect and clean all electrical connectors and grounds on the PCM.
- Use a properly rated jump‑starter to prevent sudden voltage surges.
- Address any diagnostic trouble codes promptly to avoid further damage.
- Check the connector seals for moisture or corrosion.
- Ensure the vehicle’s charging system is operating within spec.
Frequently Asked Questions
How long does a PCM replacement take on a 2016 Infiniti Q70?
The average labor time for removing, installing, and relearning a new PCM on the 2016 Infiniti Q70 is around 1.6 hours, depending on shop efficiency.
Will my 2016 Infiniti Q70’s PCM need reprogramming after replacement?
The PCM is factory‑programmed for the vehicle’s VIN, so no additional programming is required beyond the standard relearn procedure.
What are the most common symptoms of a failed PCM in the 2016 Infiniti Q70?
Common symptoms include stalling, misfires, hesitation, and a dead diagnostic port signal. A P0605 code often accompanies these issues.
Can I use a refurbished PCM instead of a brand‑new one?
A refurbished PCM can be a cost‑effective alternative, but it should be sourced from a reputable supplier that offers a warranty and has been tested for reliability.
Is the PCM replacement covered under warranty for a 2016 Infiniti Q70?
Warranty coverage depends on the original manufacturer’s terms and the age of the vehicle. It is best to check with the dealership or review the warranty documentation.
If your 2016 Infiniti Q70 shows signs of PCM trouble, you have a clear path forward. A professional repair can replace the module and restore performance, while a refurbished replacement offers a budget‑friendly alternative. Both options require the same installation steps and yield the same post‑install reliability for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Infiniti Q70 with a lifetime warranty, free shipping and no core charge. The full Infiniti Q70 module lineup covers other engine configurations as well.
Final Thoughts
For the 2016 Infiniti Q70, a reliable PCM replacement can bring your vehicle back to its original performance. Consider your options and choose the solution that best fits your needs and budget.
