2016 Hyundai Santa Fe Sport ECM Replacement Overview
The Engine Control Module in a 2016 Hyundai Santa Fe Sport directs fuel injection, ignition timing, and transmission shifts. Failure can trigger engine misfires, loss of power, or communication errors with the vehicle’s diagnostics system.
Quick Summary
- ECM removal requires 0.6 hours of labor.
- ECM relearn takes 0.5 hours.
- ECM reset takes 0.3 hours.
- Replacement involves accessing the module next to the air cleaner assembly.
- Tightening bolts and nuts to 9.8 ~ 11.8 N·m is necessary.
If your 2016 Hyundai Santa Fe Sport is experiencing erratic engine behavior or diagnostic trouble codes, the Engine Control Module may be the culprit. Understanding how this component functions, where it sits, and the steps required for a proper replacement can save you time and prevent future failures. This guide explains each stage of the process and highlights key takeaways for a reliable repair.
What the PCM Does in a 2016 Hyundai Santa Fe Sport
The Engine Control Module controls fuel injection timing, ignition spark, and transmission shift logic in the 2016 Hyundai Santa Fe Sport. replacement engine computers for the 2016 Hyundai Santa Fe Sport It ensures smooth power delivery and maintains emissions compliance. A malfunction can result in stalling, reduced performance, or erratic shift behavior, making it a critical element of the vehicle’s operation.
Where the PCM Is Located and What Replacement Involves

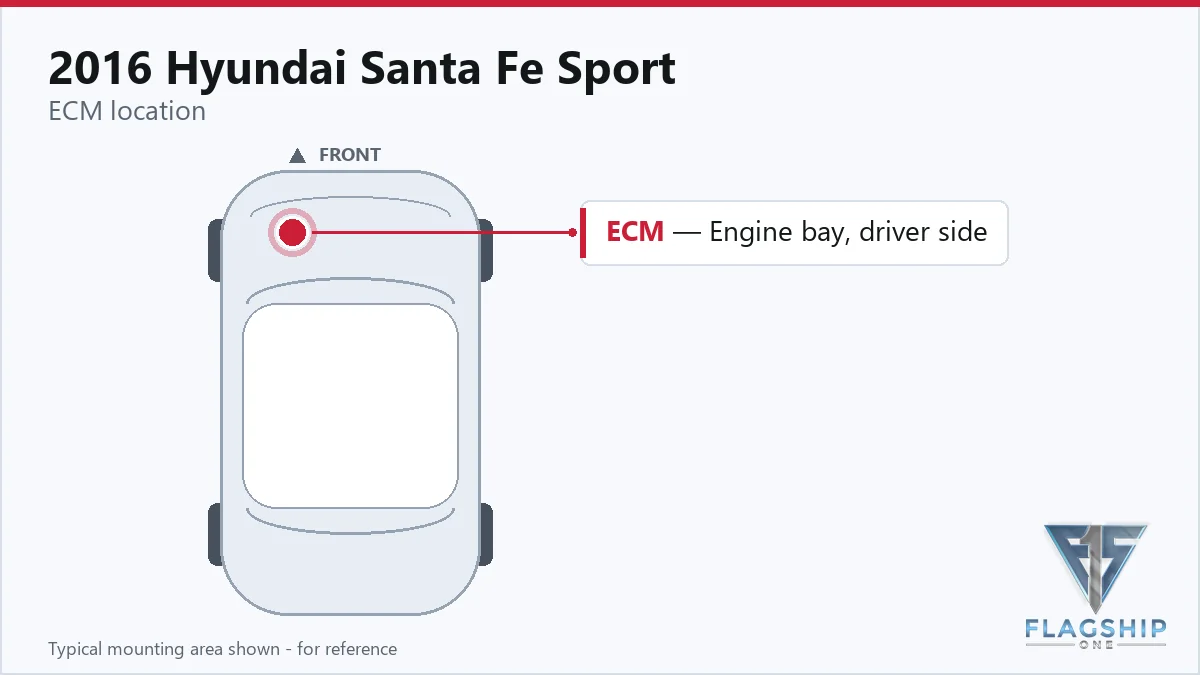

The ECM is located adjacent to the air cleaner assembly. Removal follows the factory procedure, which requires 0.6 hours of labor. After removal, the new module is installed and secured with bolts and nuts tightened to 9.8 ~ 11.8 N·m. The process takes approximately 0.6 hours for the initial removal and another 0.6 hours for installation, with relearn and reset steps of 0.5 and 0.3 hours respectively.
How to Reach the PCM on the 2016 Hyundai Santa Fe Sport
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the battery.
- Remove the air cleaner assembly.
- Remove the mounting bolts and nut, and then remove the ECM.
- After romoving the installation nuts and screws, romove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Following installation, the factory procedure requires the VIN to be written into the new ECM. Flagship One units arrive already VIN‑programmed, so that step is already completed. The replacement unit is a VIN‑programmed replacement unit that eliminates the need for additional programming work.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical symptoms of a failing ECM in the 2016 Hyundai Santa Fe Sport include engine misfires, stalling, or a dead scan‑tool connection. If the code P0605 appears, it indicates an internal fault within the module. Other signs may be loss of power or erratic shifting, especially during acceleration.
Module Trouble Codes on the 2016 Hyundai Santa Fe Sport
The following internal trouble codes are associated with the ECM in the 2016 Hyundai Santa Fe Sport:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
TSB #04-36-019 addresses ECM and PCM VIN writing during control module replacement for 2005 models. TSB 16-FL-004 covers DTC P0171/P0420 ECM updates and P0420 catalyst replacement. TSB 15-GI-001 outlines the ECU update procedure for tablet‑based GDS mobile devices.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
| — | TSB • Fuel System • [16-FL-004] DTC P0171/P0420 ECM UPDATE AND P0420 CATALYST REPLACEMENT | — |
| — | TSB • General Information • [15-GI-001] ECU UPDATE PROCEDURE FOR TABLET-BASED GDS MOBILE | — |
Protecting the PCM in Your 2016 Hyundai Santa Fe Sport
- Keep the vehicle’s charging system in good condition to protect the ECM.
- Ensure all connectors and grounds remain clean and free of corrosion.
- Avoid using jump‑starters that may produce voltage spikes.
- Address diagnostic trouble codes promptly to prevent deeper issues.
- Maintain proper sealing on connector covers to prevent moisture ingress.
