2015 Hyundai Santa Fe Sport ECM & PCM Repair Guide
In the 2015 Hyundai Santa Fe Sport, the engine control module (ECM) and powertrain control module (PCM) manage fuel delivery, ignition timing and transmission shifting. A malfunction can interrupt these commands, leading to drivability issues or loss of communication with diagnostic tools.
Quick Summary
- Removal typically requires 0.6 hours for each module according to the labor guide.
- Factory torque for ECM bolts and nuts is specified between 9.8 and 11.8 N·m.
- VIN programming is required after any ECM replacement.
- P0605 is a documented internal fault code for this vehicle.
When a 2015 Hyundai Santa Fe Sport experiences symptoms like rough idle, unexpected stalls, or loss of powertrain control, the engine and powertrain control modules are often examined first. Understanding how these computers function, where they sit, and what steps are needed after replacement can help you avoid unnecessary downtime. This guide outlines the key facts you need to replace or refurbish the modules safely and correctly.
What the PCM Does in a 2015 Hyundai Santa Fe Sport
The ECM and PCM in the 2015 Santa Fe Sport act as the vehicle’s brain, processing sensor data to regulate fuel injection, spark timing and transmission shift points. Accurate control is vital for emissions compliance and smooth operation. Proper operation ensures the engine runs at the intended efficiency and the transmission shifts at the correct intervals. replacement ECMs for Santa Fe Sport are designed to meet these exacting standards.
Where the PCM Is Located and What Replacement Involves

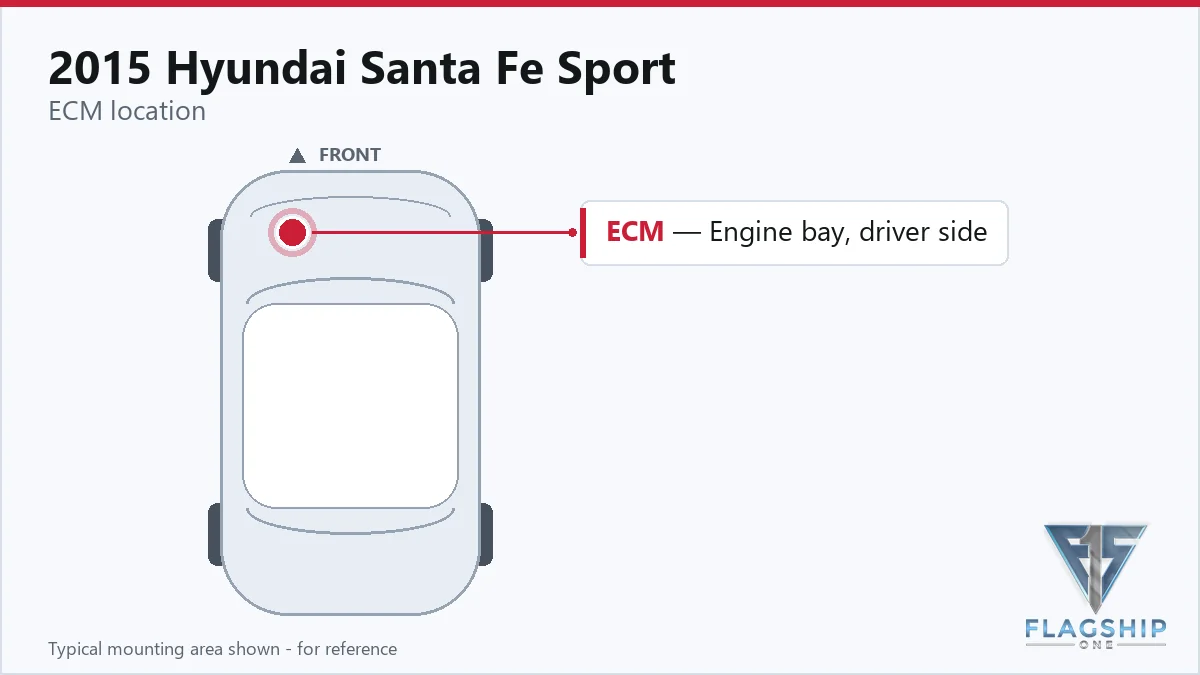

The factory removal procedure indicates that the control module is positioned next to the air cleaner assembly, making it accessible from the engine bay. Removing the ECM or PCM typically follows a book time of 0.6 hours, while reinstalling requires the same duration. During installation, bolts and nuts should be tightened to a range of 9.8 to 11.8 N·m to secure the unit without over‑stress. The same torque specification applies to both modules, ensuring consistent mounting.
How to Reach the PCM on the 2015 Hyundai Santa Fe Sport
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the battery.
- Remove the air cleaner assembly.
- Remove the mounting bolts and nut, and then remove the ECM.
- After romoving the installation nuts and screws, romove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the physical installation of a new ECM, the factory process calls for programming the vehicle identification number into the module to complete the repair. Flagship One supplies units that arrive already VIN‑programmed, so this step is already satisfied when you install the replacement. a VIN-programmed replacement unit eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
A failing ECM or PCM in a 2015 Santa Fe Sport may cause the engine to refuse to start, exhibit intermittent stalling, or produce a misfire condition that triggers diagnostic trouble codes. You might also notice transmission shift delays or a complete loss of communication with a scan tool. When the internal fault P0605 internal control module error appears, it points directly to a problem inside the module itself.
Module Trouble Codes on the 2015 Hyundai Santa Fe Sport
The following internal trouble code is reported for the 2015 Hyundai Santa Fe Sport:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this model include #04-36-019 addressing VIN writing during control module replacement, TSB 16-FL-004 covering DTC P0171/P0420 updates and catalyst replacement, and TSB 15-GI-001 detailing an ECU update procedure using tablet‑based GDS Mobile.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
| — | TSB • Fuel System • [16-FL-004] DTC P0171/P0420 ECM UPDATE AND P0420 CATALYST REPLACEMENT | — |
| — | TSB • General Information • [15-GI-001] ECU UPDATE PROCEDURE FOR TABLET-BASED GDS MOBILE | — |
Protecting the PCM in Your 2015 Hyundai Santa Fe Sport
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections and module connectors regularly.
- Prevent jump‑start spikes by using proper surge‑protective equipment.
- Address diagnostic codes promptly to prevent further module stress.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the typical labor times for removing the ECM in a 2015 Hyundai Santa Fe Sport?
The factory labor guide lists 0.6 hours for removing the engine control module and the same amount for reinstalling it.
Do I need special tools to torque the ECM bolts on a 2015 Santa Fe Sport?
A torque wrench set to between 9.8 and 11.8 N·m is recommended to achieve the correct fastening pressure.
Is VIN programming required after installing a new ECM in my Santa Fe Sport?
Yes, the vehicle identification number must be programmed into the ECM after replacement, but Flagship One units arrive pre‑programmed.
When the ECM or PCM fails, you can choose to have the module repaired or replace it with a refurbished unit. Both options restore the vehicle’s control functions, but a refurbished replacement from Flagship One offers the advantage of factory‑level VIN programming already completed.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Hyundai Santa Fe Sport with a lifetime warranty, free shipping and no core charge. The full Hyundai Santa Fe Sport module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2015 Hyundai Santa Fe Sport, addressing ECM or PCM issues promptly helps maintain performance and reliability. Consider a qualified repair or a Flagship One refurbished module to get back on the road with confidence.
