2016 Hyundai Santa Fe 3.3L ECM Replacement & Common Failure Signs
The Engine Control Module (ECM) in your 2016 Hyundai Santa Fe 3.3L acts as the vehicle’s central computer, managing fuel delivery, ignition timing, and emissions systems. Failures may trigger performance issues like rough idling, reduced power, or complete engine shutdown.
Quick Summary
- Factory labor for ECM removal and installation is typically 0.6 hours
- A relearn procedure adds 0.5 hours to ensure proper calibration
- The ECM is located near the air cleaner assembly for easier access
- Replacement requires VIN programming to match the vehicle’s identity
- Common symptoms include stalling, no-start conditions, or stored trouble codes
If your 2016 Hyundai Santa Fe 3.3L has been experiencing unexplained stalling, difficulty starting, or an illuminated check-engine light, the Engine Control Module (ECM) may be at fault. This critical component oversees engine performance by regulating fuel, ignition, and emissions systems. When it malfunctions, your vehicle’s drivability and efficiency can suffer. Understanding the role of the ECM, where it’s located, and what replacement involves helps you make informed decisions about repairs. You’ll also learn how to recognize failure symptoms early and what steps the factory requires after installation to keep your Santa Fe running smoothly.
What the PCM Does in a 2016 Hyundai Santa Fe
The Engine Control Module in your 2016 Hyundai Santa Fe 3.3L serves as the brain of the engine, continuously adjusting fuel injection, ignition timing, and emissions controls to optimize performance. It processes data from sensors throughout the vehicle to maintain efficiency and reduce harmful emissions. A faulty ECM may disrupt these functions, leading to poor fuel economy, rough idling, or even a no-start condition. Replacing the module involves installing one of the replacement engine computers for the Santa Fe to restore proper operation. Without a functioning ECM, your vehicle may fail to meet emissions standards or struggle with basic drivability.
Where the PCM Is Located and What Replacement Involves

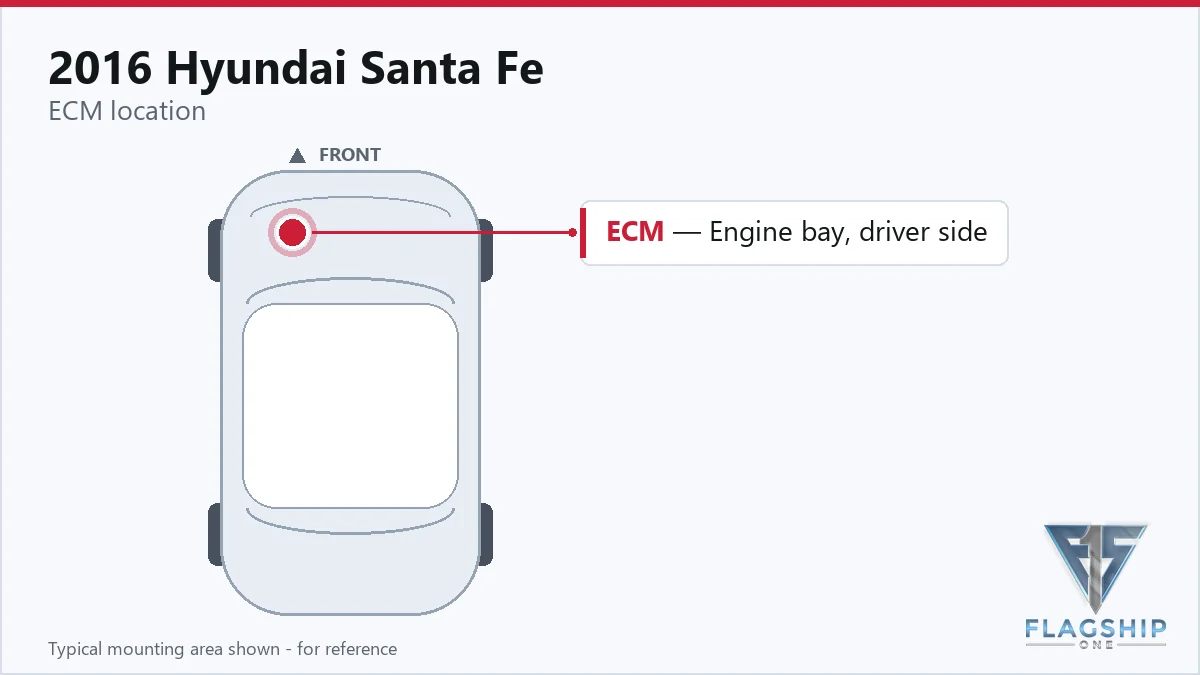

In the 2016 Hyundai Santa Fe 3.3L, the ECM is positioned next to the air cleaner assembly, making it relatively accessible for replacement. The factory procedure involves removing the module, which typically requires 0.6 hours of labor. After installation, the new ECM must be secured with nuts or bolts tightened to 9.8 ~ 11.8 N·m to ensure a stable connection. A relearn process, taking an additional 0.5 hours, is often necessary to synchronize the module with the vehicle’s systems. If only a reset is needed, labor time may be as low as 0.3 hours.
How to Reach the PCM on the 2016 Hyundai Santa Fe
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the cover.
- Disconnect the ECM connector.
- Remove the battery tray.
- Remove the ECM bracket installation bolts and nut.
- Remove the air cleaner assembly.
- After removing the installation bolts, remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2016 Hyundai Santa Fe 3.3L, the factory procedure requires programming the vehicle’s VIN into the module to ensure proper communication with other systems. This step is critical for avoiding drivability issues or emissions failures. Flagship One units arrive as a VIN-programmed replacement unit, eliminating the need for this additional programming step. This saves time and reduces the risk of errors during installation, allowing your vehicle to return to normal operation more quickly.
Symptoms of a Failing PCM
A failing ECM in your 2016 Hyundai Santa Fe 3.3L may cause a range of symptoms, including intermittent stalling, difficulty starting, or an illuminated check-engine light. You might also notice poor acceleration, rough idling, or reduced fuel efficiency. In some cases, the vehicle may enter a failsafe mode, limiting engine power to prevent damage. If the module loses communication with the scan tool, diagnostics become challenging. One documented fault for this vehicle is an internal control module memory error, which often indicates a need for replacement or reprogramming.
Module Trouble Codes on the 2016 Hyundai Santa Fe
The 2016 Hyundai Santa Fe 3.3L ECM may store specific trouble codes when internal faults occur. These codes help identify issues requiring attention, such as memory errors or communication failures.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Hyundai has issued several service bulletins related to the ECM in the 2016 Santa Fe 3.3L. One bulletin (15-FL-001) addresses fuel system updates to resolve check-engine lights triggered by codes P2096 or P2098. Another (04-36-019) outlines the correct procedure for writing the VIN during control module replacement. Additionally, bulletin 15-GI-001 provides guidance on using tablet-based GDS Mobile for ECM updates. These bulletins highlight common issues and factory-recommended solutions to ensure proper module function.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Fuel System • [15-FL-001] ECM UPDATE – SANTA FE 3.3L MIL ON (DTC P2096/P2098) | — |
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
| — | TSB • General Information • [15-GI-001] ECU UPDATE PROCEDURE FOR TABLET-BASED GDS MOBILE | — |
Protecting the PCM in Your 2016 Hyundai Santa Fe
- Maintain a healthy charging system to avoid voltage spikes that may damage the ECM
- Ensure all electrical grounds and connectors are clean and securely fastened
- Avoid jump-starting the vehicle with improper voltage to prevent module failure
- Address check-engine lights or trouble codes promptly to prevent further damage
- Keep the ECM connector and seals intact to protect against moisture and corrosion
- Use a battery maintainer during long periods of inactivity to preserve module health
Frequently Asked Questions
How do I know if my 2016 Hyundai Santa Fe 3.3L ECM is failing?
Common signs include stalling, no-start conditions, or an illuminated check-engine light. You may also experience rough idling, poor acceleration, or stored trouble codes like P0605. A scan tool can help confirm ECM-related faults.
What is the labor time for replacing the ECM in my Santa Fe?
Factory labor for ECM removal and installation is typically 0.6 hours. A relearn procedure adds 0.5 hours, while a simple reset may take 0.3 hours. These times may vary based on shop rates and additional diagnostics.
Does the ECM in my 2016 Santa Fe 3.3L need programming after replacement?
Yes, the factory procedure requires programming the VIN into the new ECM. This step ensures proper communication with the vehicle’s systems. Pre-programmed units eliminate this step, saving time and reducing installation complexity.
When your 2016 Hyundai Santa Fe 3.3L requires an ECM replacement, you have options. A repair may address minor issues, but a refurbished or new module often provides a more reliable long-term solution. Given the labor and programming requirements, choosing a unit that arrives ready for installation can simplify the process and reduce downtime. Consider the benefits of a model-specific replacement to restore your vehicle’s performance efficiently.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Hyundai Santa Fe with a lifetime warranty, free shipping and no core charge. The full Hyundai Santa Fe module lineup covers other engine configurations as well.
Final Thoughts
The 2016 Hyundai Santa Fe 3.3L relies on its ECM to manage critical engine functions, and a failing module can disrupt daily driving. Recognizing symptoms early and understanding the replacement process helps you make informed decisions. Whether you opt for a repair or a replacement, addressing ECM issues promptly ensures your Santa Fe remains dependable on the road.
