2016 Chevrolet Malibu Limited ECM & PCM Replacement Guide
In the 2016 Chevrolet Malibu Limited, the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage fuel injection, ignition timing, and transmission shifting. Failure of either unit may disrupt engine operation, trigger multiple diagnostic codes, and prevent the vehicle from starting or running smoothly.
Quick Summary
- ECM and PCM removal each require about six‑tenths of an hour of labor.
- Relearn procedures after replacement add roughly half an hour per module.
- Factory caution advises the ignition be off when disconnecting ECM connectors.
- Programming may involve inputting the engine identification number.
When a 2016 Chevrolet Malibu Limited exhibits symptoms like stalling, loss of power, or a cascade of diagnostic trouble codes, the engine and powertrain control modules are often suspects. This guide explains what the ECM and PCM do in this model, how to locate and replace them, and what post‑install steps are required. By following the outlined procedures, you can understand the work involved and make an informed decision about repair or replacement.
What the PCM Does in a 2016 Chevrolet Malibu Limited
The Engine Control Module in a 2016 Chevrolet Malibu Limited monitors sensor data and directs fuel delivery, spark timing, and emissions controls, while the Powertrain Control Module coordinates transmission shift points and torque management. Both modules are essential for smooth acceleration and fuel efficiency, and any malfunction can cause drivability issues. Understanding their role helps you assess the impact of a failure and why proper replacement is critical. Malibu ECM replacements ensure the vehicle returns to normal operation.

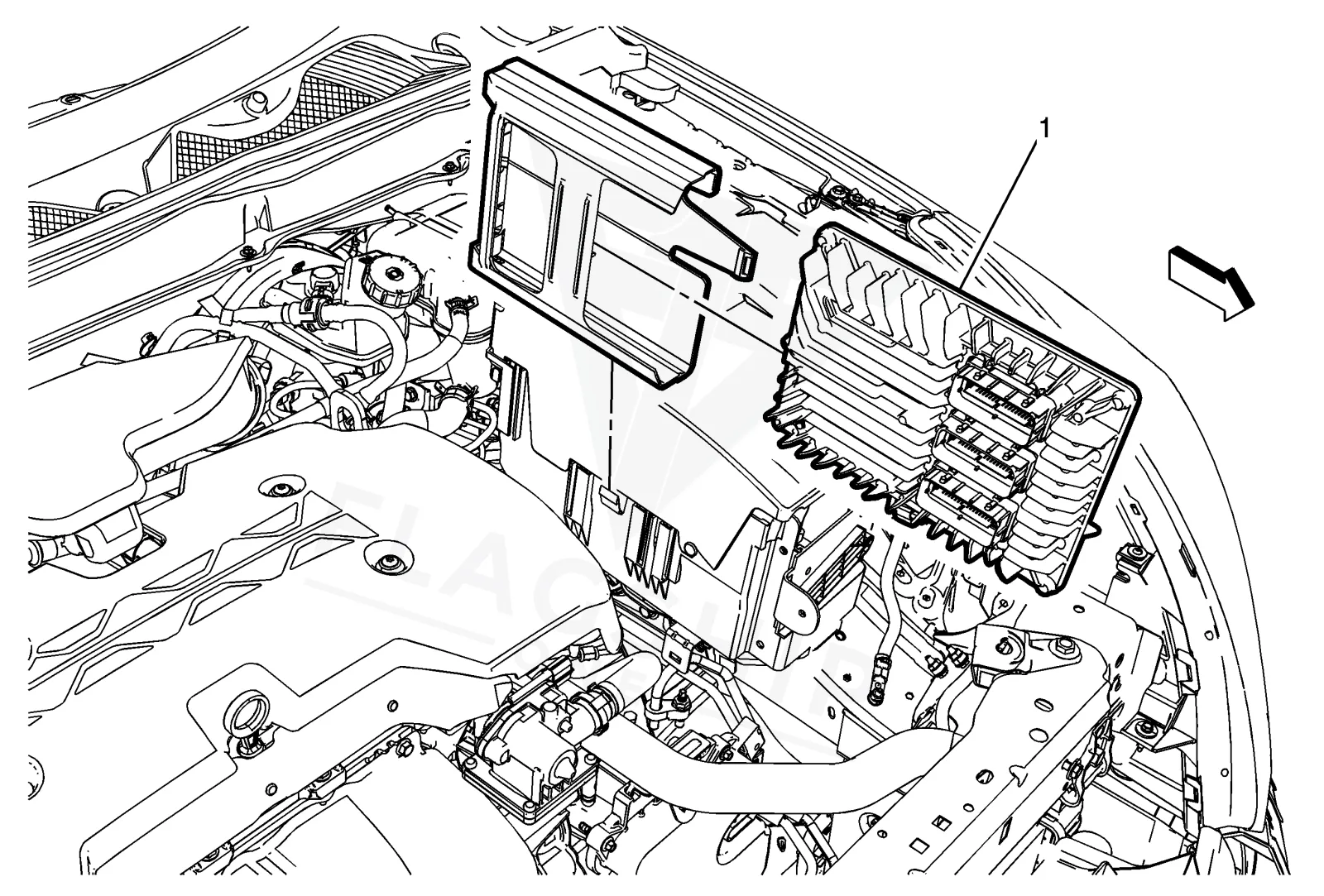

Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM are mounted within the engine compartment, accessible without removing major components. Removing each unit typically takes six‑tenths of an hour according to the factory labor guide. After extraction, a relearn routine of half an hour is needed for each module to synchronize with the vehicle’s control network. The factory caution emphasizes that the ignition must be turned off before disconnecting any ECM connectors to avoid damage.
How to Reach the PCM on the 2016 Chevrolet Malibu Limited
- Disconnect the negative battery cable.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
- Release the retaining tab.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM or PCM, the factory procedure calls for a specific relearn and, in some cases, entering the engine identification number. Flagship One supplies units that arrive pre‑programmed, so those steps are already completed. a VIN-programmed replacement unit eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in the Malibu include a no‑start condition, rough idle, unexpected stalling, and transmission shift irregularities. You may also see a loss of communication with scan tools, and multiple fault codes can appear simultaneously. One common fault is processor fault, which indicates a problem with the module’s internal processor.
Module Trouble Codes on the 2016 Chevrolet Malibu Limited
The following diagnostic trouble codes are documented for the 2016 Chevrolet Malibu Limited’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060A | Module-internal fault | — |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin PIP5373B, dated June 11, 2018, addresses programming errors E4491 and E4423 in the ECM. Bulletin PIP5597, dated October 8, 2018, notes that technicians may be prompted to input the engine identification number during ECM programming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Engine identification Number Requested When Programming ECM – (Oct 8, 2018) | During the programming of some ECM’s, the technician may be prompted to input the engine identification |
Protecting the PCM in Your 2016 Chevrolet Malibu Limited
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep all ground connections and module connectors clean and tight.
- Avoid jump‑starting the vehicle, which can introduce voltage spikes.
- Promptly address any stored diagnostic codes before they worsen.
- Inspect connector seals regularly to prevent moisture intrusion.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2016 Chevrolet Malibu Limited?
The factory book lists about six‑tenths of an hour for removal and installation, plus an additional half hour for the relearn procedure.
Do I need special tools to program the new PCM in my Malibu?
Factory guidelines require the EL‑49642 SPS programming support tool, but a VIN‑programmed replacement from Flagship One removes that requirement.
Can a faulty ECM cause transmission shift problems in this model?
Yes, because the ECM and PCM work together to manage engine and transmission functions, a malfunction can affect shift timing and smoothness.
When the ECM or PCM in your 2016 Chevrolet Malibu Limited needs attention, you can choose a factory‑approved repair or consider a refurbished replacement. Both options aim to restore reliable engine and transmission control, and understanding the labor and programming steps helps you weigh cost versus downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Chevrolet Malibu Limited with a lifetime warranty, free shipping and no core charge. The full Chevrolet Malibu Limited module lineup covers other engine configurations as well.
Final Thoughts
For the 2016 Chevrolet Malibu Limited, addressing ECM or PCM issues promptly can prevent further drivability problems. Evaluate repair versus replacement based on your vehicle’s condition and choose the path that best fits your needs.
